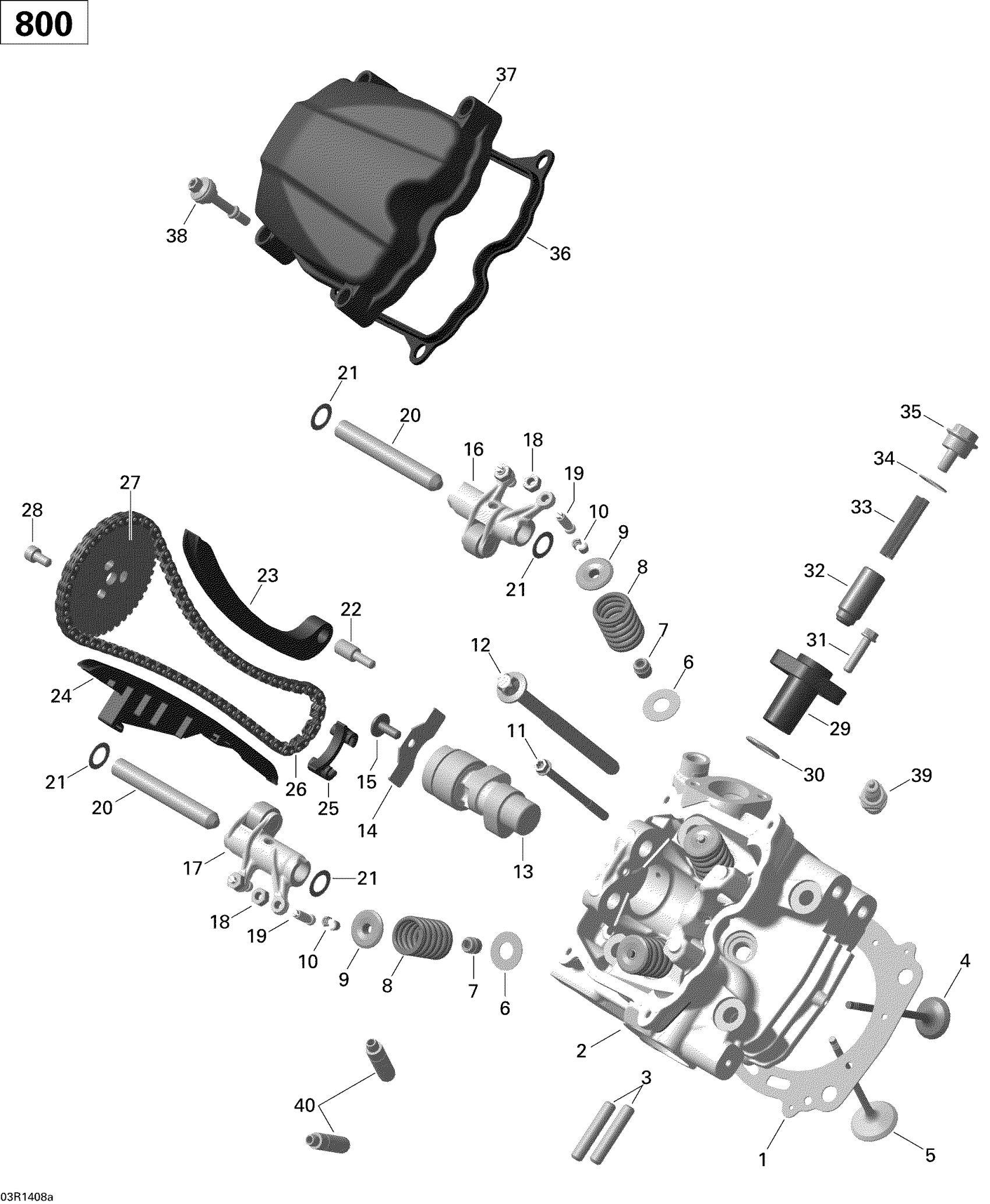

Can-Am Renegade 800R EFI STD & XXC, 2014 Cylinder Head, Front Diagram

#

Description
Price

1

Cylinder Head Gasket | 400HO

420630195

$77.89

2

Cylinder Head | Includes 2a to 3

420623941

$689.97

3

Stud M8 x 26

420941014

$10.58

4

Exhaust Valve 27MM

420254368

$68.39

5

Intake Valve 31MM

420254359

$35.35

6

Thrust Washer

420627525

$1.50

7

Valve Stem Seal

420230515

$11.87

8

Valve Spring

420239295

$13.58

9

Valve Spring Retainer

420254132

$13.58

10

Cotter Valve

420254120

$4.00

11

Torx Flange Screw M6 X 85

420641228

$6.11

12

Torx Screw M10X140

420641551

$13.58

13

Camshaft

420620866

$170.74

14

Holding Strip

420627743

$17.66

15

Torx Screw M6 X 16

420241529

$1.56

16

Inlet Rocker Arm

420254907

$138.43

17

Exhaust Rocker Arm

420254911

$141.51

18

Hex Nut M6

420242913

$0.52

19

Adjustment Screw M6 X 0.75

420241337

$4.89

20

Pin #12, Small, M6 X 90

420229712

$15.35

21

Shim

420944382

$4.00

22

Bearing Screw M6

420240943

$4.29

23

Chain Tension Guide

420436015

$23.82

24

Chain Guide

420236584

$7.31

25

Chain Guide

420236351

$14.12

26

Silent Chain

420297063

$63.64

27

Timing Gear 42T

420254438

$17.57

28

Allen Screw M6 X 12

420840032

$3.61

29

Chain Tensioner Housing

420236510

$11.09

30

O-Ring

420430373

$2.63

31

Torx Flange Screw M6 X 25

420641238

$2.68

32

Chain Tensioner Plunger

420236521

$14.48

33

Spring

420238120

$7.23

34

O-Ring

420250890

$2.50

35

Plug Screw

420641150

$7.23

36

Gasket

420630260

$8.34

37

Valve Cover

420610393

$26.12

38

Hex Screw M6 X 30

420440568

$7.10

39

Spark Plug, NGK DCP-R8E

715900637

$5.66

40

Valve Guide

420254374

$28.99
