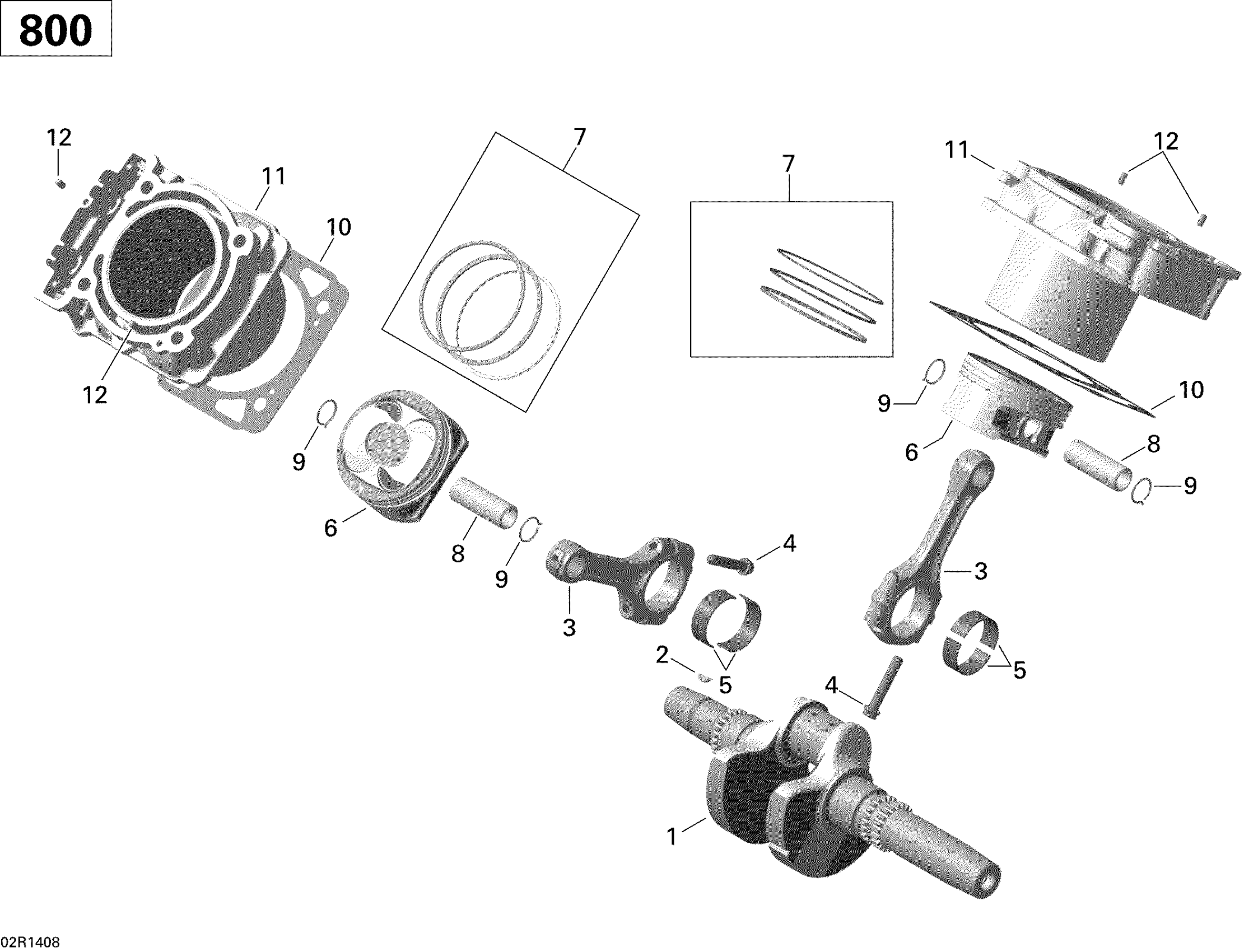

Can-Am Renegade 800R EFI STD & XXC, 2014 Crankshaft, Piston And Cylinder Diagram

#

Description

Price

1

Crankshaft Ass'y

420219746

$628.49

2

Woodruff Key 4 X 5

420246570

$3.49

3

Connecting Rod Ass’y | Includes 3 to 4

420217425

$234.99

4

Connecting Rod Screw M8 X 1

420641645

$14.49

5

Plain Bearing 40 X 43 X 15

420233980

$28.49

6

Piston Ass'y, 90.958 mm | 400HO / Includes 7 to 8

420685714

$164.99

6

Piston Ass'y, Oversize, 91.208 mm | Includes 7 to 8

420296776

$164.99

7

Piston Ring Set | 400HO

420296774

$81.99

8

Piston Pin

420216270

$26.99

9

Piston Circlip

420845107

$4.99

10

Gasket

420630210

$12.99

11

Cylinder With Sleeve

420413434

$469.99

12

Drive Pin 5 X 10

420929650

$1.69
