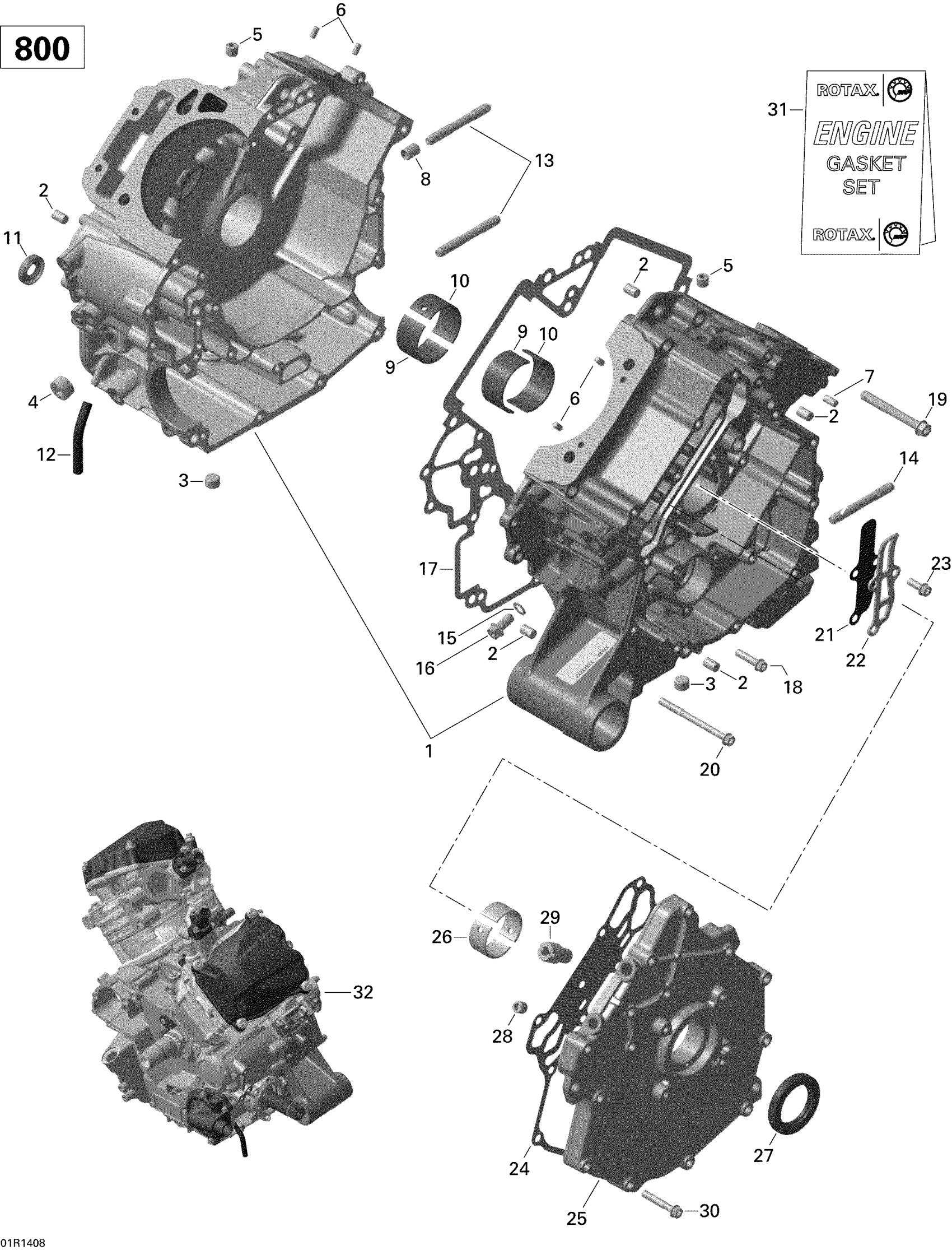

Can-Am Renegade 800R EFI STD & XXC, 2014 Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 12

420685253

$1,150.49

2

Center Pin 8 X 12

420632010

$4.09

3

Plug Screw M12x1,5

420840658

$7.69

4

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

$7.59

5

Plug Screw M10 X 1

420641323

$14.49

6

Drive Pin 5 X 10

420929650

$1.69

7

Needle Pin

420932780

$7.59

8

Dowel Pin 10 X 13

420929670

$11.49

9

Plain Bearing

420233960

$23.99

10

Plain Bearing

420233965

$23.99

11

Oil Seal

420650315

$11.99

12

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$124.99

13

Stud

420240816

$7.09

14

Stud

420241019

$3.24

15

Sealing Ring

420950141

$2.09

16

Torx Flange Screw M8 X 16

420440852

$4.19

17

Gasket

420651227

$31.99

18

Torx Flange Screw M6 X 25

420641238

$3.39

19

Torx Flange Screw M8 X 65

420440402

$7.59

20

Torx Flange Screw M6 X 75

420440657

$4.49

21

Reed Valve

420224721

$19.49

22

Reed Valve Stop

420224725

$11.99

23

Torx Flange Screw M6 X 16

420641048

$2.99

24

Gasket

420651211

$27.99

25

PTO Cover Ass'y | Includes 25a to 29

420612335

$280.99

26

Bearing Sleeve

420233995

$20.99

27

Oil Seal

420631933

$28.99

28

Plug Screw M10 X 1

420641323

$14.49

29

Hose Nipple

420256332

$17.49

30

Torx Flange Screw M6 X 35

420641258

$3.49

31

Gasket Kit, Engine

420684165

$402.49

32

Long Block

420081022

$3,887.99
