01- Exhaust System

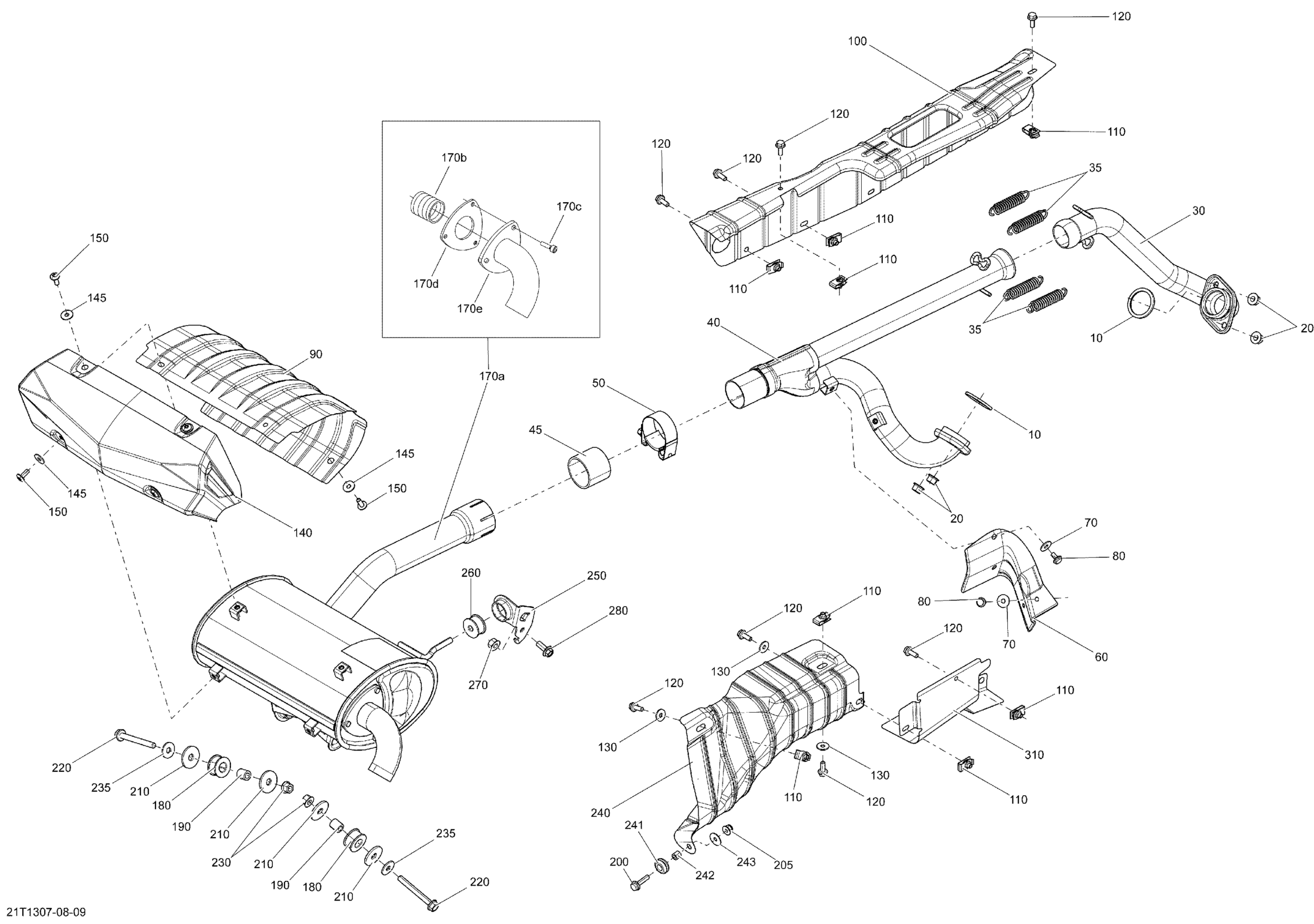

Can-Am Renegade 800R EFI STD & XXC, 2013 01- Exhaust System Diagram
#
10
Gasket
707600317
Unavailable
20
Hex. Flange Nut M8
233081416
Unavailable
30
Front Head Pipe
707600764
Unavailable
35
Spring
415107100
Unavailable
40
Rear Head Pipe
707601446
Unavailable
45
Pipe Gasket
707601544
Unavailable
50
Norma Gear Clamp
293650177
Unavailable
60
Pipe Protector
707600932
Unavailable
70
Flat Washer
250200082
Unavailable
80
Hex. Flange Screw M6 X 12
250000574
Unavailable
90
Heat Deflector
707600737
Unavailable
100
Heat Shield
707603724
Unavailable
110
Panel Nut M6 X 1.0
250100198
Unavailable
120
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
130
Flat Washer 6 mm
234062410
Unavailable
140
Heat Deflector
707600738
Unavailable
145
Stainless Steel Flat Washer
234062670
Unavailable
150
Torx Screw M6 X 16
250000223
Unavailable
170a
Muffler | Includes 18a to 18e
707600748
Unavailable
170a
Muffler | Europe, Includes 18a to 18e
707600749
Unavailable
170b
Spark Arrestor
707601803
Unavailable
170c
Socket Head Screw M6 X 20
205062060
Unavailable
170d
Gasket
707601799
Unavailable
170e
MUFFLER END PIECE - Call your local BRP dealership
715900144
Unavailable
180
Vibration Damper
707603323
Unavailable
190
Bushing
293900106
Unavailable
200
Hex. Flange Screw M6 X 25
207662534
Unavailable
205
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
210
Washer
503032900
Unavailable
220
Hex. Flange Screw M8 X 70
207687044
Unavailable
230
Hex. Flange Nut M8
233081416
Unavailable
235
Flat Washer 8 mm
234082410
Unavailable
240
Protector Kit
703500816
Unavailable
241
Grommet
709000582
Unavailable
242
Bushing
293900105
Unavailable
243
Flat Washer
224060201
Unavailable
250
Support
707600933
Unavailable
260
Anti-Vibration Rubber
707600702
Unavailable
270
Hex. Flange Elastic Nut M8
233281414
Unavailable
280
Hex. Flange Screw
207682034
Unavailable
310
HEAT DEFLECTOR - Call your local BRP dealership
707600983
Unavailable
