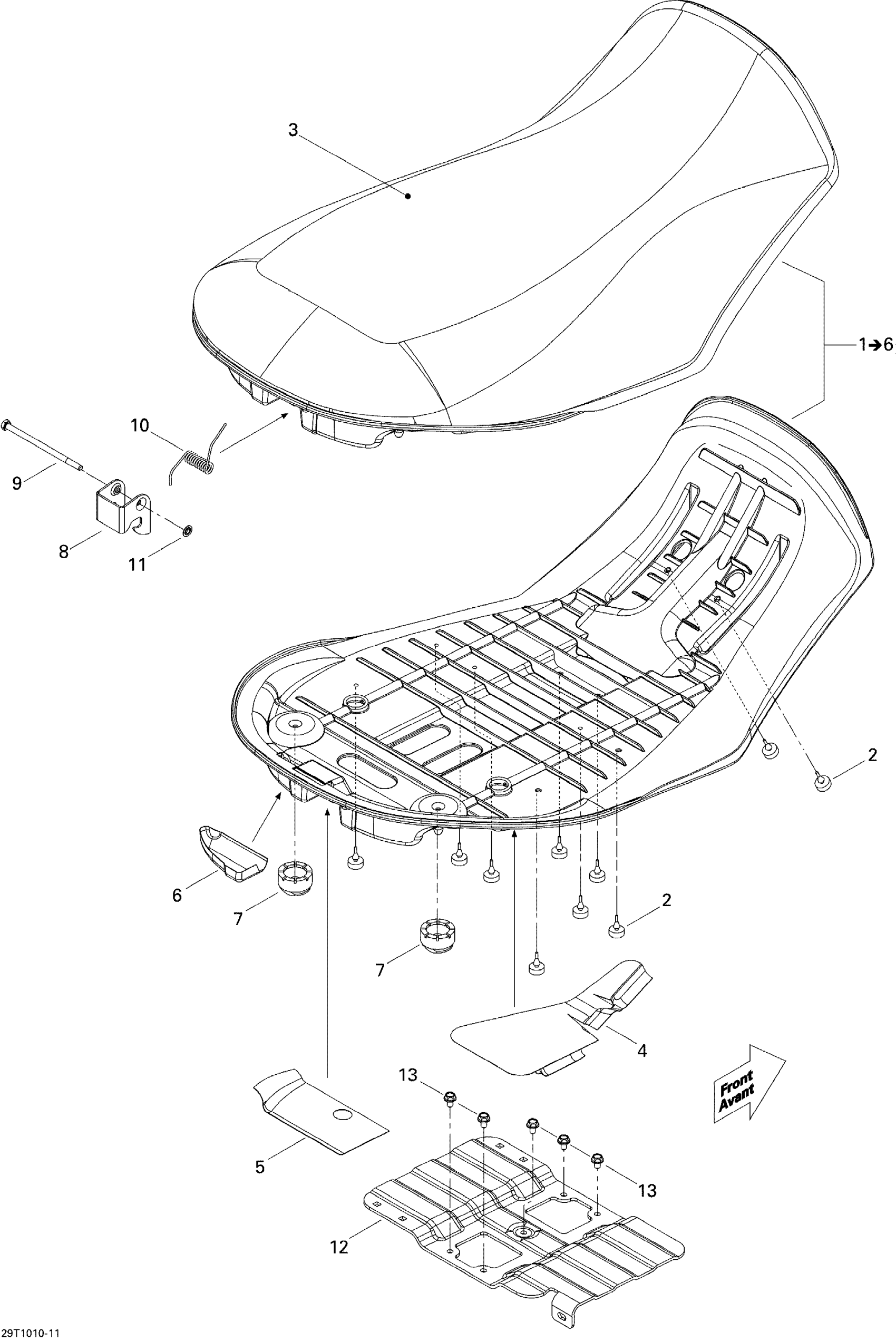

Can-Am Renegade 800R EFI STD, 2010 Seat Diagram

#

Description
Price

1

SEAT ASS'Y - Call your local BRP dealership | Includes 1 to 3

715500325

Unavailable

2

Rubber Stopper

708000759

$4.15

3

SEAT COVER - Call your local BRP dealership

708000593

Unavailable

4

REFLECTING SHEET - Call your local BRP dealership

708000956

Unavailable

5

REFLECTING SHEET - Call your local BRP dealership

708000470

Unavailable

6

HEAT SHIELD - Call your local BRP dealership

708000957

Unavailable

7

Bumper Rubber

708000760

$8.84

8

Latch, Black

708000144

$10.76

9

Hex. Screw M6 X 110

230061034

$2.00

10

Spring

708000369

$8.34

11

Push Nut

732610072

$1.97

12

Seat Reinforcement

708000629

$30.57

13

Hex. Flange Screw M6 X 12

210261250

$1.79
