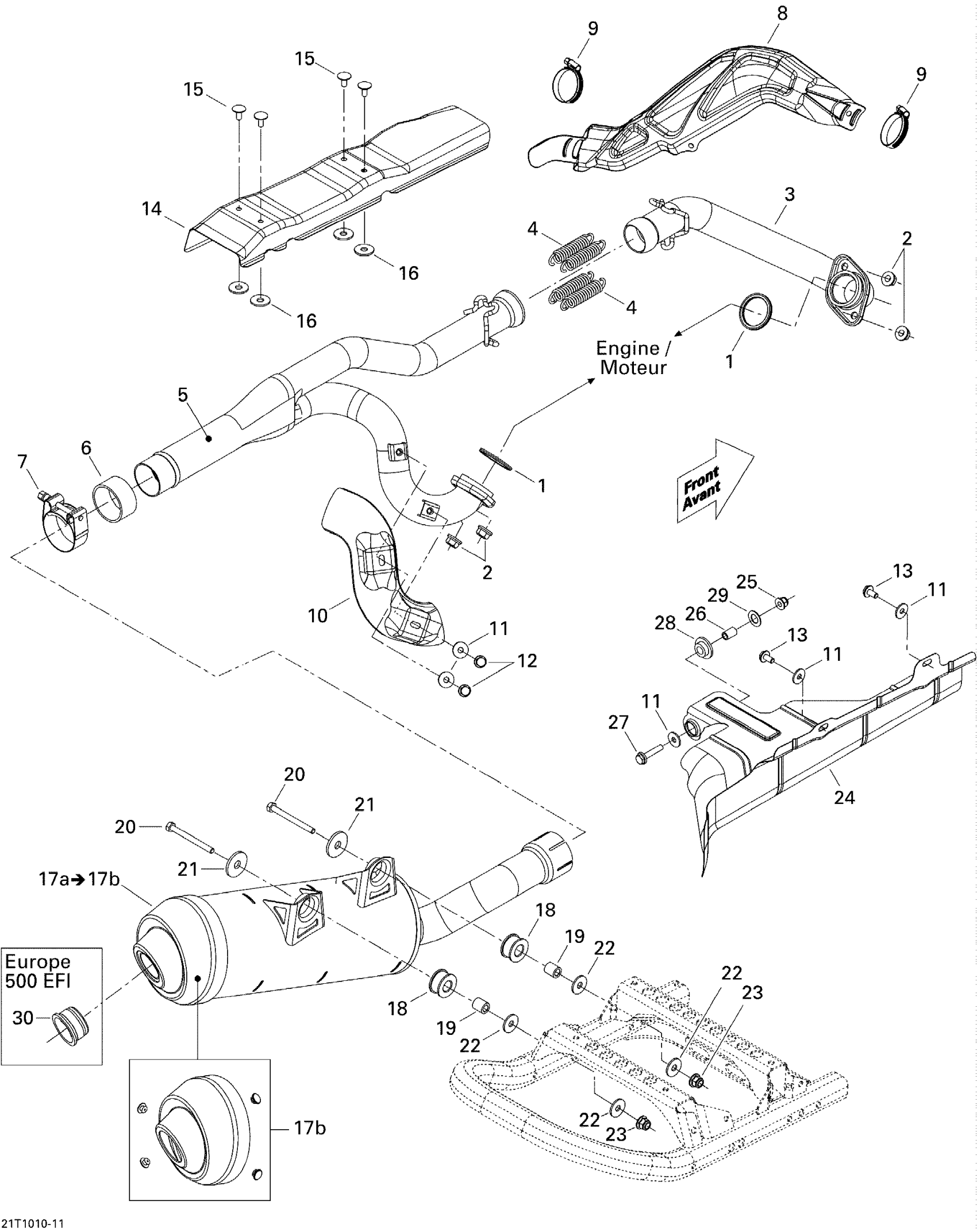

Can-Am Renegade 800R EFI STD, 2010 Exhaust System Diagram

#

Description
Price

1

Gasket

707600317

$10.21

2

Hex. Flange Nut M8

233081416

$1.87

3

FRONT TUNED PIPE - Call your local BRP dealership

707600529

Unavailable

4

Spring

415107100

$6.01

5

REAR TUNED PIPE - Call your local BRP dealership

707600530

Unavailable

6

Pipe Gasket

707600430

$17.88

7

Norma Gear Clamp

293650177

$8.67

8

Heat Shield

707600889

$32.81

9

Norma Gear Clamp

293650098

$4.15

10

PROTECTOR - Call your local BRP dealership

707600615

Unavailable

11

Flat Washer

250200082

$0.40

12

HEX. FLANGED SCREW M6 X 12 - Call your local BRP dealership

250000073

Unavailable

13

Hex. Flange Screw M6 X 12

210261250

$1.79

14

HEAT SHIELD - Call your local BRP dealership

707600700

Unavailable

15

Pop Rivet 3/16"

390406500

$0.81

16

Washer

517124300

$0.18

17a

MUFFLER_EXHAUST - Call your local BRP dealership | Includes 18, 19

707600578

Unavailable

17a

MUFFLER_EXHAUST - Call your local BRP dealership | Europe

707600579

Unavailable

17b

MUFFLER CAP KIT - Call your local BRP dealership

703500701

Unavailable

18

Vibration Damper

707603323

$10.88

19

Bushing

293900106

$4.28

20

Hex. Flange Screw M8 X 70

207687044

$7.01

21

Washer

503032900

$3.10

22

Flat Washer 8 mm

234082410

$1.27

23

Hex. Flange Elastic Nut M8

233281414

$1.31

24

Protector

707600621

$55.94

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

26

Sleeve

293900078

$11.81

27

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

28

Grommet

705003932

$2.89

29

Washer

503175800

$3.16

30

Restrictor | Europe

707600556

Unavailable
