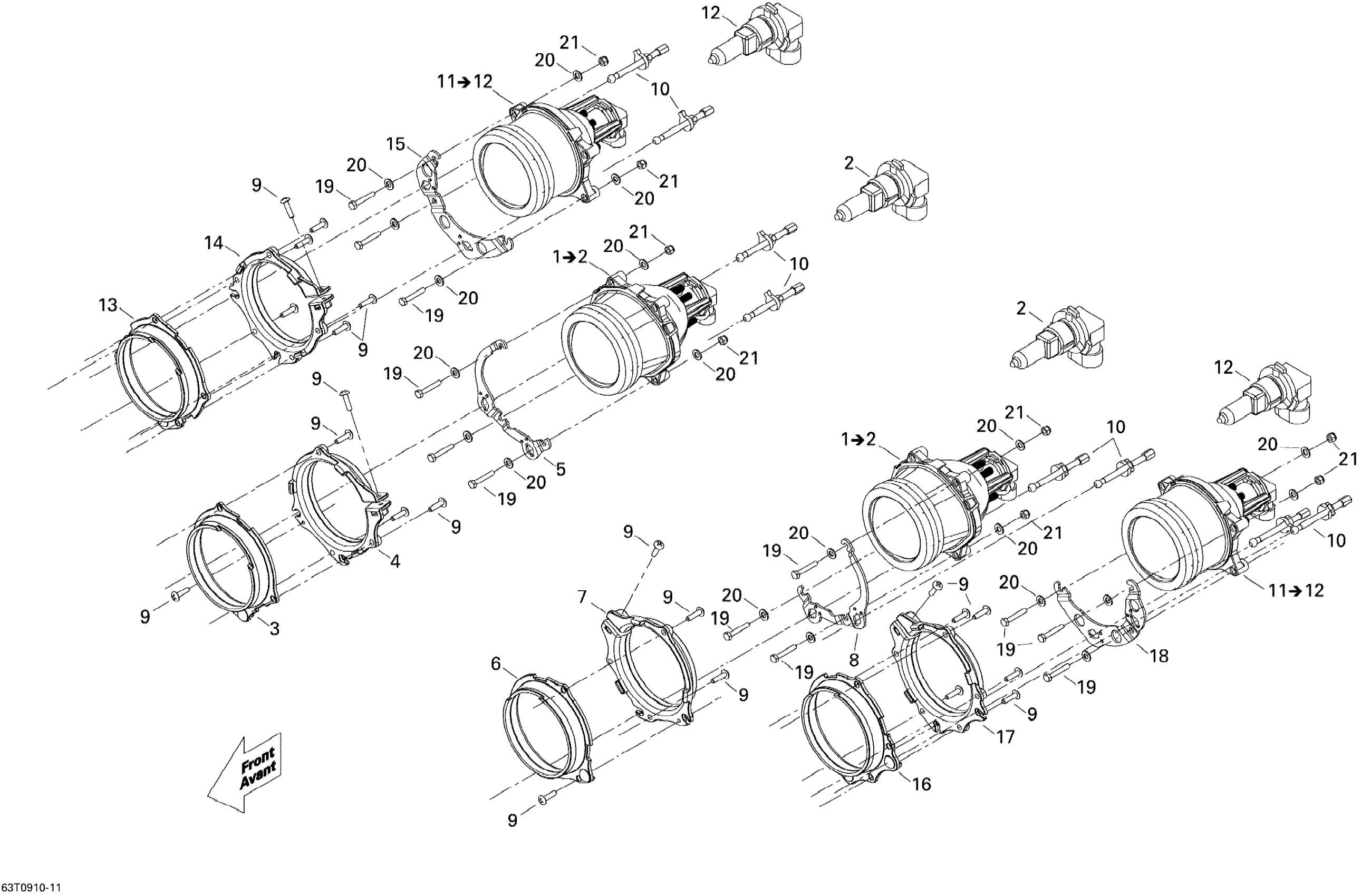

Can-Am Renegade 800R EFI STD, 2009 Headlights Diagram

#

Description
Price

1

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

2

Halogen Bulb

415129249

$41.49

3

RH Low Front Housing

710001081

$19.99

4

RH Low Rear Housing

710001082

$12.99

5

RH Low Light Support

710001094

$9.09

6

LH Low Front Housing

710001083

$19.99

7

LH Low Rear Housing

710001084

$12.99

8

LH Low Light Support

710001037

$9.09

9

Phillips Screw K40 X 16

250000723

$0.98

10

Setting Screw

710001147

$12.71

11

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

12

Halogen Bulb

415129249

$41.49

13

RH High Front Housing

710001085

$19.99

14

RH High Rear Housing

710001086

$12.99

15

RH High Light Support

710001115

$5.29

16

LH High Front Housing

710001087

$19.99

17

LH High Rear Housing

710001088

$12.99

18

LH High Light Support

710001036

$5.29

19

Hex. Screw M4 X 25

207142544

$2.00

20

Flat Washer M5

234051410

$0.53

21

Elastic Stop Nut M4

232541414

$0.58
