- Renegade 800R EFI STD, 2009
10- Electrical Accessories

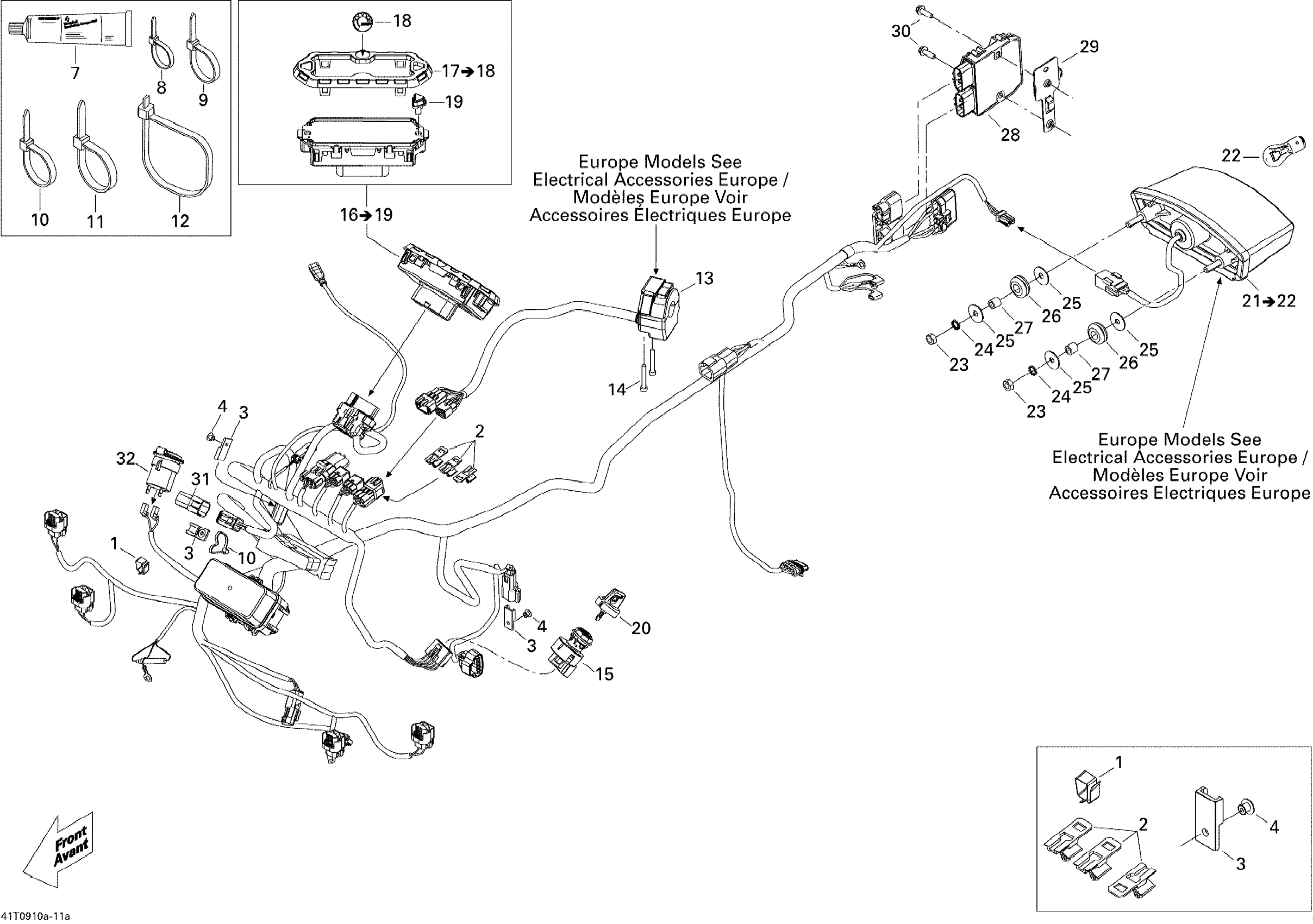

Can-Am Renegade 800R EFI STD, 2009 10- Electrical Accessories Diagram
#
Description
Price
1
Clip
414227300
Unavailable
2
Housing Support
515175283
Unavailable
3
Clip
270000141
Unavailable
4
Pop Rivet 3/16"
390402400
Unavailable
7
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
8
Tie Wrap 94 mm | 4X4
293750001
Unavailable
9
Tie-Rap 173 mm
293750009
Unavailable
10
Tie-Rap 180 mm
414115200
Unavailable
11
Tie Wrap 368 mm
293750008
Unavailable
12
Tie-rap 627 mm
293750041
Unavailable
13
Multi-Fonction Handle
710000791
Unavailable
14
Socket Head Screw M5 X 35
205053588
Unavailable
15
Ignition Switch | Includes 16 to 17
710002324
Unavailable
16
Calibrated Speedometer | Includes 16 to 17
710003288
Unavailable
17
Trim Ring Ass'y
710001183
Unavailable
18
BRP Logo13 mm
704904615
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
20
Black, Electronic Key
710000817
Unavailable
21
Tail Light Ass'y | Includes 19 to 20
710001041
Unavailable
22
Bulb
520000758
Unavailable
23
Hex. Nut M6
232061600
Unavailable
24
External Serrated Lock Washer 6 mm
234461608
Unavailable
25
Flat Washer
224060201
Unavailable
26
Grommet
709000582
Unavailable
27
Bushing
293900105
Unavailable
28
Voltage Regulator | For replacement, refer to service bulletin 2005-5
710001103
Unavailable
29
RECTIFIER SUPPORT - Call your local BRP dealership
710001262
Unavailable
30
Hexagonal Head Screw
210262050
Unavailable
31
Diagnostic Connector
278002704
Unavailable
32
Outlet Power Kit, 12 Volts
861507200
Unavailable
