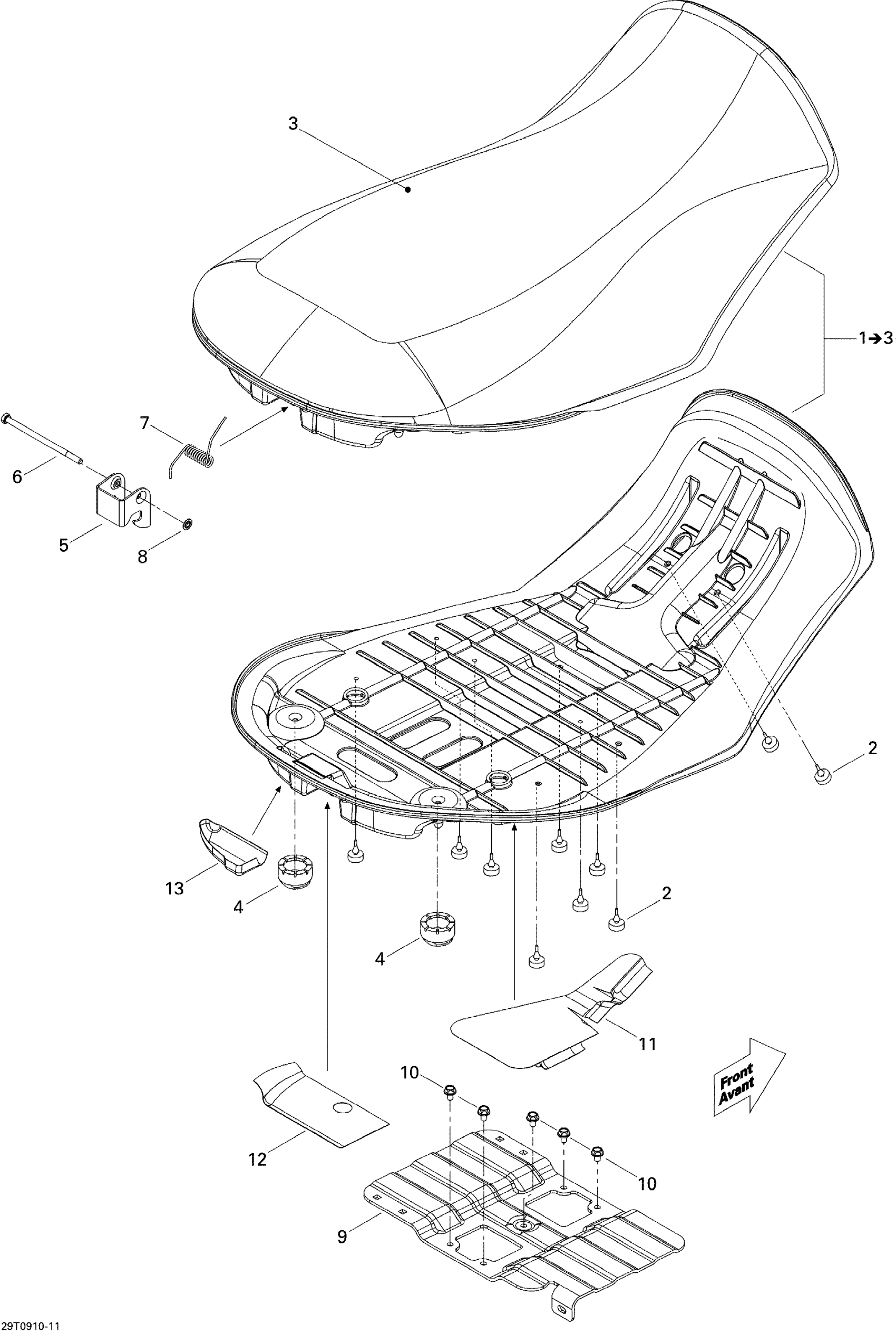

Can-Am Renegade 800R EFI STD, 2009 Seat Diagram

#

Description
Price

1

Seat Ass'y | Includes 1 to 3, 11, 12, 13

708000754

Unavailable

2

Rubber Stopper

708000759

$4.19

3

SEAT COVER - Call your local BRP dealership

708000593

Unavailable

4

Bumper Rubber

708000760

$10.49

5

Latch, Black

708000144

$11.99

6

Hex. Screw M6 X 110

230061034

$2.11

7

Spring

708000369

$9.19

8

Push Nut

732610072

$2.19

9

Seat Reinforcement

708000629

$33.99

10

Hex. Flange Screw M6 X 12

210261250

$1.90

11

REFLECTING SHEET - Call your local BRP dealership

708000956

Unavailable

12

REFLECTING SHEET - Call your local BRP dealership

708000470

Unavailable

13

HEAT SHIELD - Call your local BRP dealership

708000957

Unavailable
