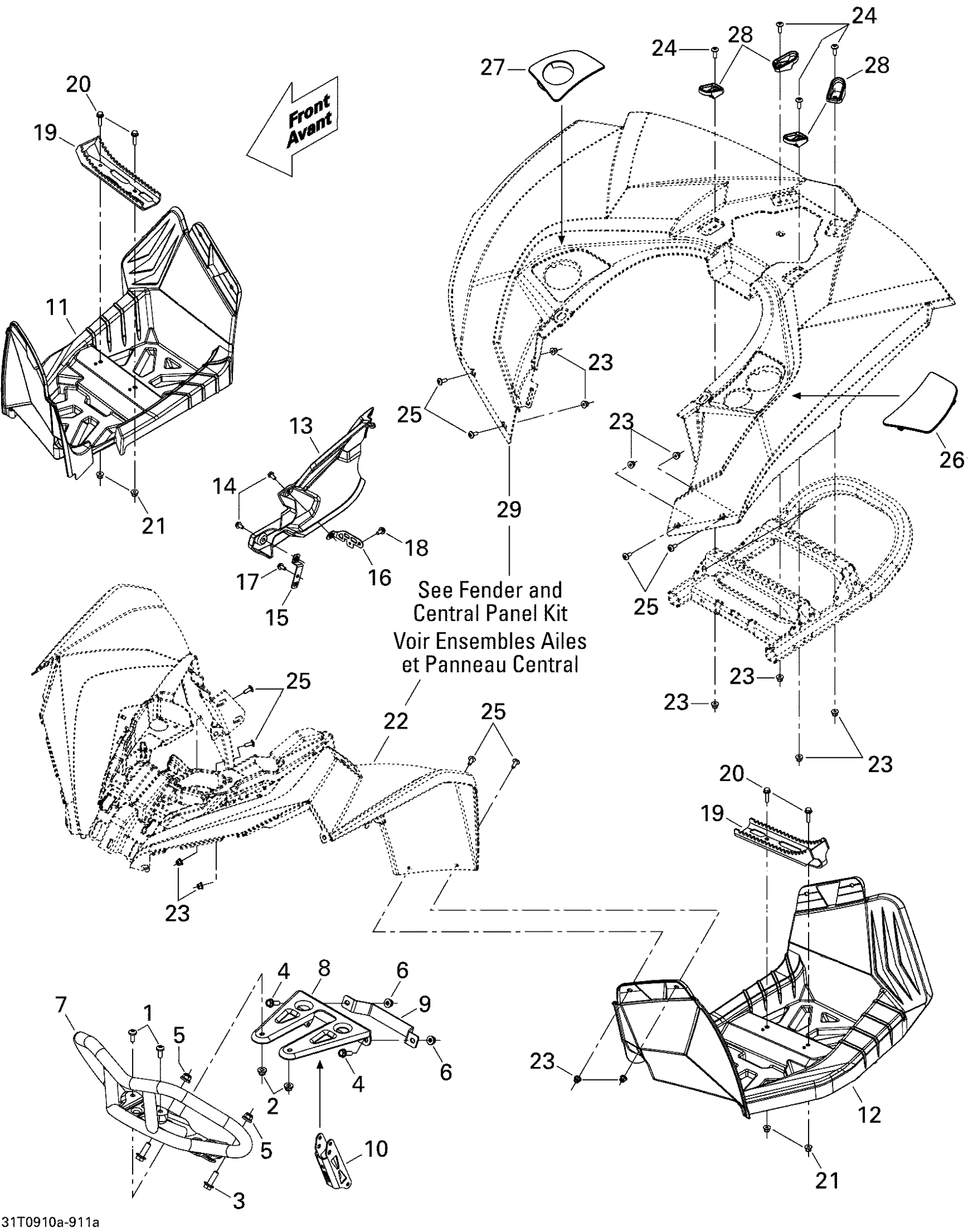

Can-Am Renegade 800R EFI STD, 2009 Body And Accessories 1 Diagram

#

Description
Price

1

Torx Screw M8 X 20, Scotch Grip

250000740

$2.09

2

Hex. Flange Elastic Nut M8

233281414

$1.14

3

Hex. Flange Screw M10 X 30

207603044

$1.70

4

Hex. Flange Screw M8 X 25

207682544

$0.90

5

Hex. Flange Elastic Nut M10

233201414

$1.26

6

Hex. Flange Elastic Nut M8

233281414

$1.14

7

Front Bumper

705003300

$396.89

8

ATTACHE - Call your local BRP dealership

705002279

Unavailable

9

BUMPER BRACKET, BLACK - Call your local BRP dealership

705002520

Unavailable

10

Support

705002282

$32.28

11

RH FOOTBOARD - Call your local BRP dealership

705003136

Unavailable

12

LH FOOTBOARD - Call your local BRP dealership

705003135

Unavailable

13

ENGINE COVER - Call your local BRP dealership

705003839

Unavailable

14

Hex. Flange Screw M6 X 12

210261250

$1.56

15

Engine Cover Support

705003646

$7.69

16

Engine Cover Support

705011461

$8.46

17

Hex. Flange Screw M6 X 12

210261250

$1.56

18

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

19

Footrest

705002326

$41.51

20

Hex. Flange Screw M6 X 25

207662554

$1.48

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

24

Torx Screw M6 x 25

250000284

$1.74

25

Torx Screw M6 X 16

250000755

$0.72

26

LH Rear Body Panel Cap

705017923

$12.68

27

RH Rear Body Panel Cap

705017924

$14.71

28

Hook

705017925

$15.35

29

Not Available As Spare Part - Friction Washer

Unavailable
