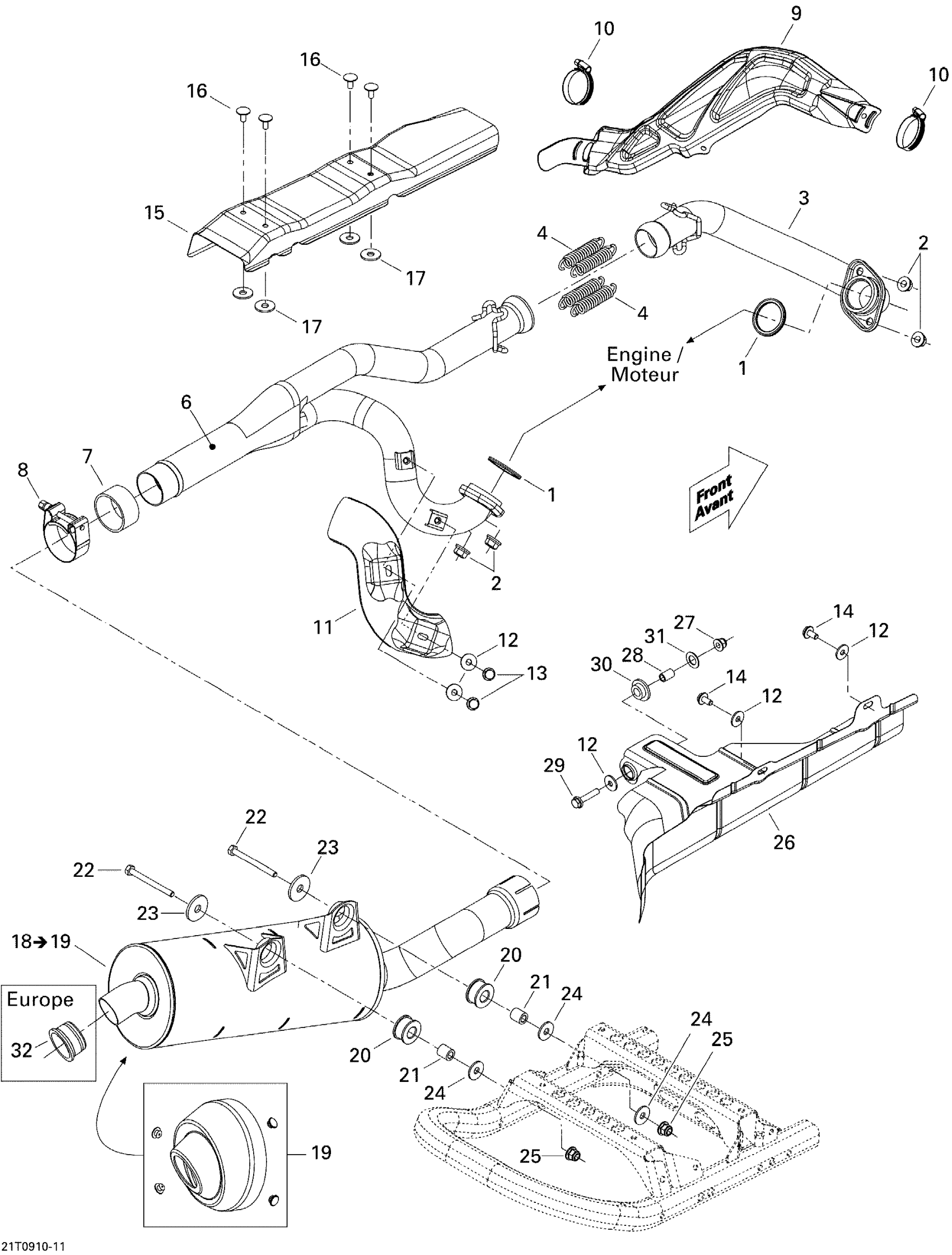

Can-Am Renegade 800R EFI STD, 2009 Exhaust System Diagram

#

Description
Price

1

Gasket

707600317

$11.60

2

Hex. Flange Nut M8

233081416

$1.15

3

FRONT TUNED PIPE - Call your local BRP dealership

707600529

Unavailable

4

Spring

415107100

$6.35

6

REAR TUNED PIPE - Call your local BRP dealership

707600530

Unavailable

7

Pipe Gasket

707600430

$19.49

8

Norma Gear Clamp

293650177

$10.49

9

Heat Shield

707600889

$36.99

10

Norma Gear Clamp

293650098

$4.44

11

PROTECTOR - Call your local BRP dealership

707600615

Unavailable

12

Flat Washer

250200082

$0.42

13

HEX. FLANGED SCREW M6 X 12 - Call your local BRP dealership

250000073

Unavailable

14

Hex. Flange Screw M6 X 12

210261250

$1.90

15

HEAT SHIELD - Call your local BRP dealership

707600700

Unavailable

16

Pop Rivet 3/16"

390406500

$0.88

17

Washer

517124300

$0.19

18

MUFFLER_EXHAUST - Call your local BRP dealership | Includes 18, 19

707600578

Unavailable

18

MUFFLER_EXHAUST - Call your local BRP dealership | Europe

707600579

Unavailable

19

MUFFLER CAP KIT - Call your local BRP dealership

703500701

Unavailable

20

Vibration Damper

707603323

$11.65

21

Bushing

293900106

$4.55

22

Hex. Flange Screw M8 X 70

207687044

$7.41

23

Washer

503032900

$3.28

24

Flat Washer 8 mm

234082410

$1.47

25

Hex. Flange Elastic Nut M8

233281414

$1.47

26

Protector

707600621

$60.49

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

28

Sleeve

293900078

$13.71

29

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

30

Grommet

705003932

$2.89

31

Washer

503175800

$3.28

32

Restrictor | Europe

707600556

Unavailable
