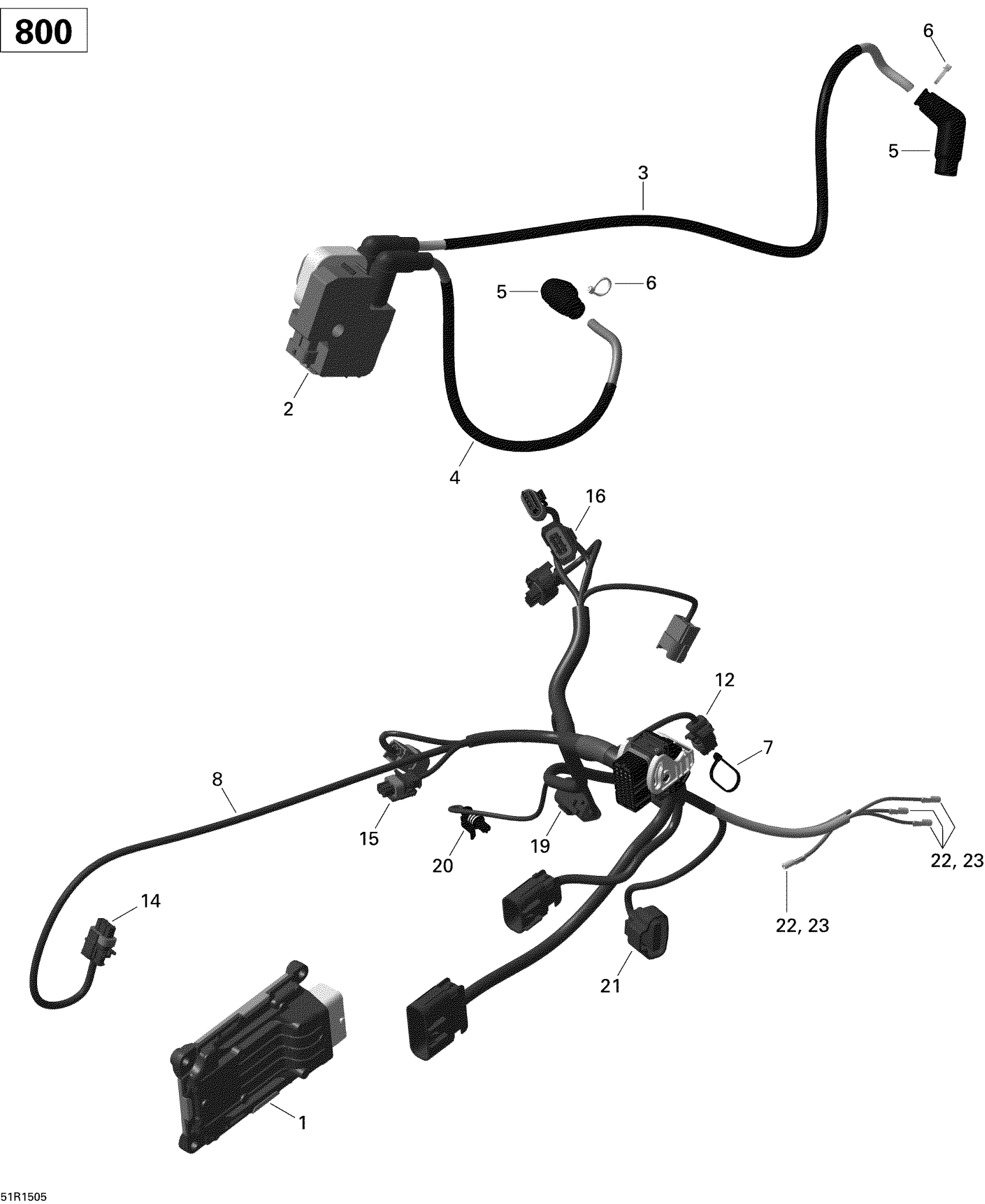

Can-Am Renegade 800R EFI, 2015 Engine Harness And Electronic Module Renegade_51R1505 Diagram

#

Description
Price

1

ECM, ENGINE CONTROL MODULE - Call your local BRP dealership | Package-DPS North America

420264972

$1,149.99

1

ECM, ENGINE CONTROL MODULE - Call your local BRP dealership | Package-DPS North America

420264972

$1,149.99

1

ECM, ENGINE CONTROL MODULE - Call your local BRP dealership | Package-DPS North America

420264972

$1,149.99

1

ECM, ENGINE CONTROL MODULE - Call your local BRP dealership | Package-DPS North America

420264972

$1,149.99

1

ECM, ENGINE CONTROL MODULE - Call your local BRP dealership | Europe

420266910

$1,149.99

1

ECM, ENGINE CONTROL MODULE - Call your local BRP dealership | Europe

420266910

$1,149.99

2

Ignition Coil

278001546

$158.99

3

Spark Plug Cable, 790 mm, Rear

420665333

$60.99

4

Spark Plug Cable, 790 mm, Rear

420665333

$60.99

5

Spark Plug Connector

420265248

$31.99

6

Tie Rap

420866710

$5.49

7

Tie Wrap 94 mm | 4X4

293750001

$1.03

8

Engine Wiring Harness

420666571

$439.99

12

Male Housing, 2 Circuits

278001005

$19.49

14

Male Housing, 3 Circuits

278000997

$19.49

15

Male Housing, 2 Circuits

278001005

$19.49

16

Housing Connector, 3 Circuits

278001829

$21.99

19

Male Housing

278002378

$13.99

20

Male Housing, 1 Circuit

278001012

$16.86

21

Male Housing, 4 Circuits

710000329

$15.36

22

Female Terminal | DS 650 X

278001009

$3.19

23

Insulated Sheath

278001007

$3.58
