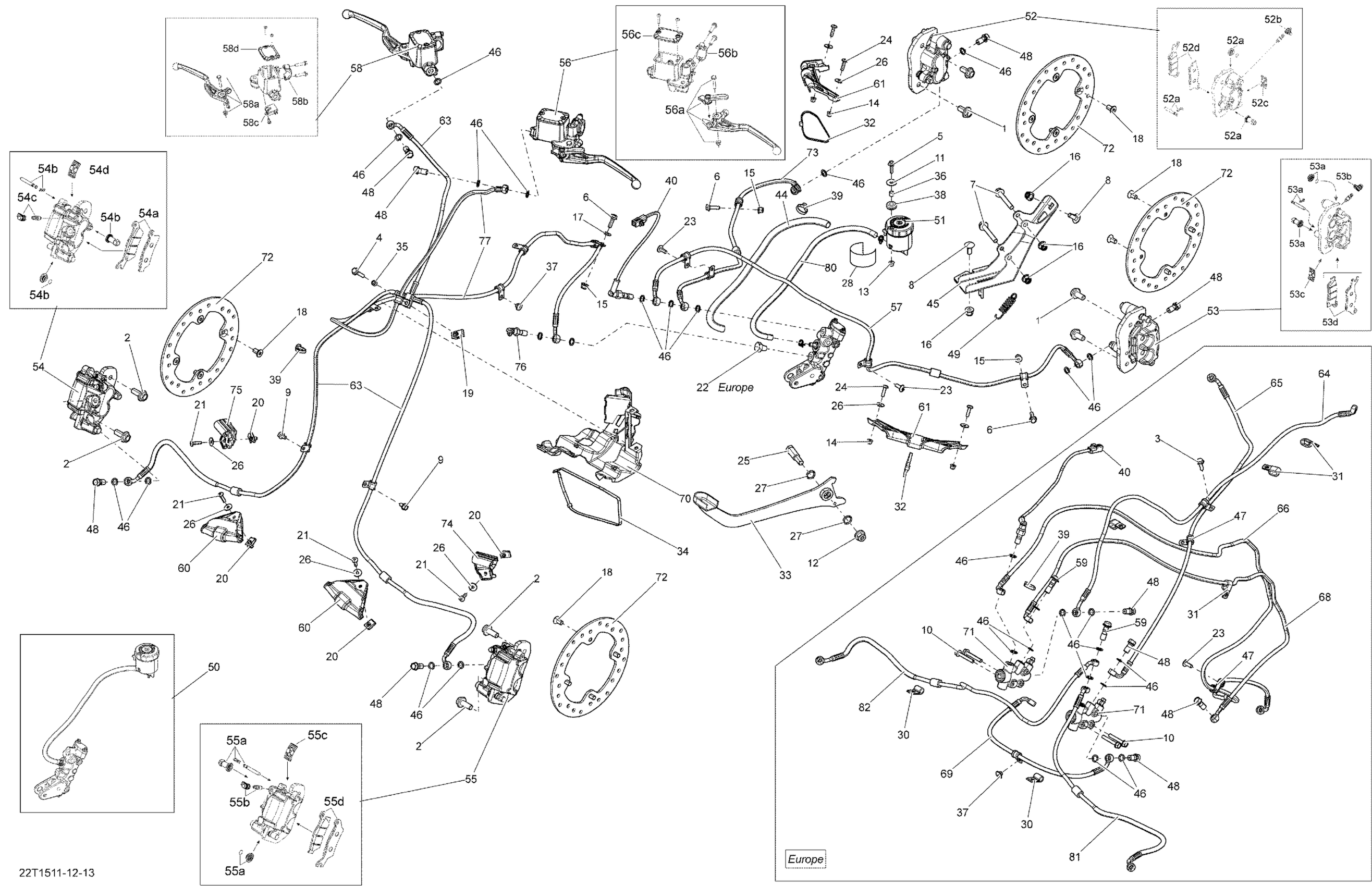

Can-Am Renegade 800R EFI, 2015 Brakes _22T1512 Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 20

207502046

$1.74

2

Hex. Flange Screw M10 X 25

207502546

$1.74

3

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

4

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

5

Hex.Flange Screw M5 X 20

207652044

$1.56

6

Hex. Flange Screw M6 X 20

207662044

$1.66

7

Hex. Flange Screw M8 X 55

207685544

$4.41

8

Carriage Bolt, M8 X 20

207782044

$1.56

9

Hex. Flange Screw M6 X 10

210261040

$1.25

10

HEX. SCREW M6 X 40 - Call your local BRP dealership

210264080

Unavailable

11

Flat Washer

224060201

$1.15

12

Hex. Flange Elastic Nut M10

233201436

$1.74

13

Flange Elastic Nut M5

233251434

$1.66

14

Flange Elastic Nut M5

233251434

$1.66

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

16

Hex. Flange Elastic Nut M8

233281414

$1.14

17

Flat Washer 6 mm

234062410

$0.64

18

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

19

Panel Nut M6 X 1.0

250100198

$1.73

20

Panel Nut M5 X 0.8

250000958

$3.48

21

Torx Screw M5 X 20

250000724

$1.39

22

Hex. Screw M10 X 14, Scotch Grip

250000163

$3.98

23

Torx Screw M6 X 16

250000755

$0.72

24

Torx Screw M5 X 20

250000792

$1.74

25

Shoulder Screw M10

250000513

$5.54

26

Washer M5

250200025

$0.61

27

O-Ring

293300144

$3.98

28

Not Available As Spare Parts

XXX

Unavailable

30

Clamp

293650219

$0.85

31

Clamp

293650220

$0.85

32

Tie Wrap 368 mm

293750008

$0.85

33

Deep Black, Brake Pedal

705602163

$147.66

34

Tie Rap, 533 mm

293750047

$1.83

35

Bushing | DS 650 X

293900104

$5.26

36

Bushing

293900112

$10.14

37

Pop Rivet 3/16"

390406500

$0.70

38

Grommet

414036300

$2.22

39

Tie-Rap 180 mm

414115200

$0.09

40

Brake Switch

705601250

$59.97

40

Brake Switch

705601251

$50.74

44

Tubing 10 MM 1000MM Long

219704407

$2.20

45

Brake Pedal Bracket

705202000

$36.89

46

Copper Washer

705601628

$4.34

47

Clamp

293650256

$4.36

48

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

49

Brake Pedal Spring

705600792

$9.22

50

Rear Master Cylinder Ass'y | Includes 28 to 30

705601776

$216.89

51

Oil Tank

705601020

$36.89

52

RH Rear Brake Caliper | Includes 41 to 45

705602190

$219.97

52a

Pin Set

705601016

$9.98

52b

Bleeding Screw

705601017

$6.45

52c

Retaining Spring

705601018

$7.98

52d

RH Organic Brake Pad Kit

705601014

$40.37

53

LH Rear Caliper Ass'y | Includes 47 to 51

705600860

$218.49

53a

Pin Set

705601016

$9.98

53b

Bleeding Screw

705601017

$6.45

53c

Retaining Spring

705601018

$7.98

53d

LH Organic Brake Pad Kit

705601015

$40.37

54

RH Front Caliper Ass'y | Includes 1 to 5

705600861

$218.49

54a

RH Organic Brake Pad Kit

705601014

$40.37

54b

Pin Set

705601016

$9.98

54c

Bleeding Screw

705601017

$6.45

54d

Retaining Spring

705601018

$7.98

55

LH Front Caliper Ass'y | Includes 6 to 10

705600862

$218.49

55a

Pin Set

705601016

$9.98

55b

Bleeding Screw

705601017

$6.45

55c

Retaining Spring

705601018

$7.98

55d

LH Organic Brake Pad Kit

705601015

$40.37

56

LH Front Master Cylinder Ass'y | Includes 11 to 14

705601431

$212.28

56a

Lever Set

705601013

$59.97

56a

Not Available As Spare Part - Friction Washer

Unavailable

56b

Clamp And Screw Kit

507032477

$23.05

56c

Cap Set

219800096

$23.05

57

Brake Line Ass'y | Includes 27 to 28

705600911

$50.74

58

RH Front Master Cylinder Ass'y | Includes 15 to 19

705601432

$276.89

58a

Lever Set

705601011

$69.20

58b

Clamp And Screw Kit

507032477

$23.05

58c

Kit Switch

705601012

$55.35

58d

Cap Set

219800096

$23.05

59

Banjo Bolt

705600958

$7.60

60

Hose Guard

705601893

$4.60

61

REAR HOSE PROTECTOR - Call your local BRP dealership

705600963

Unavailable

63

Front Brake Hose

705601489

$147.66

65

RH BRAKE HANDLE LINE ASS'Y - Call your local BRP dealership | Includes 24 to 25

705600970

Unavailable

66

RH REAR BRAKE LINE ASS'Y - Call your local BRP dealership | Includes 32 to 33

705600971

Unavailable

68

OUTLET HOSE, MASTER CYLINDER - Call your local BRP dealership

705600980

$55.35

69

BRAKE LINE - Call your local BRP dealership

705600981

$32.28

70

Front Hose Bracket

705600983

$12.68

71

Splitter

705600994

$147.66

72

Disc Brake

705600999

$85.49

73

Brake Line Ass'y

705601002

$36.89

74

LH Hose Bracket

705601048

$4.60

75

RH Hose Bracket

705601049

$4.60

76

Bleeding Screw

705601051

$11.98

77

LH BRAKE HANDLE LINE ASS'Y - Call your local BRP dealership | Includes 22 to 23

705601525

Unavailable

77

BRAKE LINE - Call your local BRP dealership

705601059

Unavailable

79

Not Available As Spare Parts

XXX

Unavailable

80

Oil Housing Hose

705601019

$15.35

81

LH Front Brake Hose

705601523

$55.35

82

RH Front Brake Hose

705601522

$55.35
