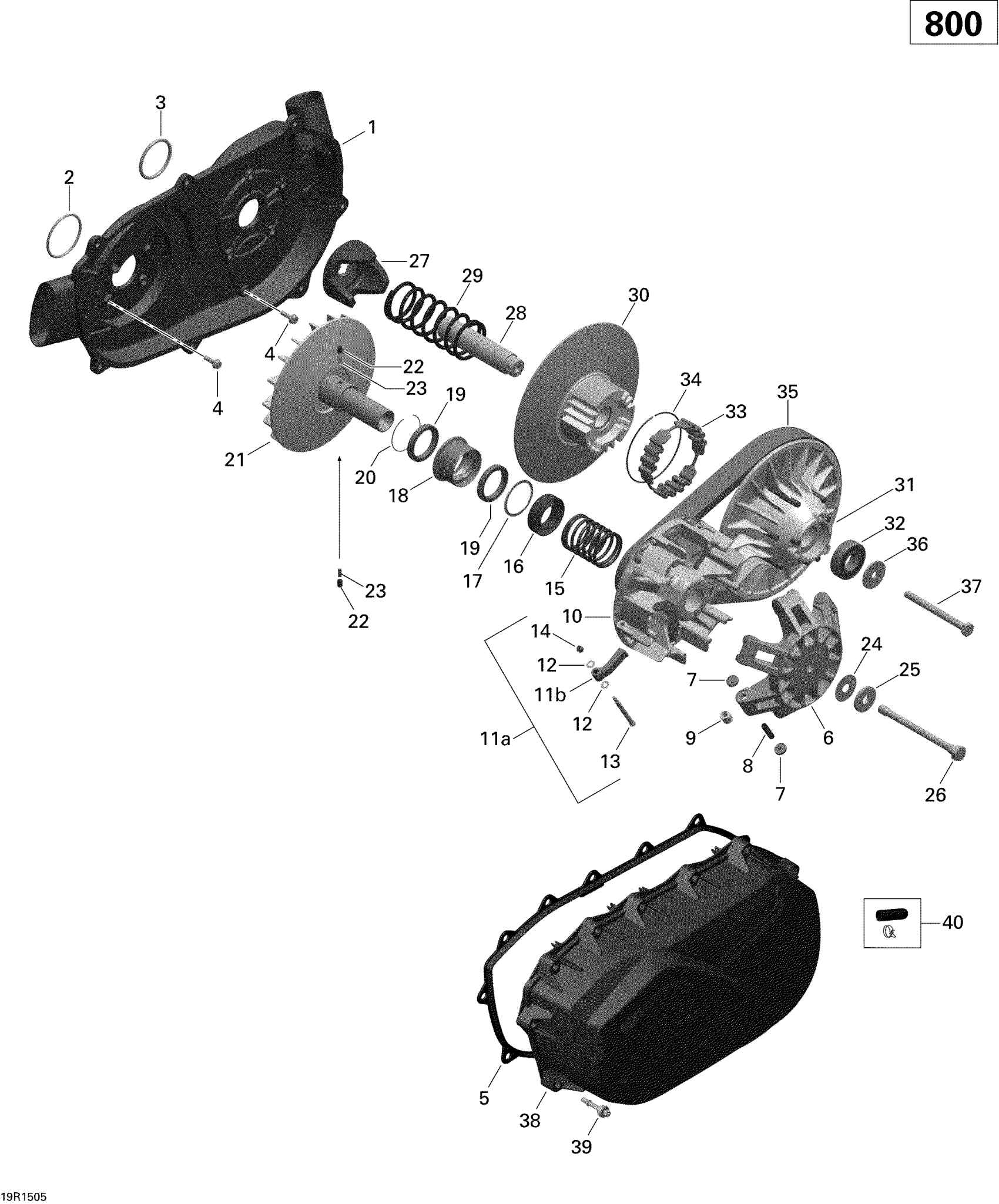

Can-Am Renegade 800R EFI, 2015 Transmission Renagade _19R1505 Diagram

#

Description
Price

1

CVT Air Guide

420612304

$194.99

2

O-Ring

420430408

$5.29

3

O-Ring

420631089

$5.29

4

Hex.Screw M6 X 20

420441311

$5.18

5

Gasket

420430126

$41.49

6

Governor Cup Ass'y | Includes 6 to 9

420280522

$439.99

7

Slider Shoe Set

420281296

$65.49

8

Roller Axle

417223257

$6.99

9

Roller

417223767

$11.59

10

Outer Haft

420280467

$329.99

11a

Centrifugal Lever Set | Includes 11a to 14

420248607

$186.49

11b

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Compression Spring, Drive Pulley

420238617

$29.49

16

Seat Spring

420627578

$35.99

17

Friction Washer

420460430

$13.99

18

Drive Pulley Clutch

420257195

$114.99

19

Ball Bearing

420632377

$49.99

20

Retaining Ring

420245951

$5.31

21

Inner Half

420280374

$339.99

22

Spring Sleeve

420229577

$18.49

23

Spring

420239134

$3.06

24

Thrust Washer

420627920

$7.51

25

Spring Washer

420627768

$21.99

26

Hex. Screw M12 X 140

420641859

$24.99

27

Cam

420280473

$137.99

28

Driven Pulley Shaft

420220914

$129.99

29

Compression Spring

420238176

$35.99

30

Inner Half Ass'y | Includes 33a to 35

420280499

$309.99

31

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$359.99

32

Ball Bearing

420932421

$28.49

33

Torque Gear

420660124

$23.49

34

Retaining Ring

420245911

$5.31

35

V-Belt

422280366

$179.99

36

Thrust Washer

420627594

$13.49

37

Hex. Screw M10 X 110

420441485

$12.18

38

Variator Cover

420611397

$219.99

39

Hex Screw M6 X 30

420440568

$8.58

40

Drain Plug Kit

707001179

$9.63
