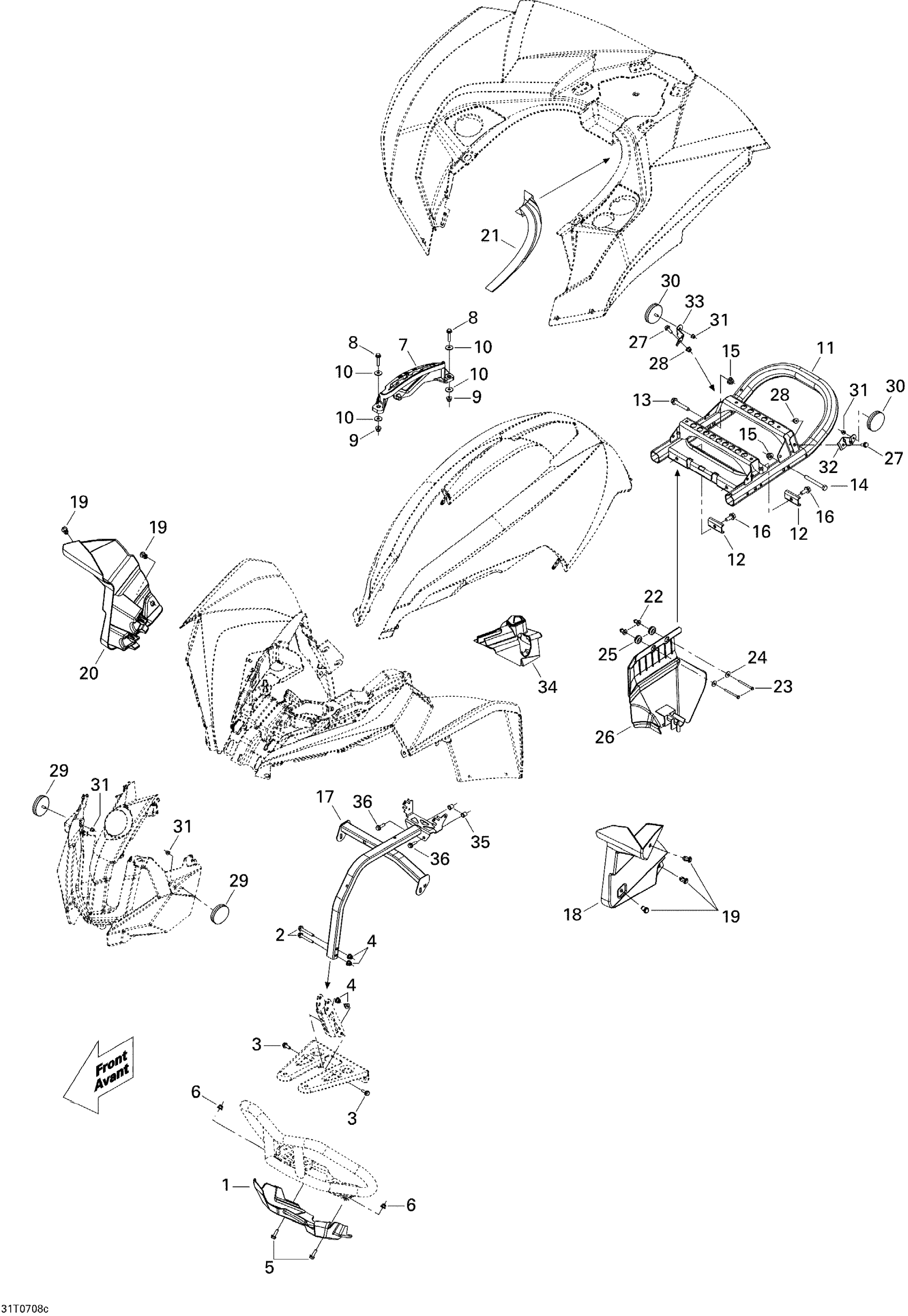

Can-Am Renegade 800 EFI, 2007 Body And Accessories 3 Diagram

#

Description
Price

1

FRONT PROCTECTION PLATE - Call your local BRP dealership

705002248

Unavailable

2

Hex. Flange Screw M6 X 45

207664544

$1.22

3

Hex. Flange Screw M6 X 16

207661644

$0.70

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

5

Hex. Flange Screw M6 X 20

207662044

$1.91

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

7

Lever Indicator

705003838

$25.34

8

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

10

Flat Washer

224061201

$1.27

11

REAR SUPPORT - Call your local BRP dealership

705002247

Unavailable

12

U Reinforcement

705003647

$6.72

13

Hex. Flange Screw M8 X 50

207685044

$1.60

14

Hex. Screw M8 X 70

207087044

$1.99

15

Hex. Flange Elastic Nut M8

233281414

$1.31

16

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

17

Support

705002246

Unavailable

18

LH INNER FENDER - Call your local BRP dealership

705003379

Unavailable

19

Tuflok Plastic Rivet

293150230

$1.39

20

RH INNER FENDER - Call your local BRP dealership

705002241

Unavailable

21

Reflective Sheet

705002451

$8.66

22

Knob

517303439

$4.28

23

HEX. SCREW K50 X 50 - Call your local BRP dealership

241055030

Unavailable

24

Washer | DS 650 X

391301600

$0.46

25

Grommet

709000582

$4.25

26

Thread Cover

705004036

$18.63

27

Hex. Flange Screw M6 X 16

207661654

$2.00

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

29

Amber Reflector | Except Europe Model

705011222

$11.96

30

Red Reflector

705011221

$11.96

31

Hex. Flange Elastic Nut M5

233251414

$1.91

32

LH REFLECTOR SUPPORT - Call your local BRP dealership | Except Europe Model

705002456

Unavailable

33

RH REFLECTOR SUPPORT - Call your local BRP dealership | Except Europe Model

705002459

Unavailable

34

MASTER CYLINDER COVER - Call your local BRP dealership

705003650

Unavailable

35

Insert

293450275

$11.36

36

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00
