09- Body And Accessories 1

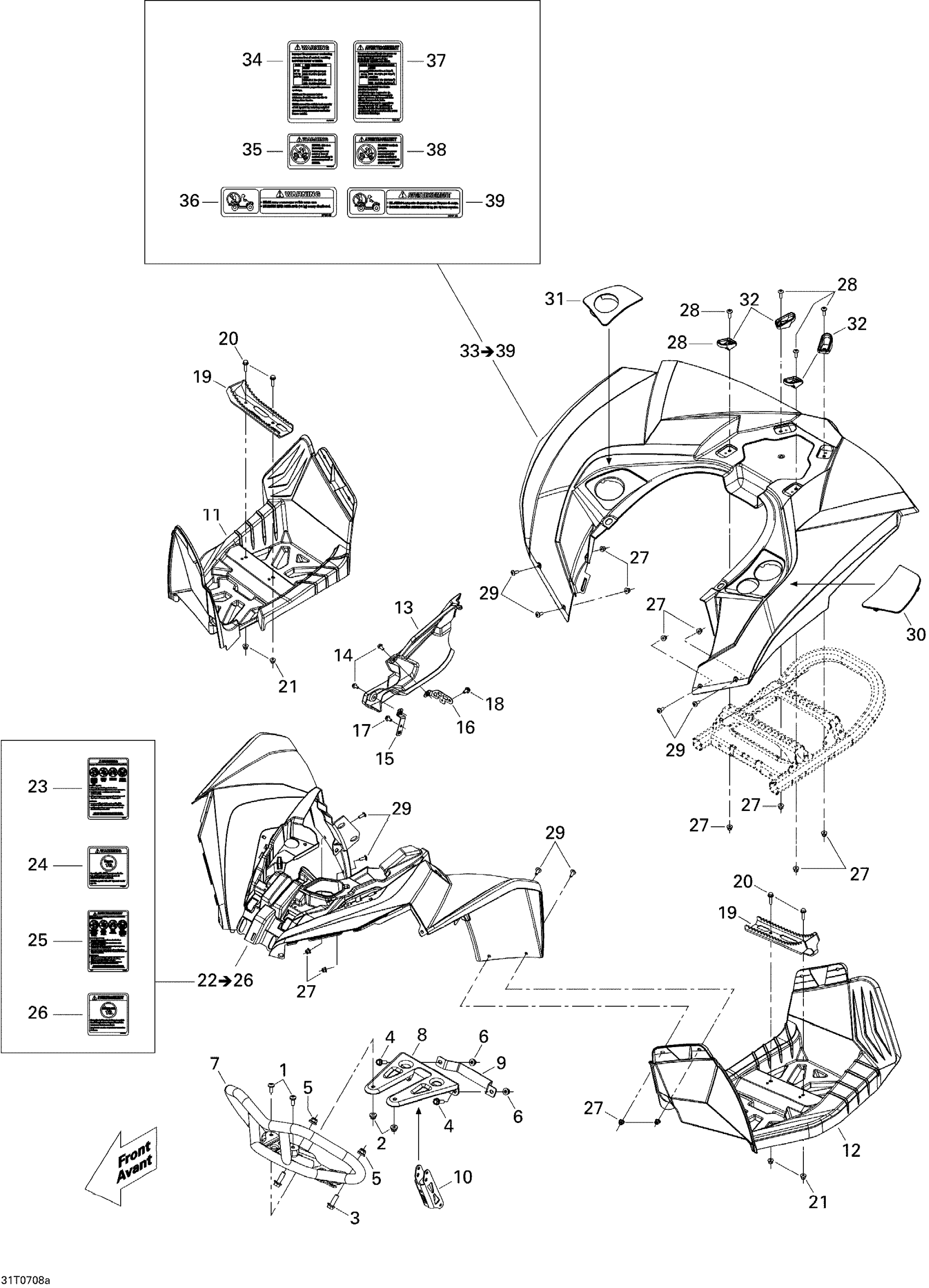

Can-Am Renegade 800 EFI, 2007 09- Body And Accessories 1 Diagram
#
1
Torx Screw M8 X 20, Scotch Grip
250000740
Unavailable
2
Hex. Flange Elastic Nut M8
233281414
Unavailable
3
Hex. Flange Screw M10 X 30
207603044
Unavailable
4
Hex. Flange Screw M8 X 25
207682544
Unavailable
5
Hex. Flange Elastic Nut M10
233201414
Unavailable
6
Hex. Flange Elastic Nut M8
233281414
Unavailable
7
Front Bumper
705003300
Unavailable
8
ATTACHE - Call your local BRP dealership
705002279
Unavailable
9
BUMPER BRACKET, BLACK - Call your local BRP dealership
705002520
Unavailable
10
Support
705002282
Unavailable
11
RH FOOTBOARD - Call your local BRP dealership
705003136
Unavailable
12
LH FOOTBOARD - Call your local BRP dealership
705003135
Unavailable
13
ENGINE COVER - Call your local BRP dealership
705003839
Unavailable
14
Hex. Flange Screw M6 X 12
210261250
Unavailable
15
Engine Cover Support
705003646
Unavailable
16
Engine Cover Support
705011461
Unavailable
17
Hex. Flange Screw M6 X 12
210261250
Unavailable
18
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
Unavailable
19
Footrest
705002326
Unavailable
20
Hex. Flange Screw M6 X 25
207662554
Unavailable
21
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
22
Yellow Front Fender Kit | Includes 22 to 26
715000737
Unavailable
23
WARNING DECAL, DEATH AND INJURIES - Call your local BRP dealership
704901878
Unavailable
24
Warning Decal, Under 16 Years Old
704900011
Unavailable
25
Warning Decal, Death And Injuries
704900002
Unavailable
26
Warning Decal, Under 16 Years Old | French Version
704900012
Unavailable
27
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
28
Torx Screw M6 x 25
250000284
Unavailable
29
Torx Screw M6 X 16
250000755
Unavailable
30
LH Rear Body Panel Cap
705017923
Unavailable
31
RH Rear Body Panel Cap
705017924
Unavailable
32
Hook
705002342
Unavailable
33
FENDER REAR B-190 KIT - Call your local BRP dealership | Includes 33 to 39
715000314
Unavailable
34
Warning Decal, Tire Pressure | English Version
704901289
Unavailable
35
WARNING DECAL, PASSENGER - Call your local BRP dealership
704900005
Unavailable
36
Warning Decal, Load | English Version
704901333
Unavailable
37
Warning Decal, Tire Pressure | French Version
704901329
Unavailable
38
Warning Decal, Passenger, French | French Version
704900006
Unavailable
39
Warning Decal, Load | French Version
704901334
Unavailable
