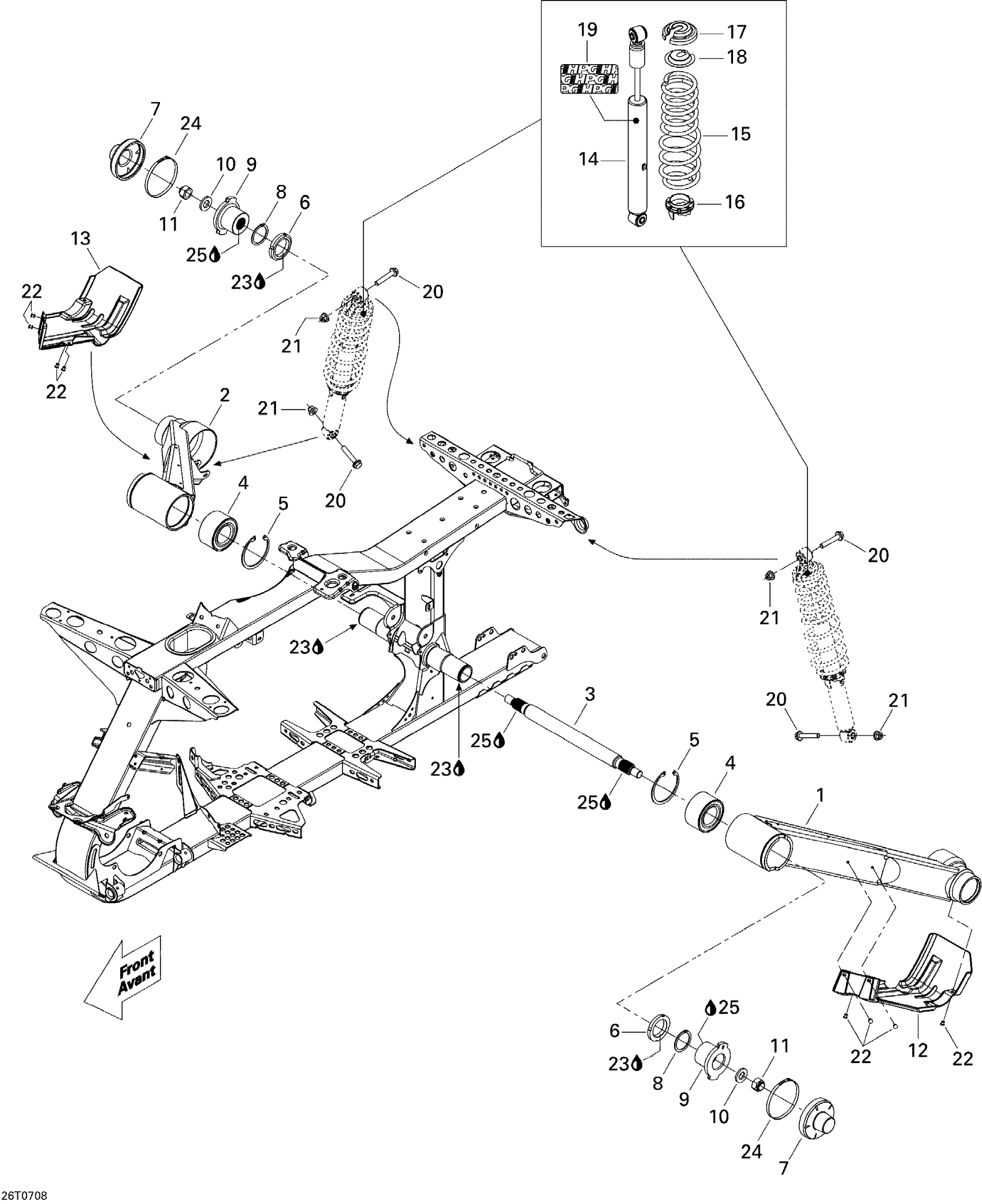

Can-Am Renegade 800 EFI, 2007 Rear Suspension Diagram

#

Description
Price

1

LH SWING ARM - Call your local BRP dealership

706001191

Unavailable

2

RH SWING ARM - Call your local BRP dealership

706001192

Unavailable

3

Sway Bar

706001078

$95.49

4

Ball Bearing

293350037

$139.99

5

Circlip

293370041

$9.26

6

Nut

706000221

$20.99

7

Cover

706000749

$16.49

8

Circlip 45 mm

293370027

$4.14

9

Lever

706000554

$72.99

10

Washer

250200045

$7.73

11

Elastic Stop Nut M18

232591414

$4.39

12

LH PROTECTOR - Call your local BRP dealership

706000333

Unavailable

13

RH PROTECTOR - Call your local BRP dealership

706000334

Unavailable

14

REAR SHOCK - Call your local BRP dealership

706000494

Unavailable

15

YELLOW SPRING - Call your local BRP dealership

706000511

Unavailable

16

Adjuster Ring

706002356

$18.49

17

Spring Stopper

706200881

$12.99

18

Cap

706200785

$4.69

19

DECAL H.P.G. - Call your local BRP dealership

704901412

Unavailable

20

Hex. Flange Screw M10 X 55

207605544

$3.38

21

Hex. Flange Elastic Nut M10

233201414

$1.58

22

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

23

Loctite 271, 10 ml

293800005

$26.99

24

Oetiker Clamp

293650162

$9.79

25

Loctite 271, 10 ml

293800005

$26.99
