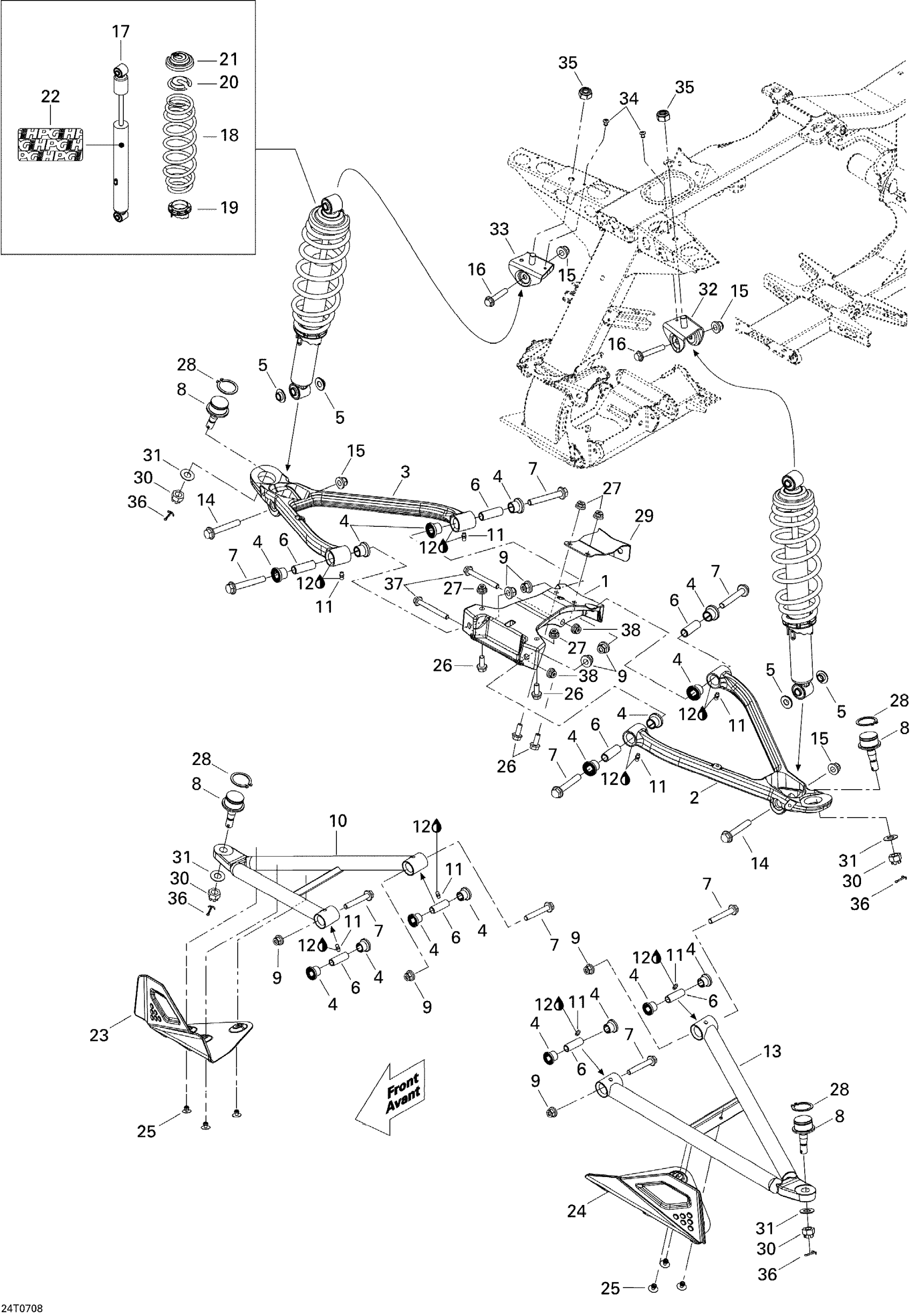

Can-Am Renegade 800 EFI, 2007 07- Front Suspension Diagram

#

Description
Price

1

Upper Arm Bracket

706201360

Unavailable

2

LH Upper Arm

706200763

Unavailable

3

RH Upper Arm

706200764

Unavailable

4

Bushing

706200181

Unavailable

5

SPACER BUSHING - Call your local BRP dealership

706200677

Unavailable

6

Sleeve

706201587

Unavailable

7

Hex. Flange Screw M10 X 70

207607046

Unavailable

8

Ball Joint

706200653

Unavailable

9

Hex. Flange Elastic Nut M10

233201436

Unavailable

10

ARM_SUSPENSION RH ECOAT - Call your local BRP dealership

706201047

Unavailable

11

Grease Fitting

408200700

Unavailable

12

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

13

ARM_SUSPENSION LH ECOAT - Call your local BRP dealership

706201045

Unavailable

14

Hex. Flange Screw M10 X 65

207606536

Unavailable

15

Hex. Flange Elastic Nut M10

233201436

Unavailable

16

Hex. Flange Screw M10 X 55

207605544

Unavailable

17

FRONT SHOCK - Call your local BRP dealership

706200420

Unavailable

18

Yellow Spring

706200632

Unavailable

19

Adjuster Ring

706002356

Unavailable

20

Spring Stopper

706200881

Unavailable

21

Cap

706200785

Unavailable

22

DECAL H.P.G. - Call your local BRP dealership

704901412

Unavailable

23

RH Protector

706201670

Unavailable

24

LH Protector

706201669

Unavailable

25

Pop Rivet 3/16" | DS 650 X

293150104

Unavailable

26

Hex. Flange Screw M8 X 20

207682044

Unavailable

27

Hex. Flange Elastic Nut M8

233281414

Unavailable

28

Circlip 32 mm

293370009

Unavailable

29

UPPER ARM BRACKET - Call your local BRP dealership

706200405

Unavailable

30

Nut M12

250100099

Unavailable

31

Hardened Washer

706200281

Unavailable

32

LH UPPER ARM BRACKET - Call your local BRP dealership

706201039

Unavailable

33

RH Upper Bracket

706200595

Unavailable

34

Pop Rivet 3/16"

390402300

Unavailable

35

Elastic Stop Nut M12

232521416

Unavailable

36

Cotter Pin

211400017

Unavailable

37

Hex. Flange Screw M8 X 70

207687044

Unavailable

38

Hex. Flange Elastic Nut M8

233281414

Unavailable
