- Renegade 800 EFI, 2007
07- Drive System, Front

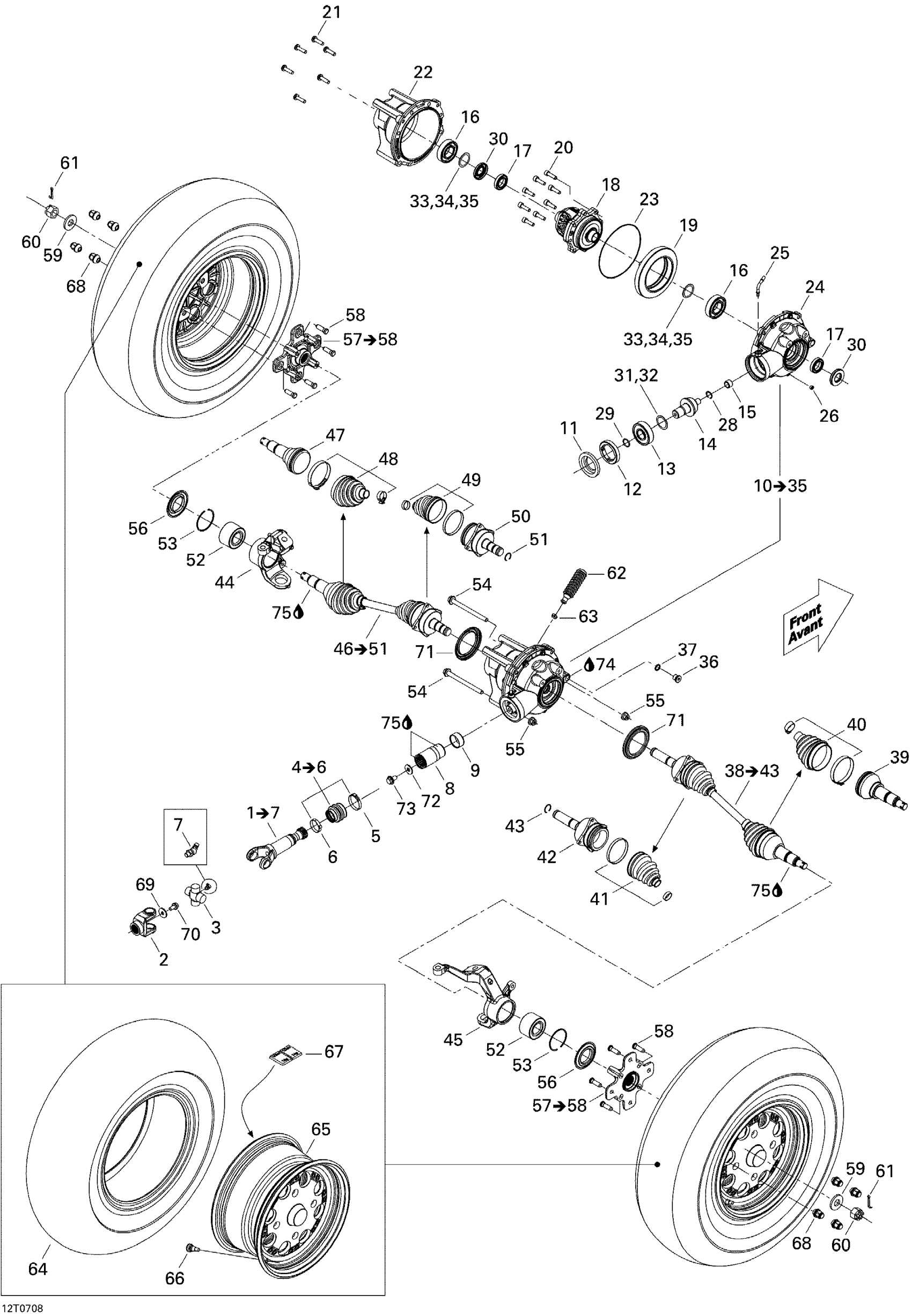

Can-Am Renegade 800 EFI, 2007 07- Drive System, Front Diagram
#
1
Arbre Assemble *Drive Axle Ass | Includes 1 to 6
705400914
Unavailable
2
YOKE, FIXED JOINT - Call your local BRP dealership
705400391
Unavailable
3
Ens. Croix*U-Joint Cross Kit
715900325
Unavailable
4
Rubber Boot Kit | 4X4 / Includes 3 to 5
703500255
Unavailable
5
Oetiker Gear Clamp 44.0MM | 4X4
293650138
Unavailable
6
Collar | 4X4
705400148
Unavailable
7
GREASE FITTING - Call your local BRP dealership
705500841
Unavailable
8
Front Bushing Shaft Kit | 4X4
703500678
Unavailable
9
Wear Ring | 4X4
705400036
Unavailable
10
Front Differential | Includes 8 to 31
703500907
Unavailable
11
Oil Seal | 4X4
705401481
Unavailable
12
Nut | 4X4
705401603
Unavailable
13
Ball Bearing | 4X4
705500260
Unavailable
14
GEAR, 10 TEETH - Call your local BRP dealership | 4X4
705500268
Unavailable
15
Needle Bearing | 4X4
705500261
Unavailable
16
Ball Bearing | 4X4
705401606
Unavailable
17
Ball Bearing | 4X4
293350044
Unavailable
18
Ens Differentiel*Differential Kit | 4X4
703500871
Unavailable
19
GEAR, 36 TEETH - Call your local BRP dealership | 4X4
705400192
Unavailable
20
RING GEAR SCREW - Call your local BRP dealership | 4X4
705400101
Unavailable
21
Screw | 4X4
705401601
Unavailable
22
FRONT COVER - Call your local BRP dealership
705400762
Unavailable
23
Seal | 4X4
705500265
Unavailable
24
Front Cover
705400646
Unavailable
25
VENT VALVE - Call your local BRP dealership | 4X4
705500893
Unavailable
26
Drain Plug | 4X4
705500894
Unavailable
28
RETAINING RING - Call your local BRP dealership | 4X4
705500269
Unavailable
29
O-Ring | 4X4
705500267
Unavailable
30
Gasket | 4X4
705401618
Unavailable
31
Pinion Gear Shim 1.67 mm
705502061
Unavailable
32
Pinion Gear Shim .022"
705500075
Unavailable
33
Shim | 4X4
705401604
Unavailable
34
Shim | 4X4
705401604
Unavailable
35
Shim | 4X4
705401604
Unavailable
36
Fill Level Plug | 4X4
705500504
Unavailable
37
Copper Washer | 4X4
705500506
Unavailable
38
RH Half Shaft | Includes 34 to 39
705401579
Unavailable
39
CV Joint
705500560
Unavailable
40
Wheel Boot Kit
705400511
Unavailable
41
Differential Boot Kit
705400512
Unavailable
42
RH Plunging Joint
705400513
Unavailable
43
CIRCLIP - Call your local BRP dealership | 4X4
705400042
Unavailable
44
LH KNUCKLE - Call your local BRP dealership
705400820
Unavailable
45
RH KNUCKLE - Call your local BRP dealership
705400821
Unavailable
46
LH Half Shaft | Includes 42 to 47
705401578
Unavailable
47
CV Joint
705500560
Unavailable
48
Wheel Boot Kit
705400511
Unavailable
49
Differential Boot Kit
705400512
Unavailable
50
LH Plunging Joint
705400514
Unavailable
51
CIRCLIP - Call your local BRP dealership | 4X4
705400042
Unavailable
52
Ball Bearing
293350150
Unavailable
53
Circlip
293370019
Unavailable
54
Hex. Flange Screw M10 X 125
230602546
Unavailable
55
Hex. Flange Elastic Nut M10
233201436
Unavailable
56
EXTERNAL WEAR SLEEVE - Call your local BRP dealership | 2X4
705501122
Unavailable
57
WHEEL HUB ASS'Y - Call your local BRP dealership | 2X4 / Includes 63 to 64
705401040
Unavailable
58
Wheel Stud M10 X 1.25 | 2X4
250300055
Unavailable
59
Conical Spring Washer M18
250200171
Unavailable
60
Hex. Flange Castellated Nut M18
232291413
Unavailable
61
Cotter Pin
250400036
Unavailable
62
Rubber Bellow | 4X4
705400552
Unavailable
63
Oetiker Clamp
293650042
Unavailable
64
TIRE_205/80R12 F - Call your local BRP dealership | Europe & International
705400475
Unavailable
64
Tire | North America
705400600
Unavailable
65
Front Rim
705400506
Unavailable
66
Rim Valve With Cap
705400193
Unavailable
67
ADHESIVE WEIGHT, 1/2 OZ - Call your local BRP dealership
705500824
Unavailable
68
Chrome Wheel Nut M10 X 1.25 | XT
250100185
Unavailable
69
Washer
211200041
Unavailable
70
Hex. Flange Screw M8 X 16, Scotch Grip
207581646
Unavailable
71
Wear Sleeve
705400780
Unavailable
72
Flat Washer M10 | 4X4
250200014
Unavailable
73
Flange Screw M10 X 16, Scotch Grip | 4X4
250000060
Unavailable
74
JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4
779221
Unavailable
75
Synthetic Grease, 400 G
293550010
Unavailable
