06- Hydraulic Brakes

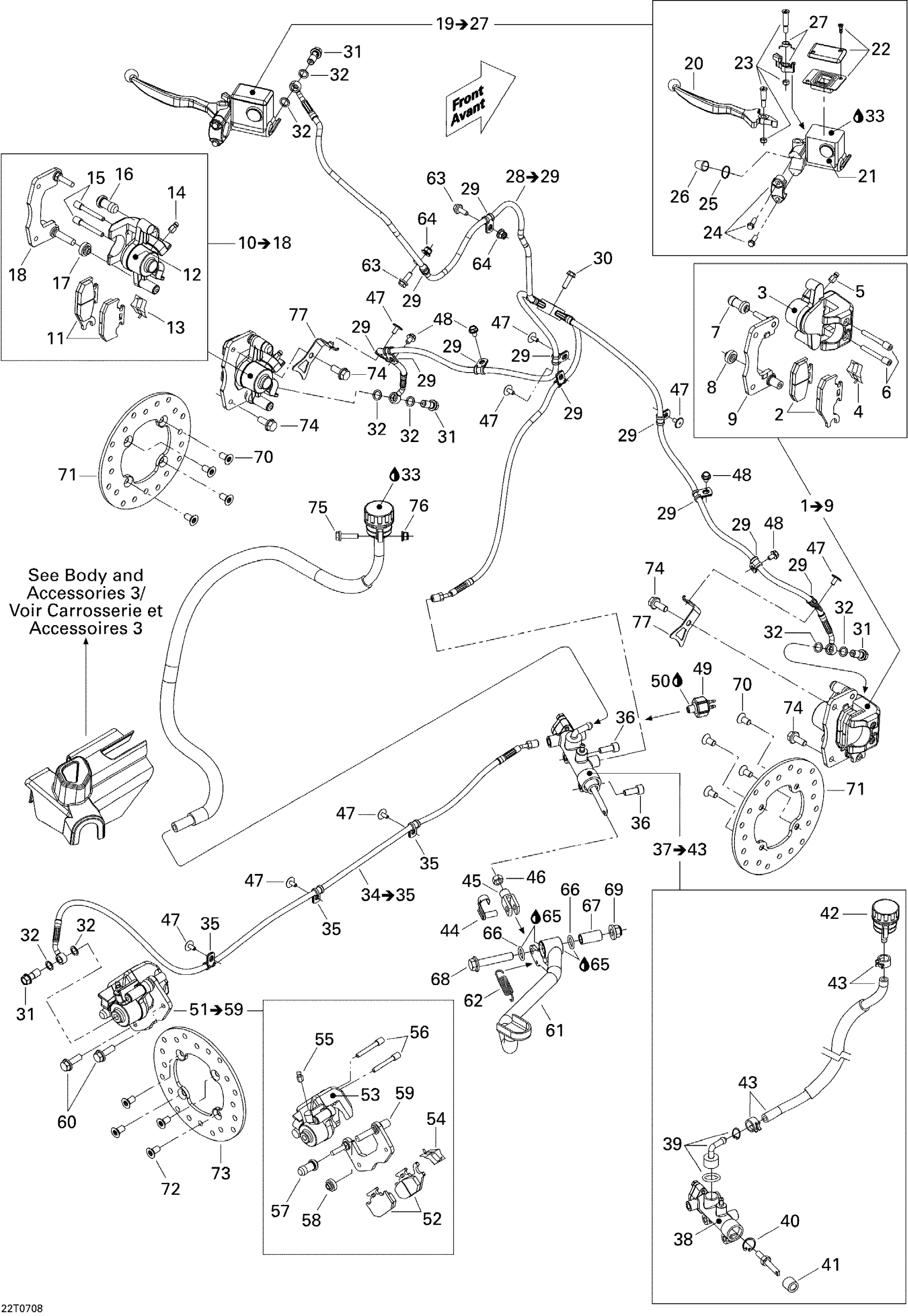

Can-Am Renegade 800 EFI, 2007 06- Hydraulic Brakes Diagram
#
1
RH CALIPER - Call your local BRP dealership | Includes 1 to 9
705600593
Unavailable
2
Brake Pad Kit
705600004
Unavailable
3
Piston Set
705600078
Unavailable
4
Spring
705600079
Unavailable
5
Bleeding Screw
705600080
Unavailable
6
Pin Set (2)
705600081
Unavailable
7
Compression Boot
705600082
Unavailable
8
Compression Boot
705600083
Unavailable
9
RH Caliper Support
705600299
Unavailable
10
LH CALIPER - Call your local BRP dealership | Includes 10 to 18
705600594
Unavailable
11
Brake Pad Kit
705600014
Unavailable
12
Piston Set
705600078
Unavailable
13
Spring
705600079
Unavailable
14
Bleeding Screw
705600080
Unavailable
15
Pin Set (2)
705600081
Unavailable
16
Compression Boot
705600082
Unavailable
17
Compression Boot
705600083
Unavailable
18
LH CALIPER SUPPORT - Call your local BRP dealership
705600298
Unavailable
19
Front Master Cylinder | Includes 19 to 26
705600844
Unavailable
20
Lever Arm
705600243
Unavailable
21
PISTON KIT - Call your local BRP dealership
705600244
Unavailable
22
Cap Set
705600084
Unavailable
23
Brake Lever Bolt Kit
705600246
Unavailable
24
BRACKET KIT - Call your local BRP dealership
705600087
Unavailable
25
CIRCLIP - Call your local BRP dealership
705600088
Unavailable
26
COMPRESSION BOOT - Call your local BRP dealership
705600089
Unavailable
27
PARKING KIT, BRAKE LEVER LOCK - Call your local BRP dealership
705600477
Unavailable
28
FRONT HOSE - Call your local BRP dealership | Includes 28 to 29
705600528
Unavailable
29
Clamp
293650256
Unavailable
30
Hexagonal Head Screw
210262050
Unavailable
31
Banjo Bolt (M10 x 1.25 thread)
705600609
Unavailable
32
Copper Washer
705601628
Unavailable
33
HYDRAULIC OIL - Call your local BRP dealership
293600131
Unavailable
34
REAR HOSE - Call your local BRP dealership | Includes 34 to 45
705600383
Unavailable
35
Clamp
293650256
Unavailable
36
Socket Head Screw M8 X 20, Scotch Grip
250000136
Unavailable
37
Rear Master Cylinder | Includes 33 to 40
705600254
Unavailable
38
Piston Set
705600255
Unavailable
39
PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership
705600064
Unavailable
40
Circlip
705600068
Unavailable
41
Compression Boot
705600090
Unavailable
42
Oil Tank, Brake Fluid Reservoir
705600182
Unavailable
43
OIL HOUSING HOSE - Call your local BRP dealership
705600262
Unavailable
44
Pin Kit
219702305
Unavailable
45
Yoke
705600100
Unavailable
46
Hex. Nut M8
232081414
Unavailable
47
Pop Rivet 3/16"
390406500
Unavailable
48
Hex. Flange Screw M6 X 10
210261040
Unavailable
49
Interrupteur *Brake Switch
710001345
Unavailable
50
Was 293800013 Loctite 56765
219704454
Unavailable
51
Rear Caliper | Includes 48 to 56
705600577
Unavailable
52
LH Brake Pad Kit
705600398
Unavailable
53
Piston Set
705600399
Unavailable
54
Spring
705600079
Unavailable
55
Bleeding Screw
705600080
Unavailable
56
Pin Set (2)
705600081
Unavailable
57
Compression Boot
705600082
Unavailable
58
Compression Boot
705600083
Unavailable
59
LH CALIPER SUPPORT - Call your local BRP dealership
705600298
Unavailable
60
Hex. Flange Screw M8 X 25, Scotch Grip
207582544
Unavailable
61
BRAKE PEDAL, BLACK - Call your local BRP dealership
705601154
Unavailable
62
BREAK PEDAL SPRING - Call your local BRP dealership
705600098
Unavailable
63
Hex. Flange Screw M6 X 16
207661644
Unavailable
64
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
65
Synthetic Grease, 400 G
293550010
Unavailable
66
O-RING - Call your local BRP dealership
293300053
Unavailable
67
SPACER - Call your local BRP dealership
705600283
Unavailable
68
Hex. Flange Screw M10 X 55
207605544
Unavailable
69
Hex. Flange Elastic Nut M10
233201414
Unavailable
70
Torx Screw M8 X 16, Scotch Grip
235381646
Unavailable
71
Disk Brake
705600604
Unavailable
72
Torx Screw M8 X 16, Scotch Grip
235381646
Unavailable
73
Disk Brake
705600604
Unavailable
74
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
75
Hex. Flange Screw M6 X 25
207662544
Unavailable
76
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
77
BRACKET - Call your local BRP dealership
705600620
Unavailable
