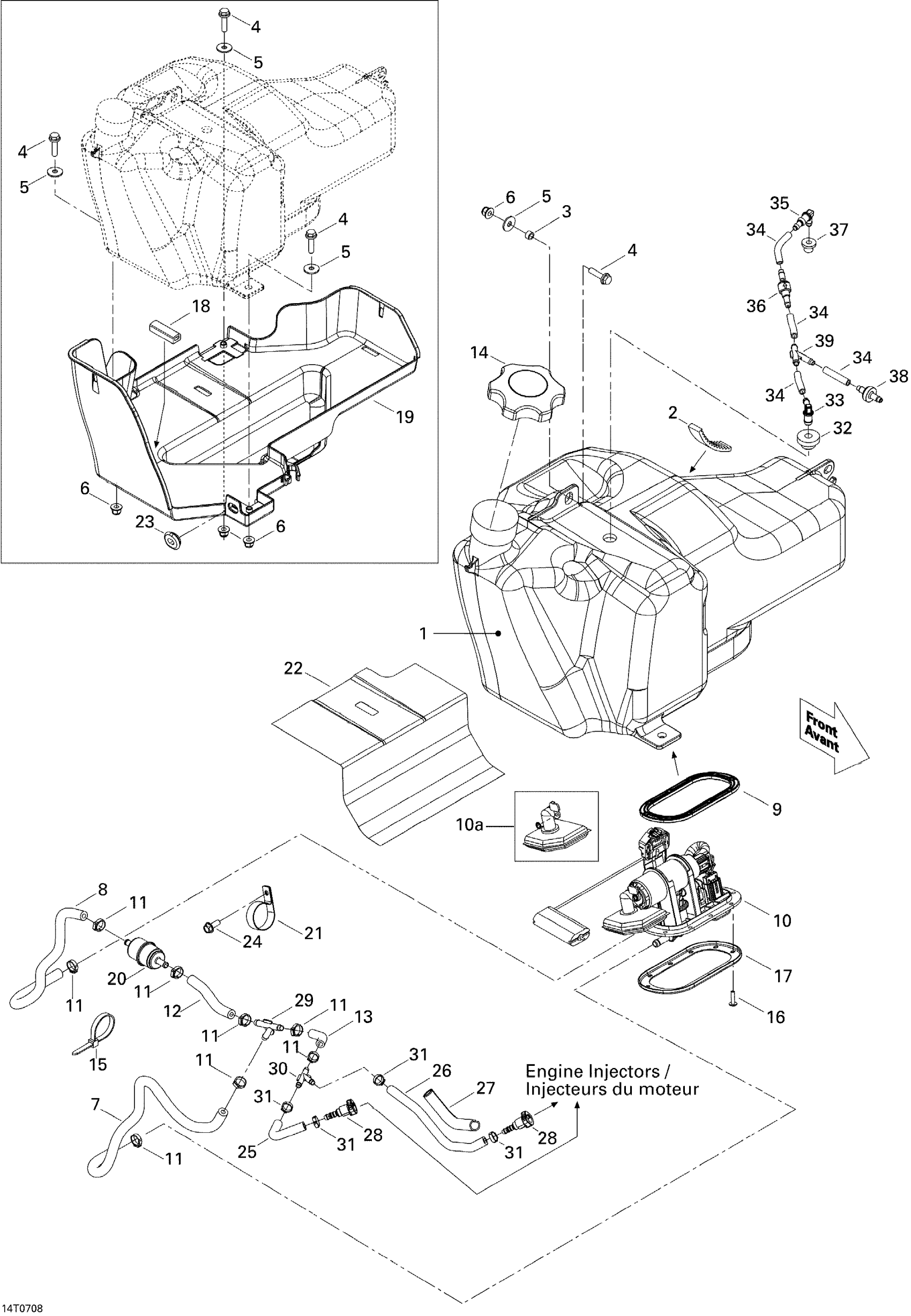

Can-Am Renegade 800 EFI, 2007 Fuel System Diagram

#

Description
Price

1

Fuel Tank

709000084

Unavailable

2

Vinyl Strip

709000153

Unavailable

3

Bushing | DS 650 X

293900104

$5.10

4

Hex. Flange Screw M6 X 25

207662544

$0.61

5

Flat Washer

250200082

$0.40

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

7

FUEL LINE - Call your local BRP dealership

709000516

Unavailable

8

FUEL LINE - Call your local BRP dealership

709000516

Unavailable

9

Joint Etanche *Gasket

709000540

$34.30

10

Fuel Pump

703500771

Unavailable

10a

Not Available As Spare Part - Friction Washer

Unavailable

11

Oetiker Clamp

293650046

$2.67

12

FUEL LINE - Call your local BRP dealership

709000516

Unavailable

13

FUEL LINE - Call your local BRP dealership

709000516

Unavailable

14

Fuel Tank Cap

513033025

$22.36

15

Tie-Rap 180 mm

414115200

$0.10

16

Torx Screw M4 X 16

250000750

$1.57

17

Pump Ring

709000170

$14.90

18

Was 293200017 Neoprene Seal

219704365

$135.79

19

TANK PROTECTOR - Call your local BRP dealership

709000207

Unavailable

20

Fuel Filter

513034047

$35.99

21

Open Clamp

513033047

$4.73

22

REFLECTIVE SHEET - Call your local BRP dealership

709000149

Unavailable

23

Oval Washer

705005156

$4.70

24

Hex. Flange Screw M6 X 12

210261250

$1.79

25

FUEL LINE - Call your local BRP dealership

709000516

Unavailable

26

FUEL LINE - Call your local BRP dealership

709000516

Unavailable

27

Was 409901800 Tubing (13 mm)

219704400

$10.79

28

Female Quick Fitting Ass'y

709000125

$12.76

29

Y-Fitting, 5/16''

293710136

$5.76

30

Y-Fitting, 5/16''

293710136

$5.76

31

Oetiker Clamp

293650046

$2.67

32

Grommet

293830136

$8.04

33

Male Connector

414580700

$3.88

34

Polyurethane Hose 10000Mm Long

219704410

$52.96

35

Elbow Male Connector

414580600

$4.01

36

Check Valve

275500505

$29.07

37

Grommet

293720029

$1.30

38

Check Valve

275500398

$9.84

39

Y-Fitting

293710059

$9.40
