01- Intake Manifold And Throttle Body RENEGADE 800EFI

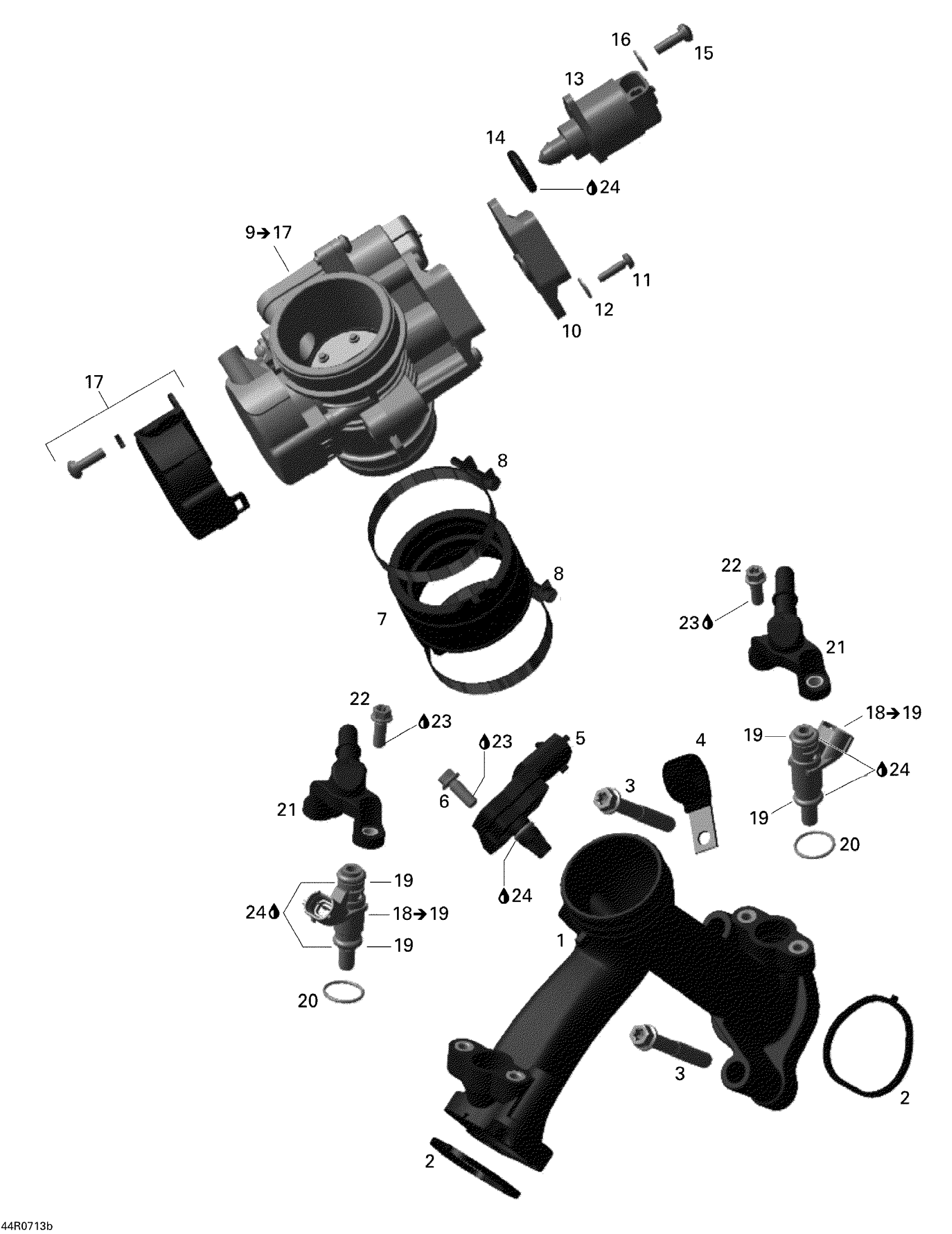

Can-Am Renegade 800 EFI, 2007 01- Intake Manifold And Throttle Body RENEGADE 800EFI Diagram
#
Description
Price
1
Air Intake Manifold
420667250
Unavailable
2
Gasket
420630640
Unavailable
3
Torx Flange Screw M8 X 55
420641213
Unavailable
4
CABLE CLAMP - Call your local BRP dealership
420251815
Unavailable
5
Pressure And Temperature Sensor
707000995
Unavailable
6
Torx Flange Screw M6 X 16
420641048
Unavailable
7
Intake Adaptor
420267480
Unavailable
8
Clamp
420251480
Unavailable
9
Throttle Body Ass'y | Includes 8 to 16
420685326
Unavailable
10
Position Sensor
420866120
Unavailable
11
Phillips Screw M4 X 16
208641660
Unavailable
12
Flat Washer 4 mm, Stainless
234042600
Unavailable
13
Idle Air Control Valve
420665941
Unavailable
14
O-Ring
420631780
Unavailable
15
Binding Head Screw M5 X 16
420440911
Unavailable
16
Snap Ring
420845710
Unavailable
17
Cover Kit
420281540
Unavailable
18
Injection Valve
420874402
Unavailable
19
O-Ring
420631220
Unavailable
20
O-Ring
420631296
Unavailable
21
Fuel Rail
420874901
Unavailable
22
Torx Flange Screw M6 X 16
420641048
Unavailable
23
Loctite 243, 10 ml
293800060
Unavailable
24
Not Available As Spare Part - Friction Washer
Unavailable
