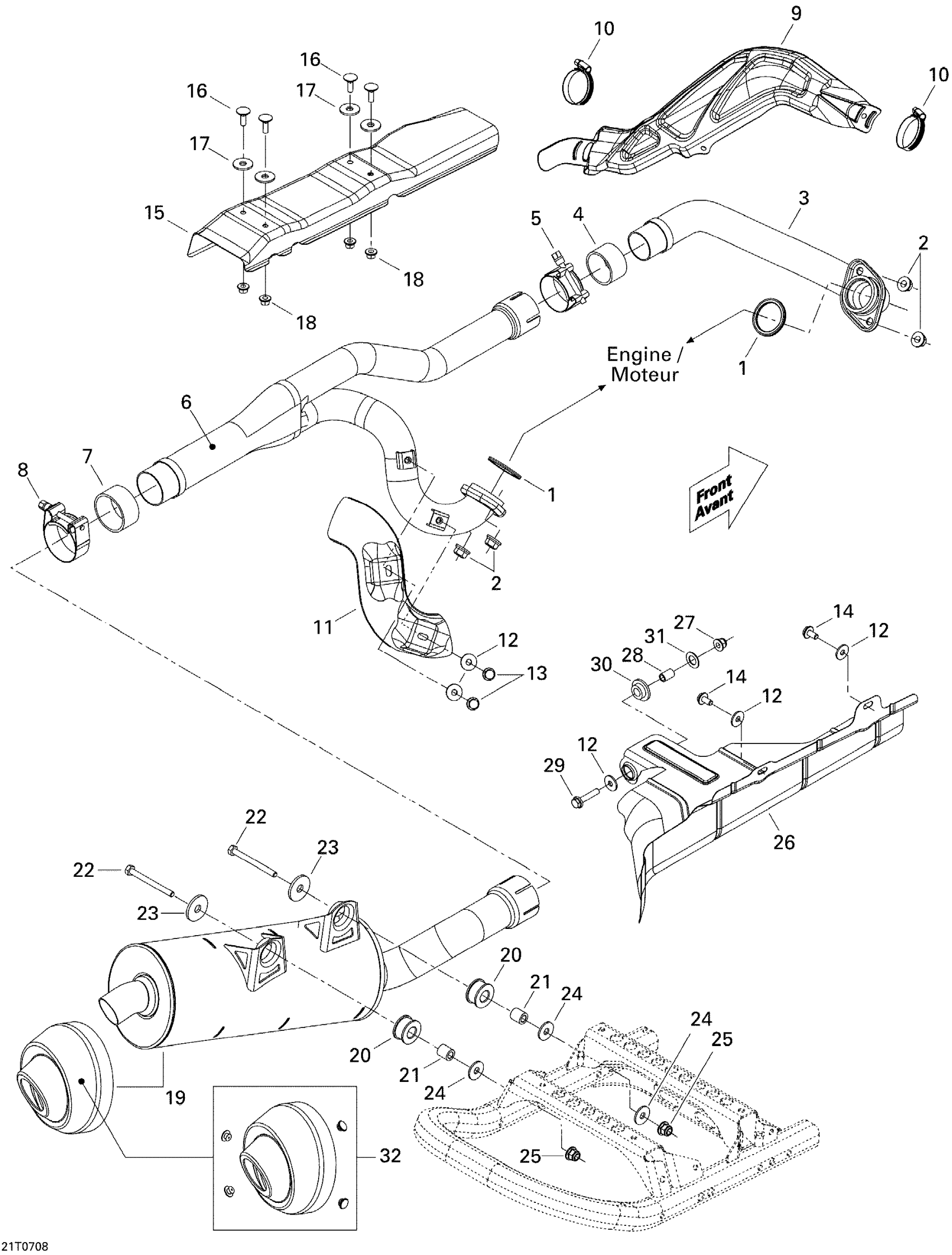

Can-Am Renegade 800 EFI, 2007 Exhaust System Diagram

#

Description
Price

1

Gasket

707600317

$11.60

2

Hex. Flange Nut M8

233081416

$1.15

3

Tuned Pipe

707600419

Unavailable

4

PIPE GASKET - Call your local BRP dealership

707600425

Unavailable

5

NORMA GEAR CLAMP - Call your local BRP dealership

293650176

Unavailable

6

TUNED PIPE - Call your local BRP dealership

707600421

Unavailable

7

Pipe Gasket

707600430

$19.49

8

Norma Gear Clamp

293650177

$10.49

9

Heat Shield

707600889

$36.99

10

Norma Gear Clamp

293650098

$4.44

11

PROTECTOR - Call your local BRP dealership

707600615

Unavailable

12

Flat Washer

250200082

$0.42

13

HEX. FLANGED SCREW M6 X 12 - Call your local BRP dealership

250000073

Unavailable

14

Hex. Flange Screw M6 X 12

210261250

$1.90

15

HEAT SHIELD - Call your local BRP dealership

707600700

Unavailable

16

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

17

Flat Washer 8 mm

234082410

$1.47

18

Hex. Flange Nut M6

233061414

$1.68

19

Muffler

707600413

Unavailable

19

MUFFLER_EXHAUST - Call your local BRP dealership | Europe

707600579

Unavailable

20

Vibration Damper

707603323

$11.65

21

Bushing

293900106

$4.55

22

Hex. Screw M8 X 70

207087044

$2.19

23

Washer

503032900

$3.28

24

Flat Washer 8 mm

234082410

$1.47

25

Hex. Flange Elastic Nut M8

233281414

$1.47

26

Protector

707600621

$60.49

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

28

Sleeve

293900078

$13.71

29

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

30

Grommet

705003932

$2.89

31

Washer

503175800

$3.28

32

MUFFLER CAP KIT - Call your local BRP dealership

703500701

Unavailable
