01- Cooling System

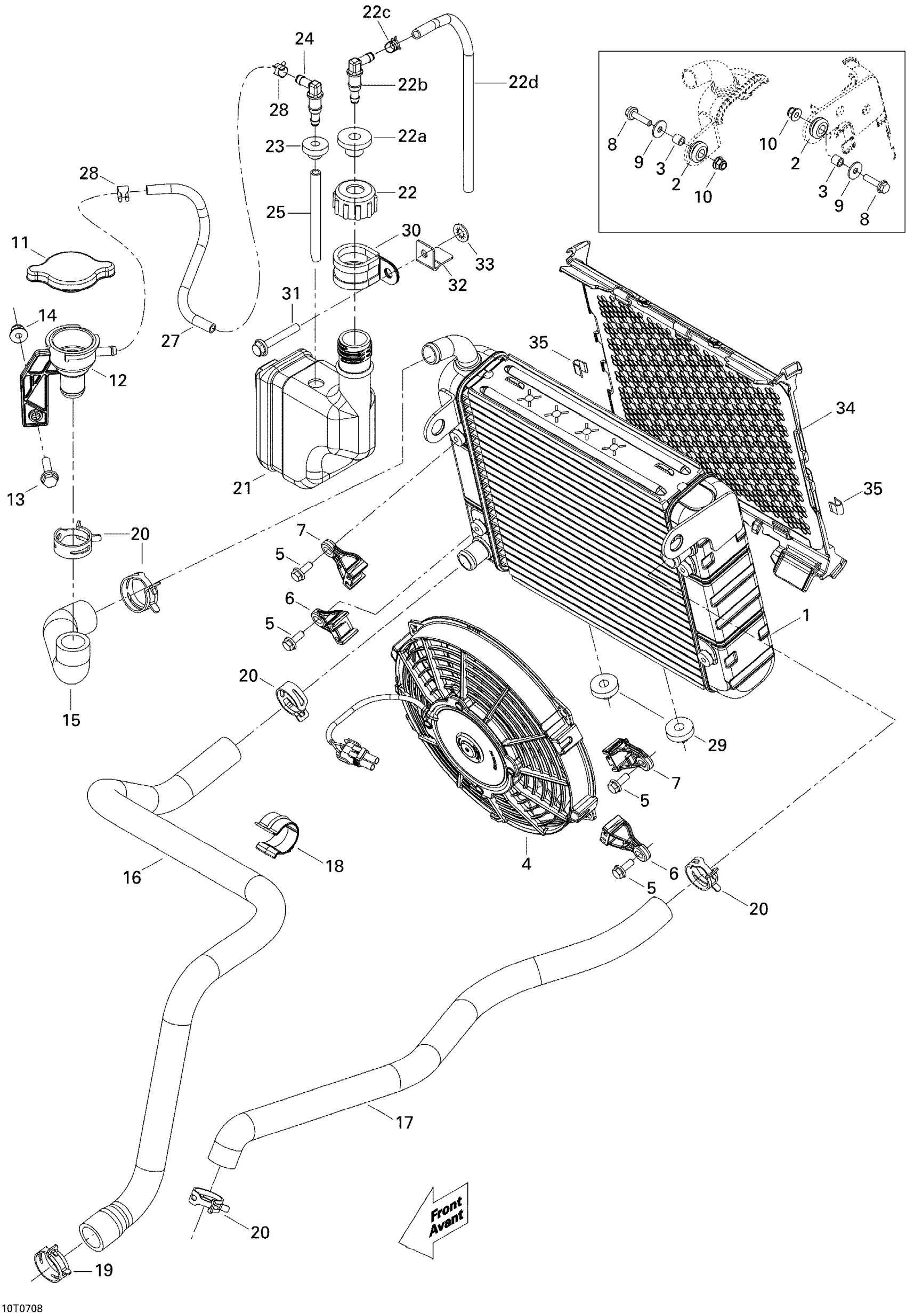

Can-Am Renegade 800 EFI, 2007 01- Cooling System Diagram
#
1
RADIATOR - Call your local BRP dealership
709200411
Unavailable
2
Grommet
709000582
Unavailable
3
Bushing
293900105
Unavailable
4
Fan
709200124
Unavailable
5
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
6
FAN SUPPORT - Call your local BRP dealership
709200125
Unavailable
7
FAN SUPPORT - Call your local BRP dealership
709200126
Unavailable
8
Hex. Flange Screw M6 X 25
207662544
Unavailable
9
Flat Washer
250200082
Unavailable
10
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
11
Radiator Pressure Cap
709200207
Unavailable
12
Filler Neck
709200179
Unavailable
13
Hex. Flange Screw M6 X 25
207662544
Unavailable
14
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
15
FILLER NECK HOSE - Call your local BRP dealership
709200180
Unavailable
17
INLET HOSE - Call your local BRP dealership
709200182
Unavailable
18
Retainer
275500526
Unavailable
16
Outlet Radiator Hose
709200181
Unavailable
19
Norma Spring Clamp
293650108
Unavailable
20
Norma Spring Clamp
293650109
Unavailable
21
COOLANT TANK - Call your local BRP dealership
709200099
Unavailable
22
Cap
709200586
Unavailable
22a
Grommet
293830136
Unavailable
22b
Male Connector
414580700
Unavailable
22c
Spring Clamp
414554800
Unavailable
22d
Polyurethane Hose 10000Mm Long
219704410
Unavailable
23
Grommet
709200285
Unavailable
24
Elbow Male Connector
414580600
Unavailable
25
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
27
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
28
Spring Clamp
414554800
Unavailable
29
Grommet
709200285
Unavailable
30
Hose Anchor
709200036
Unavailable
31
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
Unavailable
32
BRACKET - Call your local BRP dealership
709200196
Unavailable
33
Push Nut
732610072
Unavailable
34
RADIATOR PROTECTOR - Call your local BRP dealership | Includes 34, 35
709200187
Unavailable
35
Clip
414479100
Unavailable
