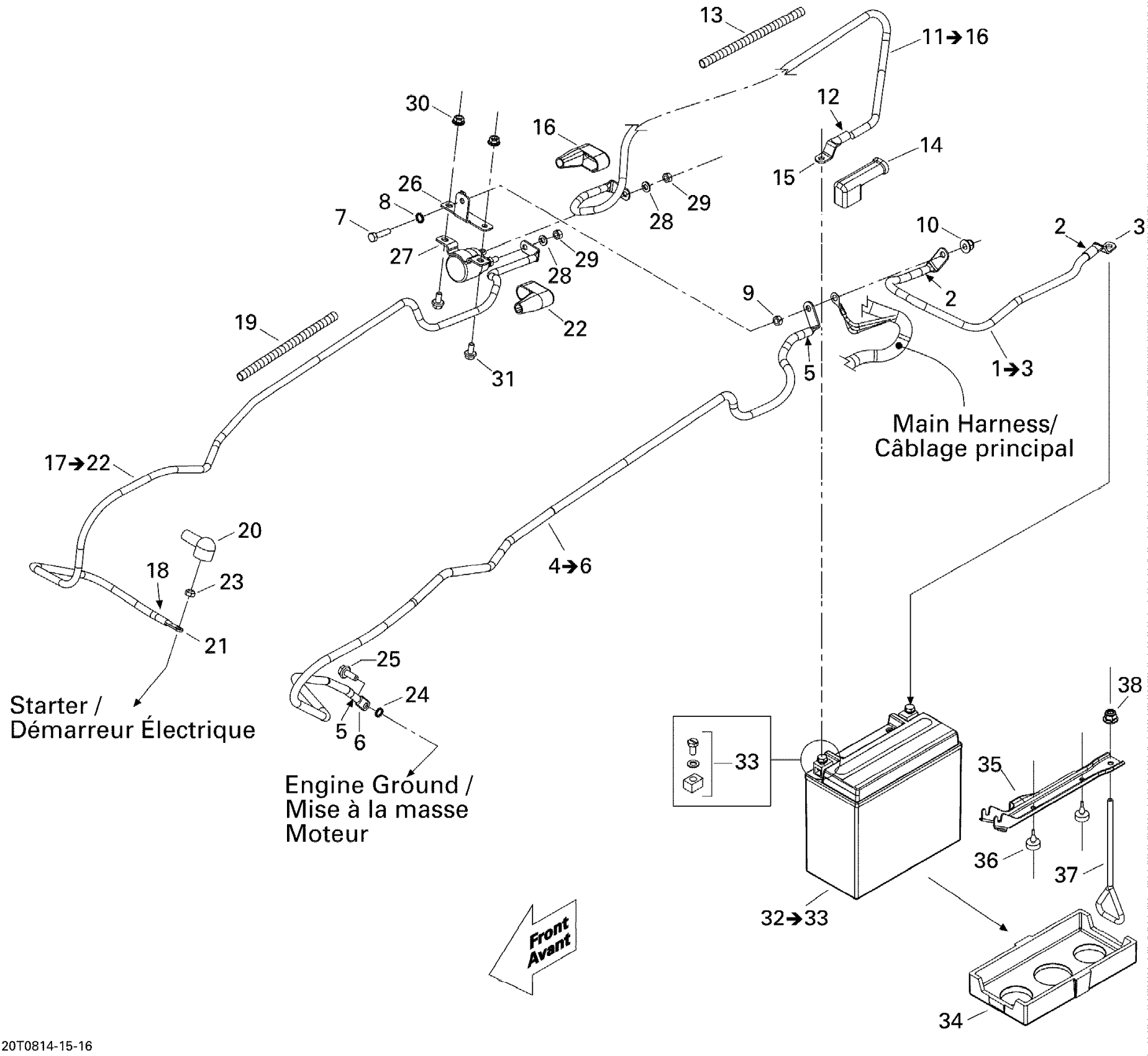

Can-Am Renegade 800, 2008 10- Electrical System Diagram

#

Description
Price

1

Ground Cable Ass'y, Battery/Frame | Includes 1 to 4

710000830

Unavailable

2

Was 710000483 Heat Shrink Tubing

219704447

Unavailable

3

Open Barrel | STD Models

710000518

Unavailable

4

GROUND CABLE ASS'Y - Call your local BRP dealership | Includes 5 to 8

710000831

Unavailable

5

Was 710000483 Heat Shrink Tubing

219704447

Unavailable

6

Open Barrel

710000530

Unavailable

7

Hex. Screw M6 X 25

207162544

Unavailable

8

External Serrated Lock Washer 6 mm

234461608

Unavailable

9

Hex. Nut M6

232061414

Unavailable

10

Hex. Flange Nut M6

233061414

Unavailable

11

Positive Cable Ass'y | STD, Includes 22 to 28

710001822

Unavailable

12

Was 710000483 Heat Shrink Tubing

219704447

Unavailable

13

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

14

Protector Cap | STD Models

710001829

Unavailable

15

Open Barrel | STD Models

710000518

Unavailable

16

Protector Cap | STD

710001817

Unavailable

17

POSITIVE CABLE ASS'Y - Call your local BRP dealership | Includes 30 to 36

710001818

Unavailable

18

Was 710000483 Heat Shrink Tubing

219704447

Unavailable

19

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

20

Protector Cap

710000526

Unavailable

21

Open Barrel

710000530

Unavailable

22

Protector Cap | STD

710001817

Unavailable

23

Elastic Stop Nut M6

232561414

Unavailable

24

External Serrated Lock Washer 6 mm

234461608

Unavailable

25

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

26

SOLENOID SUPPORT - Call your local BRP dealership

710001260

Unavailable

27

Starter Relay

710007777

Unavailable

28

Lock Washer Helical M6

234161601

Unavailable

29

Hex. Nut M6

232061600

Unavailable

30

Hex. Flange Nut M6

233061414

Unavailable

31

Hex. Flange Screw M6 X 12

207661244

Unavailable

32

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

Unavailable

33

Battery Bolt Kit

250000282

Unavailable

34

INSULATOR PAD - Call your local BRP dealership

710000279

Unavailable

35

FIXATION PLATE - Call your local BRP dealership

710001019

Unavailable

36

Rubber Stopper

708000759

Unavailable

37

Hook

710001107

Unavailable

38

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable
