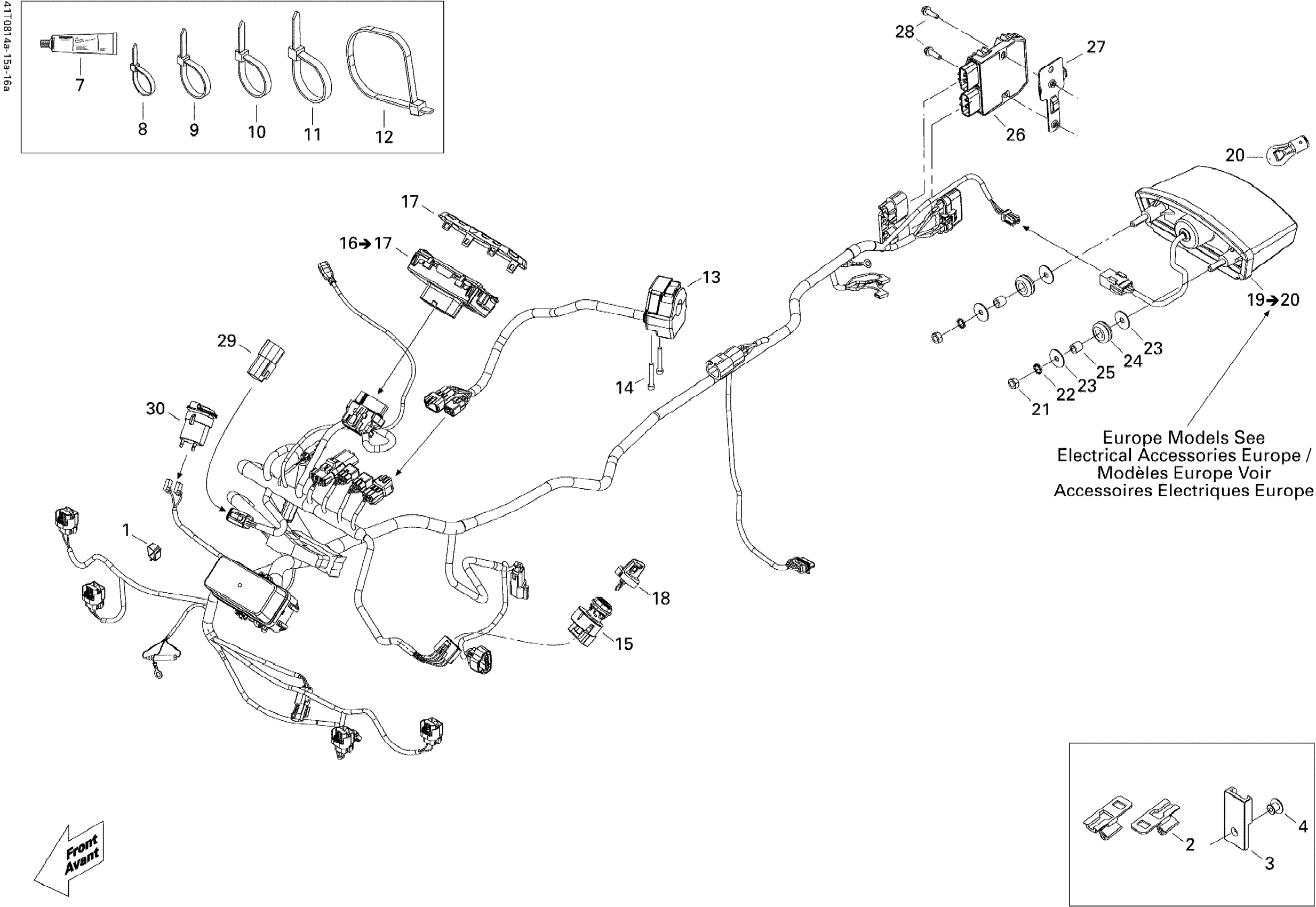

Can-Am Renegade 800, 2008 Electrical Accessories Diagram

#

Description
Price

1

Clip

414227300

$1.40

2

Housing Support

515175283

$8.18

3

Clip

270000141

$9.57

4

Pop Rivet 3/16"

390402400

$0.28

7

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

8

Tie Wrap 94 mm | 4X4

293750001

$0.96

9

Tie-Rap 173 mm

293750009

$0.97

10

Tie-Rap 180 mm

414115200

$0.10

11

Tie Wrap 368 mm

293750008

$0.97

12

Tie-rap 627 mm

293750041

$0.87

13

Multi-Fonction Handle

710000791

$108.18

14

Socket Head Screw M5 X 35

205053588

$1.79

15

Ignition Switch | Includes 16 to 17

710002324

$75.34

16

Calibrated Speedometer | Includes 16 to 17

710003288

$314.90

17

Trim Ring Ass'y

710001183

$17.88

18

Black, Electronic Key

710000817

$53.70

19

Tail Light Ass'y | Includes 19 to 20

710001041

$57.43

20

Bulb

520000758

$8.60

21

Hex. Nut M6

232061600

$1.04

22

External Serrated Lock Washer 6 mm

234461608

$1.06

23

Flat Washer

224060201

$1.12

24

Grommet

709000582

$4.25

25

Bushing

293900105

$6.07

26

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$132.99

27

RECTIFIER SUPPORT - Call your local BRP dealership

710001262

Unavailable

28

Hexagonal Head Screw

210262050

$2.00

29

Diagnostic Connector

278002704

$17.88

30

Outlet Power Kit, 12 Volts

861507200

$35.04
