09- Body And Accessories 1

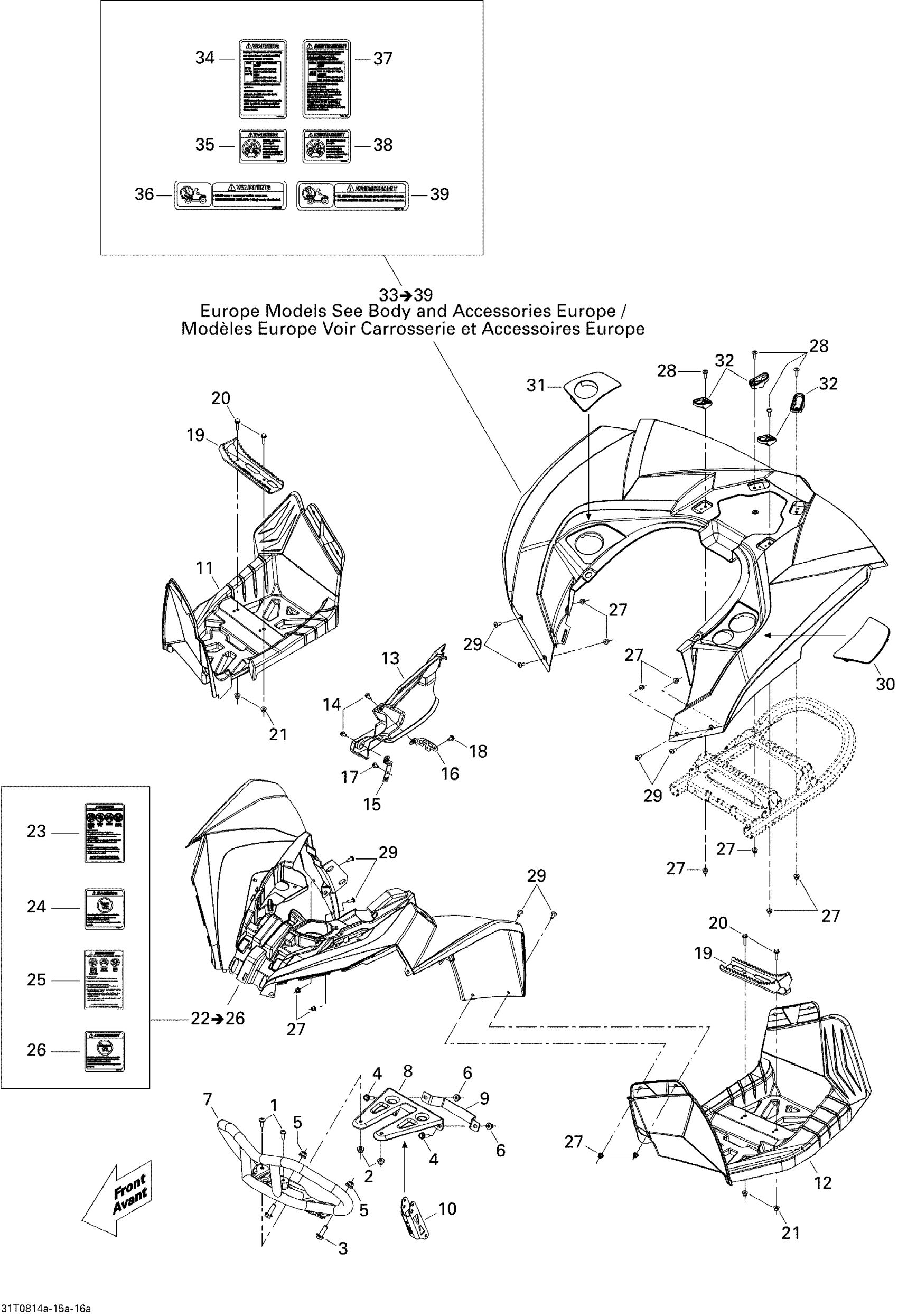

Can-Am Renegade 800, 2008 09- Body And Accessories 1 Diagram
#
1
Torx Screw M8 X 20, Scotch Grip
250000740
Unavailable
2
Hex. Flange Elastic Nut M8
233281414
Unavailable
3
Hex. Flange Screw M10 X 30
207603044
Unavailable
4
Hex. Flange Screw M8 X 25
207682544
Unavailable
5
Hex. Flange Elastic Nut M10
233201414
Unavailable
6
Hex. Flange Elastic Nut M8
233281414
Unavailable
7
Front Bumper
705003300
Unavailable
8
ATTACHE - Call your local BRP dealership
705002279
Unavailable
9
BUMPER BRACKET, BLACK - Call your local BRP dealership
705002520
Unavailable
10
Support
705002282
Unavailable
11
RH FOOTBOARD - Call your local BRP dealership
705003136
Unavailable
12
LH FOOTBOARD - Call your local BRP dealership
705003135
Unavailable
13
ENGINE COVER - Call your local BRP dealership
705003839
Unavailable
14
Hex. Flange Screw M6 X 12
210261250
Unavailable
15
Engine Cover Support
705003646
Unavailable
16
Engine Cover Support
705011461
Unavailable
17
Hex. Flange Screw M6 X 12
210261250
Unavailable
18
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
Unavailable
19
Footrest
705002326
Unavailable
20
Hex. Flange Screw M6 X 25
207662554
Unavailable
21
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
22
Yellow Front Fender Kit | Includes 22 to 26
715000737
Unavailable
23
WARNING DECAL, DEATH AND INJURIES - Call your local BRP dealership
704901878
Unavailable
24
Warning Decal, Under 16 Years Old
704900011
Unavailable
25
Warning Decal, Death And Injuries | French Version
704901441
Unavailable
26
Warning Decal, Under 16 Years Old | French Version
704900012
Unavailable
27
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
28
Torx Screw M6 x 25
250000284
Unavailable
29
Torx Screw M6 X 16
250000755
Unavailable
30
LH Rear Body Panel Cap
705017923
Unavailable
31
RH Rear Body Panel Cap
705017924
Unavailable
32
Hook
705002342
Unavailable
33
FENDER REAR B-190 KIT - Call your local BRP dealership | Includes 33 to 39
715000314
Unavailable
34
WARNING DECAL, TIRE PRESSURE - Call your local BRP dealership | English Version
704901419
Unavailable
35
WARNING DECAL, PASSENGER - Call your local BRP dealership
704900005
Unavailable
36
Warning Decal, Load | English Version
704901333
Unavailable
37
WARNING DECAL, TIRE PRESSURE - Call your local BRP dealership | French Version
704901418
Unavailable
38
Warning Decal, Passenger, French | French Version
704900006
Unavailable
39
Warning Decal, Load | French Version
704901334
Unavailable
