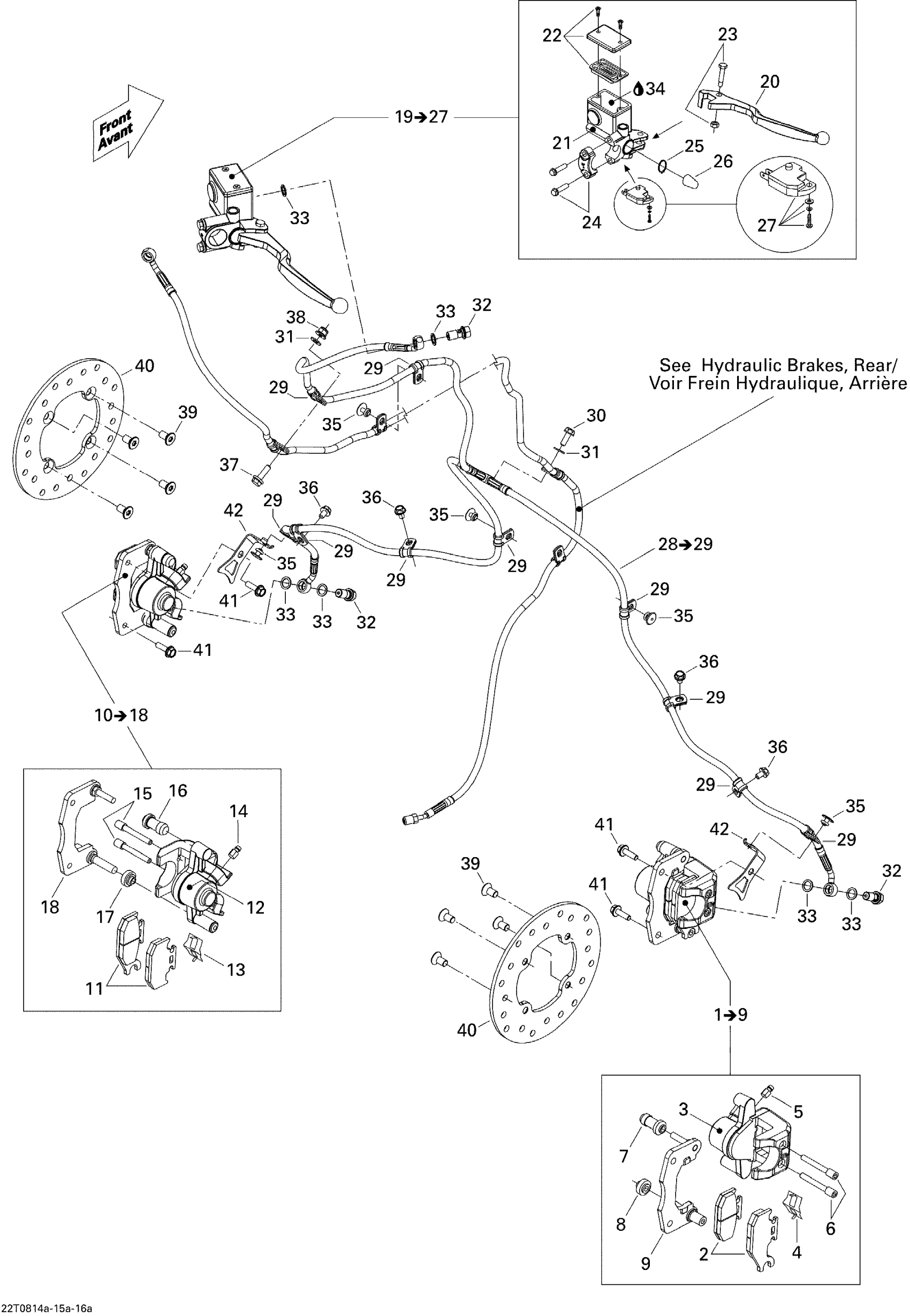

Can-Am Renegade 800, 2008 06- Hydraulic Brakes, Front Diagram

#

Description
Price

1

RH CALIPER - Call your local BRP dealership | Includes 1 to 9

705600593

Unavailable

2

Brake Pad Kit

705600004

Unavailable

3

Piston Set

705600078

Unavailable

4

Spring

705600079

Unavailable

5

Bleeding Screw

705600080

Unavailable

6

Pin Set (2)

705600081

Unavailable

7

Compression Boot

705600082

Unavailable

8

Compression Boot

705600083

Unavailable

9

RH Caliper Support

705600299

Unavailable

10

LH CALIPER - Call your local BRP dealership | Includes 10 to 18

705600594

Unavailable

11

Brake Pad Kit

705600014

Unavailable

12

Piston Set

705600078

Unavailable

13

Spring

705600079

Unavailable

14

Bleeding Screw

705600080

Unavailable

15

Pin Set (2)

705600081

Unavailable

16

Compression Boot

705600082

Unavailable

17

Compression Boot

705600083

Unavailable

18

LH CALIPER SUPPORT - Call your local BRP dealership

705600298

Unavailable

19

RH FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 19 to 27

705600596

Unavailable

20

LEVER ARM - Call your local BRP dealership

705600629

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Cap Set

705600084

Unavailable

23

BOLT KIT - Call your local BRP dealership

705600085

Unavailable

24

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

25

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

26

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

27

SWITCH KIT - Call your local BRP dealership

705600086

Unavailable

28

FRONT HOSE - Call your local BRP dealership | Includes 28 to 29

705600597

Unavailable

29

Clamp

293650256

Unavailable

30

Hex. Flange Screw M6 X 16

210261650

Unavailable

31

Flat Washer

224061121

Unavailable

32

Banjo Bolt (M10 x 1.25 thread)

705600609

Unavailable

33

Copper Washer

705601628

Unavailable

34

HYDRAULIC OIL - Call your local BRP dealership

293600131

Unavailable

35

Pop Rivet 3/16"

390406500

Unavailable

36

Hex. Flange Screw M6 X 10

210261040

Unavailable

37

Hex. Flange Screw M6 X 25

207662544

Unavailable

38

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

39

Torx Screw M8 X 16, Scotch Grip

235381646

Unavailable

40

Disk Brake

705600604

Unavailable

41

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

Unavailable

42

BRACKET - Call your local BRP dealership

705600620

Unavailable
