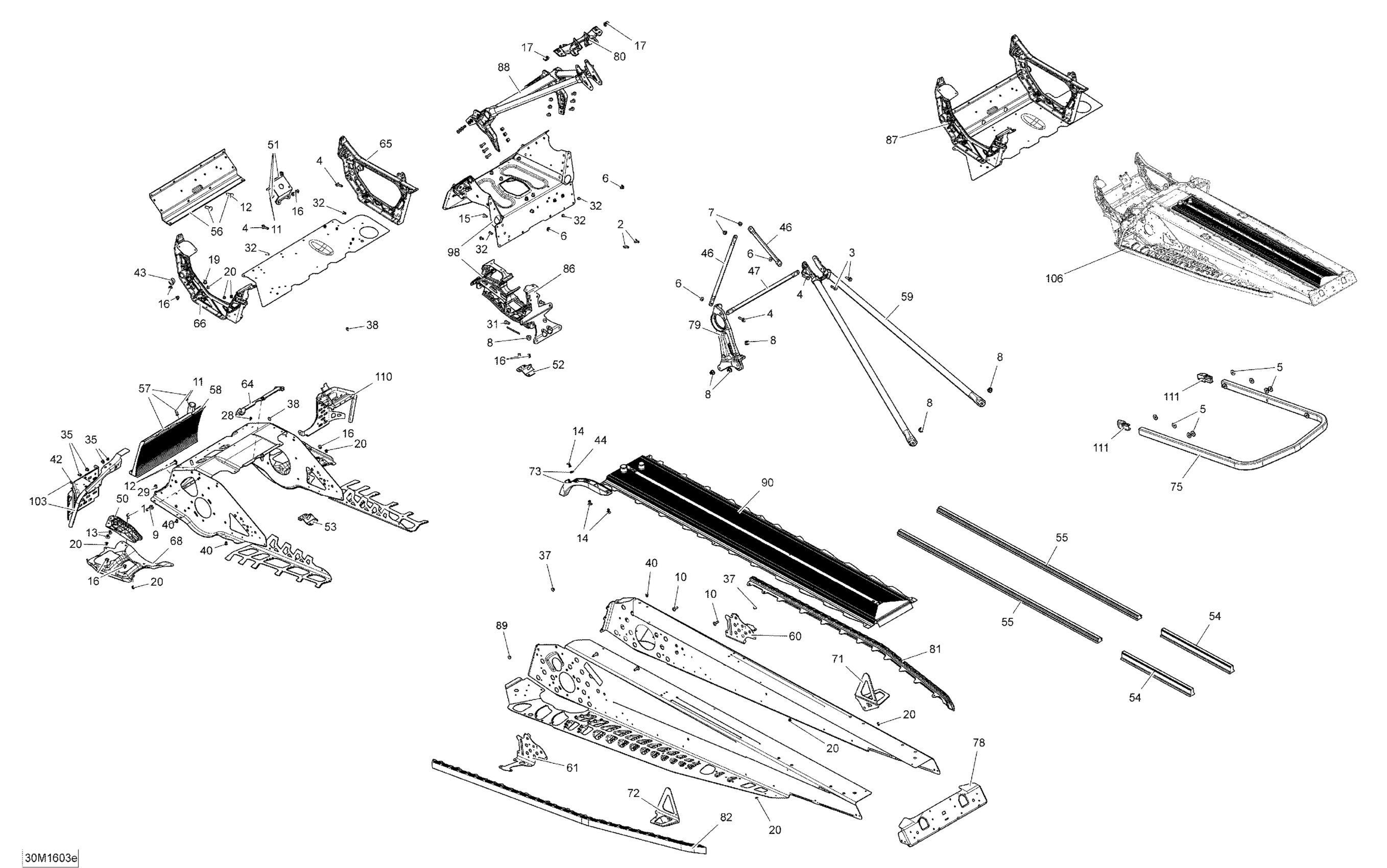

Ski-Doo RENEGADE 600HO E-TEC 000BXGA00 000BXGB00 000MDGA00 000MDGB00 000UAGA00 000UAGB00 000UAGC00 000UAGD00 000UAGE00 000UAGF00 000UAGG00 000UAGH00 000UJGA00 000UJGB00 000UJGC00 000USGA00 000USGB00 Frame - Package X-RS Diagram

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

Hex. Flange Screw M6 X 16

207661644

$0.70

Hex. Flange Screw M6 X 20

207662044

$1.91

Hex. Flange Screw M6 X 25

207662544

$0.61

Flat Washer

224061201

$1.27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Elastic Flange Nut M6 X 1.0

233261416

$2.00

Hex. Flange Elastic Nut M8

233281414

$1.31

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

Clinch Stud M6 X 20

250300027

$1.87

Clinch Stud

250300038

$3.88

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

Pop Rivet 3/16”

293150108

$1.19

Hex. Flange Screw M6 X 16

210261650

$1.40

Hemlock Rivet, 6.5 mm

293150119

$3.88

Panel Nut M5 X 0.8

250000958

$4.00

Hemlock Rivet 6.5 mm

293150120

$7.01

Stavex Rivet

293150144

$0.75

Henrob Rivet

293150146

$1.87

Hemlock Rivet, 6.4 mm

293150174

$6.24

Monobolt Rivet 6.4

293150182

$2.82

Monobolt Rivet, 4.8 mm

293150191

$0.93

Insert M5 X 0.8

293450268

$1.90

Black, Dart 8 mm

293730047

$2.07

Black Dart 5 mm

293730053

$4.28

Black, Dart 10 mm

293730060

$4.28

Full Moon Dart 5 mm

293730042

$2.06

Avex Rivet

390909100

$0.28

Avex Rivet

390909200

$0.28

Leg Cushion

505073317

$5.75

Washer

517124300

$0.18

Upper Lateral Column Support

518325114

$20.12

Center Column Support

518325115

$20.12

RH Deflector, Black Polypropylene

518325782

$11.42

LH Deflector, Black Polypropylene

518325783

$11.42

MAG Engine Support | Includes 10a to 10a1

518325943

$25.34

RH Rear Base

518325973

$17.88

LH Rear Base | Includes 10v to 10x

518325974

$17.88

Tunnel Prot. - Call Your Local BRP Dealership This part replaces 860200267.

860200802

Unavailable

Tunnel Prot. - Call Your Local BRP Dealership This part replaces 860200267.

860200802

Unavailable

Front Member

518326198

$58.18

Front Radiator | Includes 10b to 10b2

518326485

$421.61

Front Radiator | Includes 10b to 10b2

518326485

$421.61

Rear Member

518326559

$237.28

RH Front Suspension Retainer | Package Iron Dog

518326616

$38.78

LH Front Suspension Retainer | Package Iron Dog

518326617

$38.78

Seal

518326656

$8.18

RH Member

518326795

$252.21

LH Member

518326796

$204.45

RH Reinforcement, Running Board

518326937

$24.60

LH Reinforcement, Running Board

518326938

$24.60

Rh Suspension Bracket

518326954

$35.79

LH Suspension Bracket

518326955

$36.54

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$17.13

Black Rear Bumper 137'' | North America

518326979

$114.15

Rear Cap

518327105

$20.12

Driven Pulley Support This part replaces 518327133.

518327460

$99.22

Driven Pulley Support This part replaces 518327133.

518327460

$99.22

Sub A Support

518327145

$76.84

RH Roller | Package Iron Dog

518327200

$147.73

LH ROLLER - Call your local BRP dealership | Package Iron Dog

518327201

Unavailable

Front Suspension Support

518327487

$259.67

E Module | Includes 10n to 10at

518327567

$415.64

Front Member

518327565

$306.69

Henrob Rivet

293150146

$1.87

Rear Radiator 137'' | Includes 10ar to 10as

518327588

$739.52

Cross Member S Module | Package Iron Dog

518328322

$426.09

LH Stirup | Includes 10s to 10t

518328528

$155.94

FRAME ASS'Y 137' - Call your local BRP dealership | Silver-Silver Model

415129912

Unavailable

BLACK FRAME RENEGADE XRS - Call your local BRP dealership | Package XRS - Model Black

415130126

Unavailable

RH Stirup

518328940

$155.94

BLACK CAP - Call your local BRP dealership | Except Package Iron Dog

520000840

$7.45
