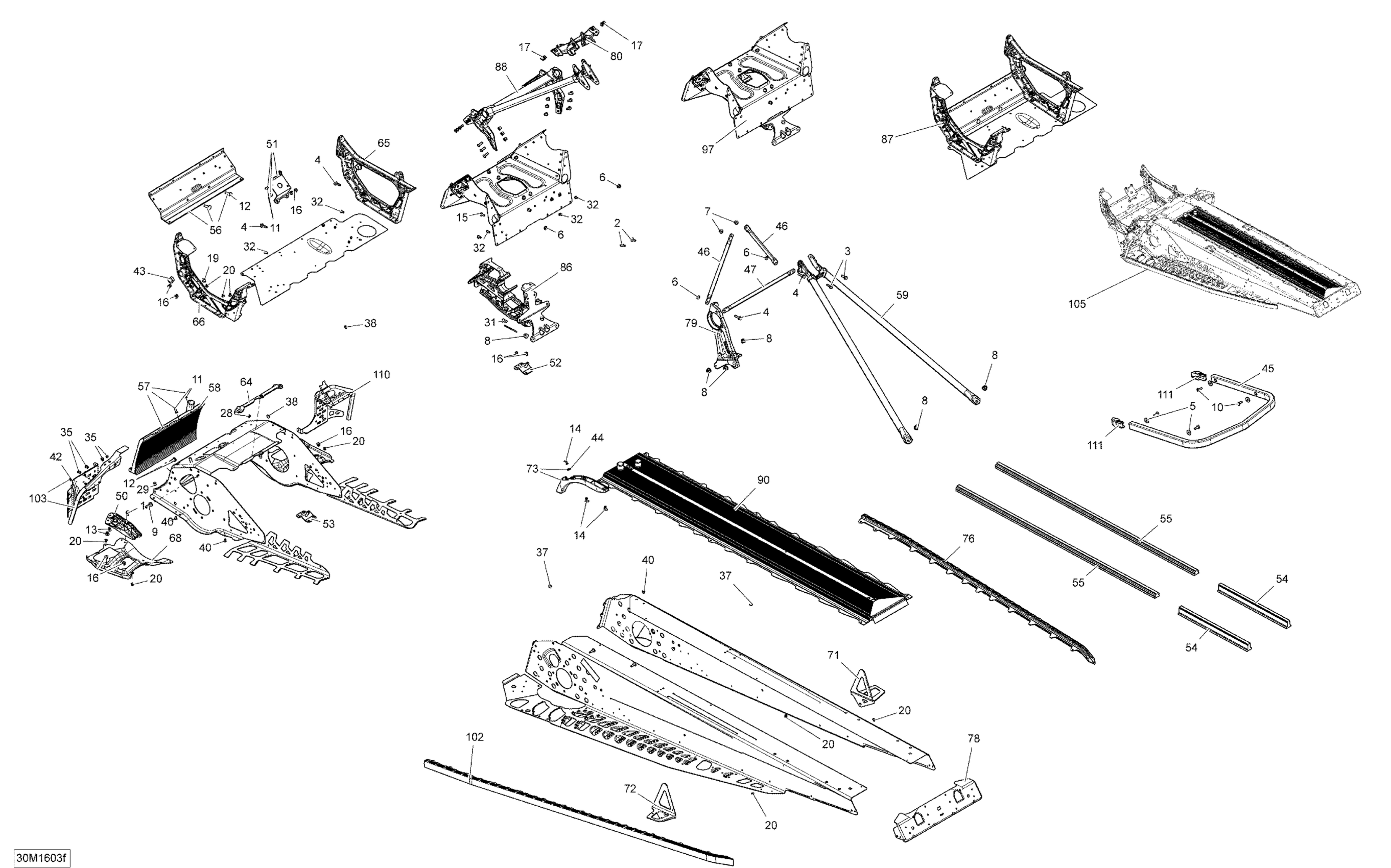

Ski-Doo RENEGADE 600HO E-TEC 000BXGA00 000BXGB00 000MDGA00 000MDGB00 000UAGA00 000UAGB00 000UAGC00 000UAGD00 000UAGE00 000UAGF00 000UAGG00 000UAGH00 000UJGA00 000UJGB00 000UJGC00 000USGA00 000USGB00 Frame - Package Enduro Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

2

Hex. Flange Screw M6 X 16

207661644

$0.70

3

Hex. Flange Screw M6 X 20

207662044

$1.91

4

Hex. Flange Screw M6 X 25

207662544

$0.61

5

Flat Washer

224061201

$1.27

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

7

Elastic Flange Nut M6 X 1.0

233261416

$2.00

8

Hex. Flange Elastic Nut M8

233281414

$1.31

9

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81

10

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

11

Clinch Stud M6 X 20

250300027

$1.87

12

Clinch Stud

250300038

$3.88

13

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

14

Pop Rivet 3/16”

293150108

$1.19

15

Hex. Flange Screw M6 X 16

210261650

$1.40

16

Hemlock Rivet, 6.5 mm

293150119

$3.88

17

Panel Nut M5 X 0.8

250000958

$4.00

19

Hemlock Rivet 6.5 mm

293150120

$7.01

20

Stavex Rivet

293150144

$0.75

28

Henrob Rivet

293150146

$1.87

29

Hemlock Rivet, 6.4 mm

293150174

$6.24

31

Monobolt Rivet 6.4

293150182

$2.82

32

Monobolt Rivet, 4.8 mm

293150191

$0.93

35

Insert M5 X 0.8

293450268

$1.90

37

Black, Dart 8 mm

293730047

$2.07

37

Black Dart 5 mm

293730053

$4.28

37

Black, Dart 10 mm

293730060

$4.28

38

Full Moon Dart 5 mm

293730042

$2.06

40

Avex Rivet

390909100

$0.28

42

Avex Rivet

390909200

$0.28

43

Leg Cushion

505073317

$5.75

44

Washer

517124300

$0.18

45

Black Rear Bumper 137"

518325481

$150.72

45

Black Rear Bumper | Europe Models

518326414

$114.15

46

Upper Lateral Column Support

518325114

$20.12

47

Center Column Support

518325115

$20.12

49

RH Deflector, Black Polypropylene

518325782

$11.42

50

LH Deflector, Black Polypropylene

518325783

$11.42

51

MAG Engine Support | Includes 10a to 10a1

518325943

$25.34

52

RH Rear Base

518325973

$17.88

53

LH Rear Base | Includes 10v to 10x

518325974

$17.88

54

Tunnel Prot. - Call Your Local BRP Dealership This part replaces 860200267.

860200802

Unavailable

55

Tunnel Prot. - Call Your Local BRP Dealership This part replaces 860200267.

860200802

Unavailable

56

Front Member

518326198

$58.18

57

Front Radiator | Includes 10b to 10b2

518326485

$421.61

58

Front Radiator | Includes 10b to 10b2

518326485

$421.61

59

Rear Member

518326559

$237.28

64

Seal

518326656

$8.18

65

RH Member

518326795

$252.21

66

LH Member

518326796

$204.45

67

RH Reinforcement, Running Board

518326937

$24.60

68

LH Reinforcement, Running Board

518326938

$24.60

71

Rh Suspension Bracket

518326954

$35.79

72

LH Suspension Bracket

518326955

$36.54

73

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$17.13

76

RH Roller

518327093

$76.99

78

Rear Cap

518327105

$20.12

79

Driven Pulley Support This part replaces 518327133.

518327460

$99.22

79

Driven Pulley Support This part replaces 518327133.

518327460

$99.22

80

Sub A Support

518327145

$76.84

83

Front Member

518327565

$306.69

86

Front Suspension Support

518327487

$259.67

87

E Module | Includes 10n to 10at

518327567

$415.64

90

Rear Radiator 137'' | Includes 10ar to 10as

518327588

$739.52

97

Cross Member S Module | Includes 300a to 300b

518328320

$445.49

102

LH Roller

518328429

$170.12

103

LH Stirup | Includes 10s to 10t

518328528

$155.94

105

BLACK FRAME ENDURO XS - Call your local BRP dealership | Package Enduro Deep Black Models

415130127

Unavailable

110

RH Stirup

518328940

$155.94

111

BLACK CAP - Call your local BRP dealership | Except Package Iron Dog

520000840

$7.45

112

Black RH Cap

520000965

$8.70

112

Black LH Cap

520000964

$8.70
