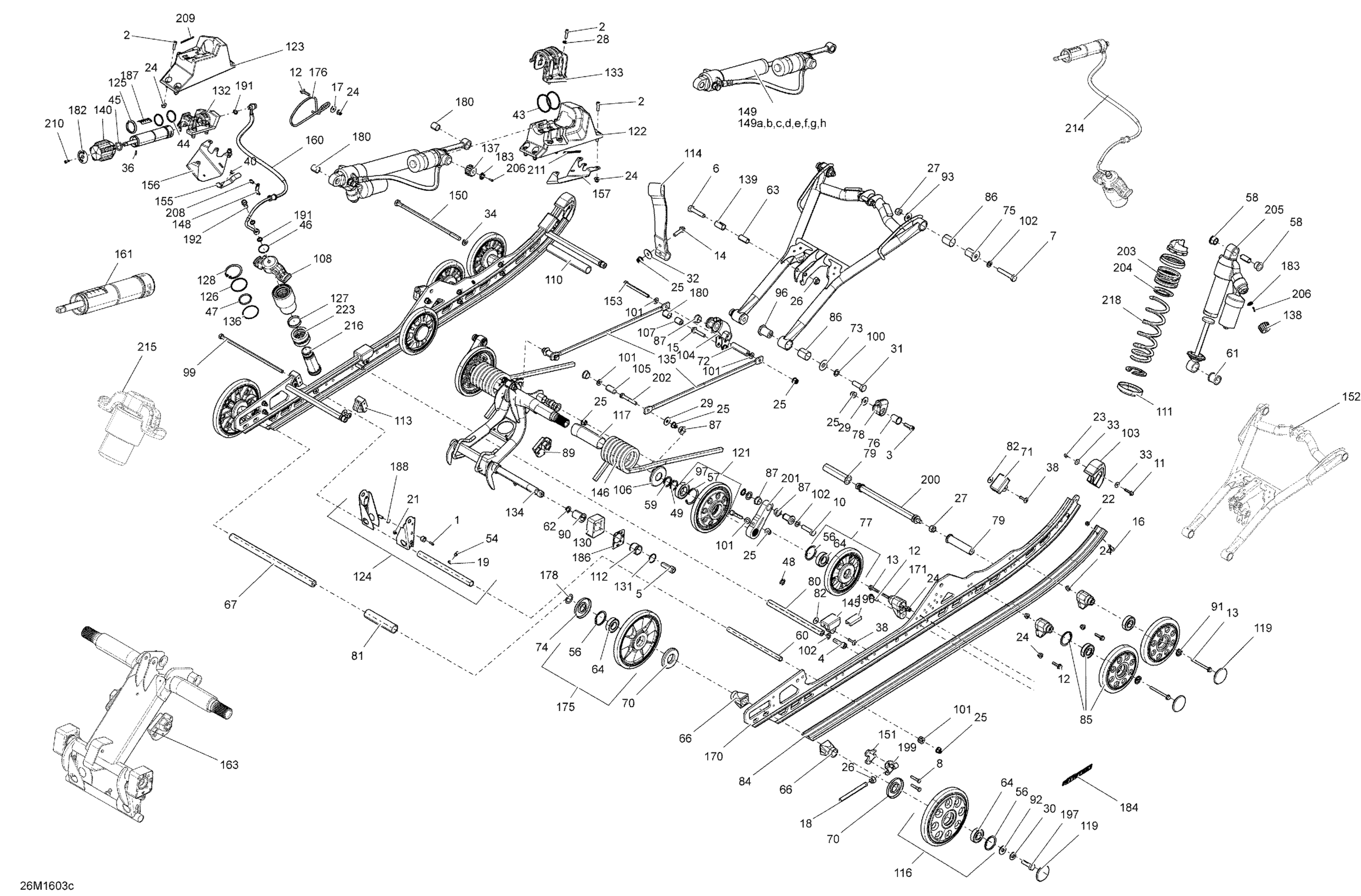

Ski-Doo RENEGADE 600HO E-TEC 000BXGA00 000BXGB00 000MDGA00 000MDGB00 000UAGA00 000UAGB00 000UAGC00 000UAGD00 000UAGE00 000UAGF00 000UAGG00 000UAGH00 000UJGA00 000UJGB00 000UJGC00 000USGA00 000USGB00 Rear Suspension - Package XRS Diagram

#

Description
Price

1

Socket Head Screw M4X 10

205041060

$2.00

2

Socket Head Screw M6 X 20

205062060

$2.21

3

Socket Screw M8 X 25

205082554

$2.00

4

Socket Head Screw M10 X 35

205503554

$7.09

5

Socket Head Screw M12 X 35

205523554

$4.15

6

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

7

Hex. Cap Screw M10 X 60

207006056

$7.09

8

Hex. Cap Screw M6 X 30

207063054

$5.06

10

Cap Screw Hex. M10 X 40

207204056

$7.09

11

Hex. Flange Screw M5 X 25

207652544

$0.48

12

Hex. Flange Screw M6 X 25

207662556

$4.15

12

Hex. Flange Screw M6 X 25

207662556

$4.15

13

Hex. Flange Screw M6 X 70

207667056

$4.15

14

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

15

Hex. Flange Screw M8 X 40

207684044

$1.43

16

Phillips Screw M6 X 25

208562531

$2.00

17

Flat Washer

224061201

$1.27

18

Hex Screw M10 x 100

230100054

$6.07

19

Hexagonal Nut M6

232061404

$0.31

21

Elastic Stop Nut M5

232551414

$0.82

22

Elastic Stop Nut M6

232561434

$1.78

23

Flange Elastic Nut M5

233251434

$1.91

24

Hex. Flange Elastic Nut M6

233261466

$1.91

24

Hex. Flange Elastic Nut M6

233261466

$1.91

25

Elastic Flange Nut M8

233281466

$0.96

26

Elastic Locking Nut M10 X 1.5

233601416

$1.63

27

Flange Elastic Nut M10

233201466

$3.01

27

Elastic Locking Nut M10

233601466

$2.00

28

Stainless Flat Washer M6

234061600

$0.28

29

Flat Washer 8 mm

234082410

$1.27

30

Conical Spring Washer 10 mm

234201474

$1.60

31

Hex. Cap Screw M12 X 35

250000537

$3.01

32

Flat Washer 8 mm

250200128

$2.00

33

Washer

250200140

$0.96

34

Flat Washer

250200143

$3.01

36

Spring Pin

250400014

$3.12

38

Pop Rivet 3/16"

293150013

$1.27

38

Pop Rivet 3/16"

390402200

$0.30

40

Stavex Rivet

293150144

$0.75

43

O-Ring

293250085

$0.96

44

O-Ring

293250269

$2.18

45

O-Ring

293300036

$10.21

46

O-Ring

293300039

$9.03

47

O-Ring

293300068

$6.07

48

E-Circlip

293370013

$0.60

49

Retaining Ring

293370080

$2.06

54

Grease Fitting

408200700

$3.21

56

Retaining Ring

415129371

$8.66

57

Retaining Ring

415129780

$13.46

58

Urethane Bushing

503189117

$6.67

59

Axle Spring

503189146

$7.31

60

Pivot Arm Axle

503189156

$20.12

61

Bushing

503189271

$10.15

62

Washer

503189276

$3.10

63

Bushing | Includes 240d to 240d1

503189282

$4.06

64

Ball Bearing | Package-STD

503190396

$8.18

66

Rear Wheel Spacer

503190428

$5.88

67

Rear Axle

503190429

$58.18

70

Labyrinth Seal

503190434

$4.16

71

Rubber Stopper

503190576

$9.93

72

Axle Bar (Long)

503190643

$14.90

73

Washer

503190656

$2.82

74

Labyrinth Seal

503190682

$5.67

75

Axle

503190698

$17.13

76

Spring Support Kit

861805547

$7.90

77

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$44.75

78

Spring Support Kit

861805547

$7.90

79

Center Bushing

503191259

$8.70

80

Axle Strap

503191260

$28.33

81

Rear Spacer

503191263

$14.90

82

Washer

503191273

$1.03

84

Black, Slider Shoe 137''

503191306

$26.84

85

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$44.75

86

Bushing

503191554

$5.70

87

Swivel Bushing

503191555

$5.54

89

RH Cam Adjuster

503191566

$13.54

89

LH Cam Adjuster

503191565

$13.54

90

Cushion

503191640

$5.54

91

Wheel Cup M6

503191820

$4.52

92

Washer

503191910

$2.18

93

Washer

503191926

$1.52

96

Lower Axle

503191966

$14.90

97

Ball Bearing

503193548

$16.39

99

Bolt M8 X 248mm

503192440

$29.07

100

Washer

503192491

$4.25

101

Washer

503192494

$3.01

102

Washer

503192496

$0.73

103

Slide Protector

503192530

$16.39

104

Rocker

503194079

$76.09

105

Axle Bar

503192555

$11.06

106

Labyrinth Ring

503192592

$4.52

107

Axle Shock Absorber

503196509

$9.69

108

Spring Bracket

503192633

$150.72

110

Spacer

503196943

$7.36

111

Spring Spacer

503192743

$12.27

112

Guide Block

503192749

$5.67

113

Rubber Stopper

503192750

$12.27

114

Stopper Strap

503192759

$24.60

116

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

$48.48

117

Bushing

503192767

$14.81

119

Black, Wheel Cap

503192771

$2.21

120

Cylinder

503192795

$64.90

121

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

$44.75

122

RH Support

503192810

$33.55

123

LH Support

503192811

$34.30

124

Pivot Arm Ass'y | Included 3000f to 3000f.p

503192823

$114.90

125

WIPER SEAL - Call your local BRP dealership

503192825

Unavailable

126

O-Ring

503192832

$2.18

127

Wear Ring

503192833

$14.24

128

Retaining Ring

503192834

$4.52

130

RH Cam Block

503192919

$12.27

130

LH Cam Block

503192918

$12.27

131

O-Ring

503192921

$2.18

132

LH Half Housing

503192956

$9.93

133

RH Half-Housing

503192957

$11.10

134

Lower Shaft

503192981

$17.13

135

Link Rod

503193005

$26.09

136

O-Ring

503193014

$2.18

137

Shock Adjuster Knob

503193033

$7.36

138

Shock Adjuster Knob

503193033

$7.36

138

Shock Adjuster Knob

503193033

$7.36

139

Bushing

503193037

$14.90

140

Knob Adjuster Ass'y | Included 7010 to 7010b

503193056

$24.60

145

Rubber Stopper Ass'y

503195523

$5.09

146

Black, RH Spring Square

503192104

$75.34

146

Black Lh Spring

503192105

$75.34

148

Plate

503193166

$14.90

149

Rear Shock | With Quick Adjust System

503193854

$877.49

149

Rear Shock | Includes 5500 to 5500g

503194072

$877.49

150

Bolt M10 X 251MM

503193227

$15.64

151

Spacer

503193250

$13.54

152

Front Arm Ass'y | Included 2000 to 2000g

503194529

$429.82

153

Screw M8 X 90

503193372

$4.15

155

Retaining Plate

503195712

$17.13

156

LH HOSE PROTECTOR - Call your local BRP dealership

503193437

Unavailable

157

RH HOSE PROTECTOR - Call your local BRP dealership

503193438

Unavailable

160

Connector Hose

503193476

$44.75

161

Master Cylinder Ass'y | Included 7000a to 7000a.j

503193490

$279.82

163

Rear Arm Ass'y | Included 3000 to 3000u

503193617

$258.18

163

Rear Arm Ass'y | With Quick Adjust System

503193618

$273.10

170

YELLOW RUNNER 137 - Call your local BRP dealership

503194223

Unavailable

170

Black, Runner 137"

503193552

$272.36

171

Casted Support

503193894

$12.37

175

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$48.48

176

Protector

503194113

$26.09

180

Leg Cushion

505072663

$7.18

182

STICKER KNOB ADJUSTER - Call your local BRP dealership

516004751

Unavailable

183

Shock Knob Adjustment Decal

516004752

$12.57

184

Runner Decal

516004755

$8.84

186

RH Block Sticker Decal

516004901

$15.64

186

LH Block Sticker Decal

516004900

$15.64

187

Adjustment Decal

516004917

$41.01

188

Flat Washer

517225900

$0.16

190

Reinforcement Stopper

572084800

$5.09

191

Copper Washer

705601628

$4.21

192

Banjo Bolt

705600628

$10.72

197

Hex Screw With Nilon Patch, M10 X 35

250000817

$4.15

199

Tensioner

503192583

$5.67

200

Pivot Axle

503193435

$37.28

201

Link Ass'y | Includes 3100 to 3100f

503195985

$75.34

202

Hex. Screw M8 X 55

207085586

$7.01

203

Black, Spring (52mm) Short

503193479

$85.79

204

Spring Stopper

503194270

$16.39

205

Center Shock | Includes 5000 to 5000j

503194071

$812.99

206

Allen Screw M3 X 0.5 X 10

250000644

$2.00

208

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.43

209

Decal

516006369

$12.27

210

Socket Screw M4 X 16 (Scotch Grip)

205541660

$1.87

211

Decal

516006369

$12.27

214

Hydraulic Adjuster Ass'y | Included 7000 to 7000g

503193777

$699.97

215

Hydraulic Adjuster Ass'y | Included 7000 to 7000g

503193777

$699.97

216

Piston

503193779

$126.84

218

Black, Spring (162mm) Long

503193065

$69.37

223

Holder | Included 7000b.d to 7000b.d.e

503193485

$120.12

149a

O-Ring

415093804

$4.25

149b

O-Ring

505070400

$4.25

149c

Screw | Not Shown

505070399

$3.88

149d

Air Valve

505070398

$17.13

149e

Piston Ring | Not Shown

415093806

$14.52

149f

O-Ring

415093807

$33.55

149g

Bolt

415093810

$14.52

149h

O-Ring

415038700

$38.78
