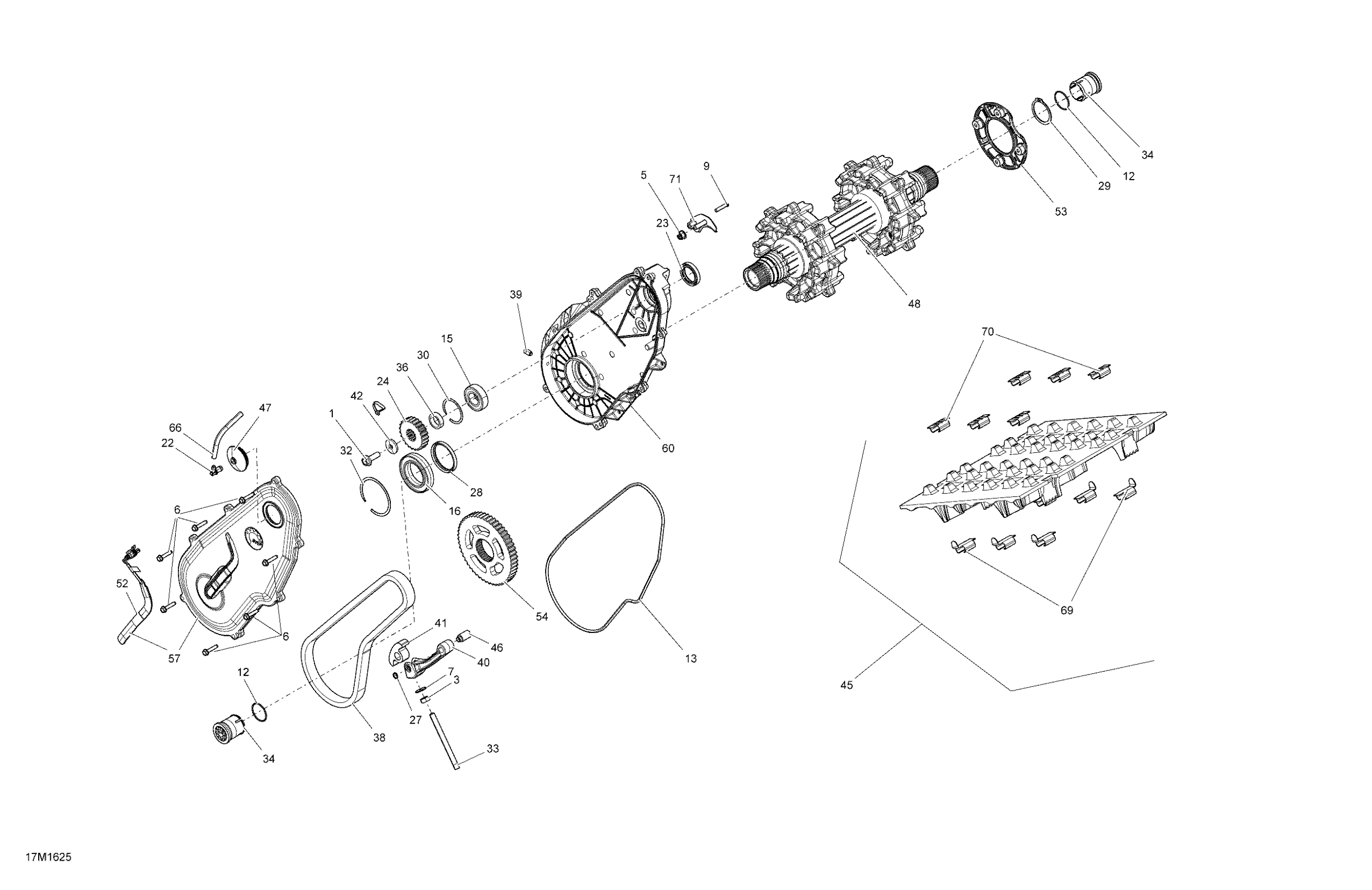

Ski-Doo RENEGADE 600HO E-TEC 000BXGA00 000BXGB00 000MDGA00 000MDGB00 000UAGA00 000UAGB00 000UAGC00 000UAGD00 000UAGE00 000UAGF00 000UAGG00 000UAGH00 000UJGA00 000UJGB00 000UJGC00 000USGA00 000USGB00 Drive - 600HO ETEC Diagram

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.46

Hex. Nut M10 X 1.5

232006414

$1.11

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

Bonded Washer

250200100

$1.74

Clinch Stud M6 X 30

250300031

$1.92

O-Ring

293300122

$2.06

Tight Seal

293300130

$7.31

Ball Bearing

293350115

$11.15

Ball Bearing

293350059

$30.74

Male Connector

414580700

$3.38

Oil Seal

293200158

$12.52

Sprocket, 21 Teeth

504096200

$42.28

Sprocket 23 Teeth

504153911

$42.28

Circlip

504152282

$3.11

Oil Seal

293200159

$13.12

Circlip

504152572

$6.26

Circlip

504152576

$8.71

Circlip

504152582

$8.71

Adjustment Screw

504152602

$9.62

Magnetic Cap

504152619

$23.05

Shim

504152628

$8.40

Drive Chain, 104 Links

504152629

$173.82

Drive Chain, 102 Links

504152579

$147.66

Drive Chain, 108 Links

504152631

$147.66

Magnetic Plug 1/8 - 27 NPTF

504152854

$8.95

Tensioner chain

504153429

$13.77

Slider Chain

504152739

$67.66

Spring Washer M10

504152784

$6.26

Track Ass'y 16" X 137" X 1.7" | Package X, Engine 1200 ACE, Europe (MMJJ)

504152803

$1,059.99

Track Ass'Y 15X137X1.2 | Includes 3200 to 3200b

504152905

$929.99

Track 15 X 137 X 1,25 | Includes 3200 to 3200b

504154373

$1,149.99

Track Ass'y 16" X 146" X 1.60" | Includes 3200 to 3200b

504153400

$1,199.99

Tensioner Axle

504152841

$14.65

Cap

504152860

$19.20

Drive Axle Ass'y

504154054

$516.89

Rotation Sensor

504152896

$35.35

Retaining Ring

504153886

$18.43

Kit Sprocket This part replaces 504152593.

861805538

$153.05

Kit Sprocket This part replaces 504152971.

861805540

$149.97

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153410

$324.58

Polyurethane Hose 10000Mm Long

219704410

$46.12

Track Guide | Track Width 16''

415129528

$3.12

Cleat

504152651

$8.22

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

$16.89
