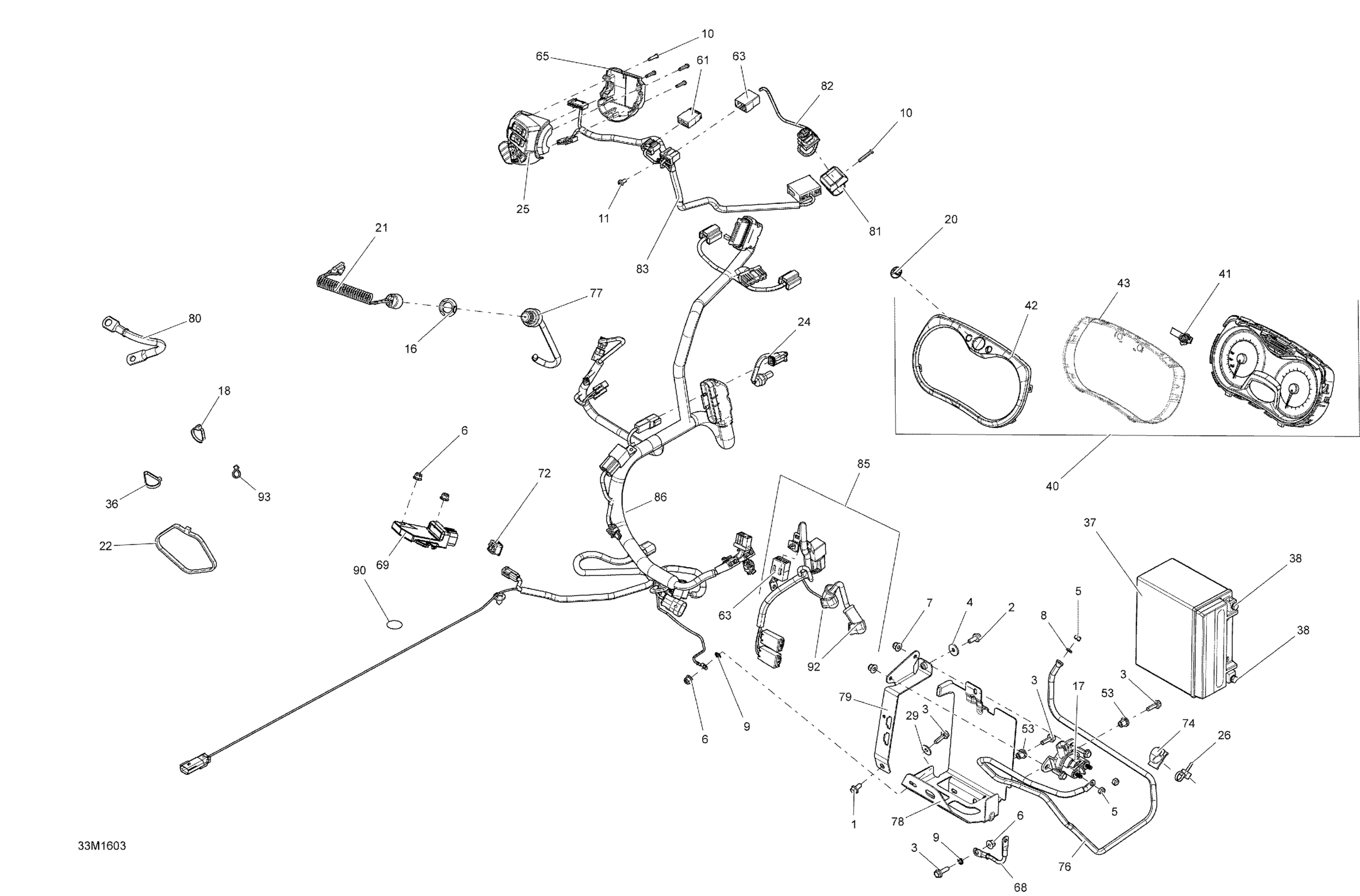

Ski-Doo RENEGADE 600 CARB 000UHGA00 Electrical System - 600 CARB Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 12

207661244

$2.11

2

Hex. Flange Screw M6 X 16

207661644

$0.74

3

Hex. Flange Screw M6 X 20

207662044

$2.00

4

Flat Washer

224061201

$1.37

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

7

Elastic Flange Nut M6 X 1.0

233261416

$2.11

8

Flat Washer 6 mm

234061410

$1.36

9

External Serrated Lock Washer 6 mm

234461608

$1.15

10

Torx Screw #8-18

250000263

$1.04

11

Pan Screw Forming, 7500C

250000690

$2.11

16

Safety Nut (DESS Switch)

278002963

$3.28

17

Starter Relay

278003012

$42.49

18

Tie Wrap 142 mm

293750002

$1.25

20

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

21

DESS

515178284

$84.99

22

Tie Wrap 368 mm

293750008

$1.04

24

Sensor Temperature

515177814

$58.99

25

LH Housing

515177022

$229.99

26

Tie-Rap 173 mm

293750009

$1.04

27

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

29

Flat Washer

250200082

$0.42

36

Tie-Rap 180 mm

414115200

$0.11

37

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

38

Battery Bolt Kit

250000282

$7.29

40

Speedometer | Includes 10 to 10c

515177914

$629.99

41

Speedometer Button | XTP

415129355

$15.80

42

Gauge Ring

415129370

$11.49

43

Lens | XTP

415129349

$24.49

53

Insert

293450275

$12.99

61

Male Terminal Housing, 6 Circuits

515175662

$8.79

63

Male Terminal Housing, 8 Circuits

515175817

$8.79

65

Switch Housing Plate

515175926

$20.99

68

Ground Wire

515176358

$27.99

69

Voltage Regulator

515176364

$153.49

72

Lock

515176681

$20.99

74

Clip

515177066

$4.29

76

Battery/Starter Wire

515177208

$30.99

77

DESS Switch

515177249

$114.99

78

Battery Support

515177264

$31.99

79

Battery Strip

515177266

$19.99

80

Ground Wire

515177289

$26.99

81

Emergency Stop Switch Support

515177310

$9.19

82

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

83

Steering Wiring Harness

515177609

$114.99

85

Electrical Start Harnes

515177832

$74.99

86

Main Harness

515177980

$449.99

90

Adhesive Patch

518325560

$4.69

92

Protector Cap

710000495

$10.99

93

Tie Wrap 94 mm | 4X4

293750001

$1.03
