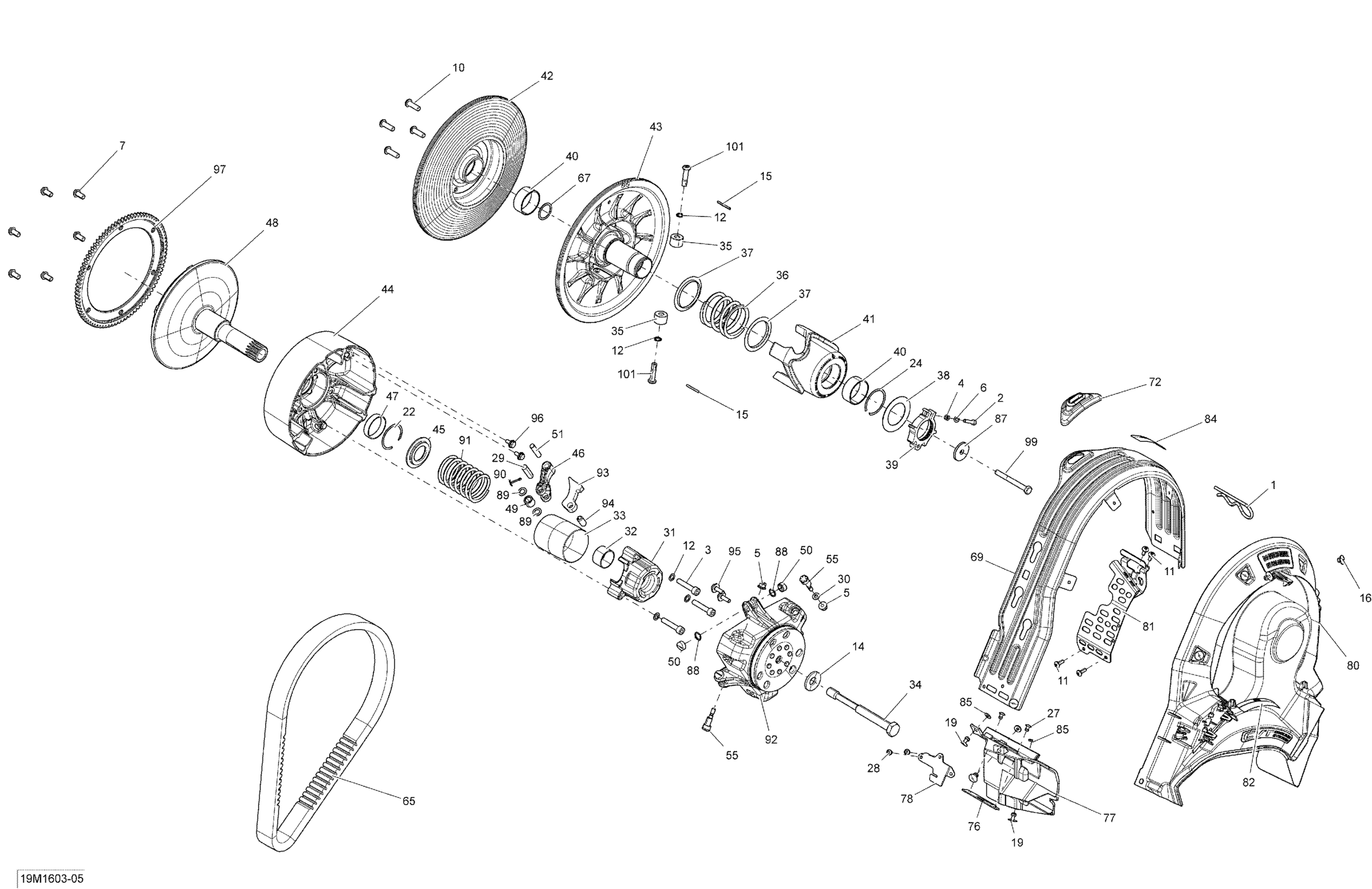

Ski-Doo RENEGADE 600 CARB 000UHGA00 05- Pulley System - 600 CARB Diagram

#

Description
Price

1

Hair Pin

114045200

$11.11

2

Socket Screw M5 X 25

205052544

$1.68

3

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

4

Elastic Stop Nut M5

232551414

$0.87

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

6

Flat Washer M5

234051410

$0.53

7

Hex. Flange Screw M8 X 1.25 X 16

250000533

$2.99

10

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

11

Torx Screw M5 X 14

250000742

$1.47

12

Lock Washer 8 mm

250200009

$2.11

14

Conical Spring Washer M14

250200144

$4.44

15

Spring Pin M3 X 30

250400063

$2.11

16

Pop Rivet 3/16"

293150103

$0.55

19

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

22

Circlip

293370037

$3.19

24

Circlip

293370049

$4.99

27

Avex Rivet

390909100

$0.30

28

Avex Rivet

390909200

$0.30

29

Pin

417004308

$13.99

30

Washer

417005600

$4.09

31

Spring Cover Ass'y | Includes 10r to 10t

417007500

$45.99

32

Bushing

417009204

$17.49

33

Guard

417009205

$21.99

34

Drive Pulley Bolt

417120000

$65.49

35

Pulley Roller

417127016

$24.49

36

Black, Return Spring

417127039

$46.49

37

Swivel Abutment

417127116

$9.39

38

Washer

417127155

$8.26

39

Calibration Ass'y

415129604

$21.49

40

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

41

Cam Ass'y | Includes 100m to 100q

417127372

$159.49

42

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$159.99

43

Fixe Flange Ass'y | Includes 100a to 100f

417127392

$359.99

44

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$219.99

45

Spring Seat

417222312

$9.59

46

Lever | Includes 10f to 10g

417222671

$49.99

47

Bushing

417222758

$22.49

48

Fixed Flange Ass'y

417222937

$439.99

49

Roller

417222947

$21.99

50

Slider Shoe

417222992

$4.49

51

Lever Axle

417223164

$4.49

55

Calibration Screw

417223501

$13.99

65

Drive Belt

417300586

$154.99

67

Spacer

417300265

$2.29

69

Belt Guard

417300357

$91.99

72

Guide

417300381

$11.99

76

Reinforcement Plate

417300421

$4.39

77

Front Support

417300422

$8.59

78

Front Bracket

417300423

$7.29

80

CVT Air Duct

417300439

$28.99

81

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$31.99

82

Decal English

516005503

Unavailable

84

Safety Belt Guard Decal

516005509

Unavailable

85

Flat Washer

517225900

$0.18

87

Strength Washer

517302322

$12.63

88

O-Ring

732401030

$0.98

89

Stopper Washer

417004302

$15.90

90

Cotter Pin

250400060

$2.00

91

Spring (Blue/Violet)

414817800

$41.49

92

Governor Cup Ass'y

417223669

$489.99

93

Ramp 412

417222515

$39.99

94

Spring Pin M10 X 22

250400050

$2.99

95

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

96

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$4.09

97

Ring Gear_Starter This part replaces 417223738.

417225070

$239.99

99

Hex. Cap Screw M8 X 75

207287544

$5.18

101

Pivot Stud

417127294

$14.49
