- Renegade 500EFI STD, 2013
10- Electrical System

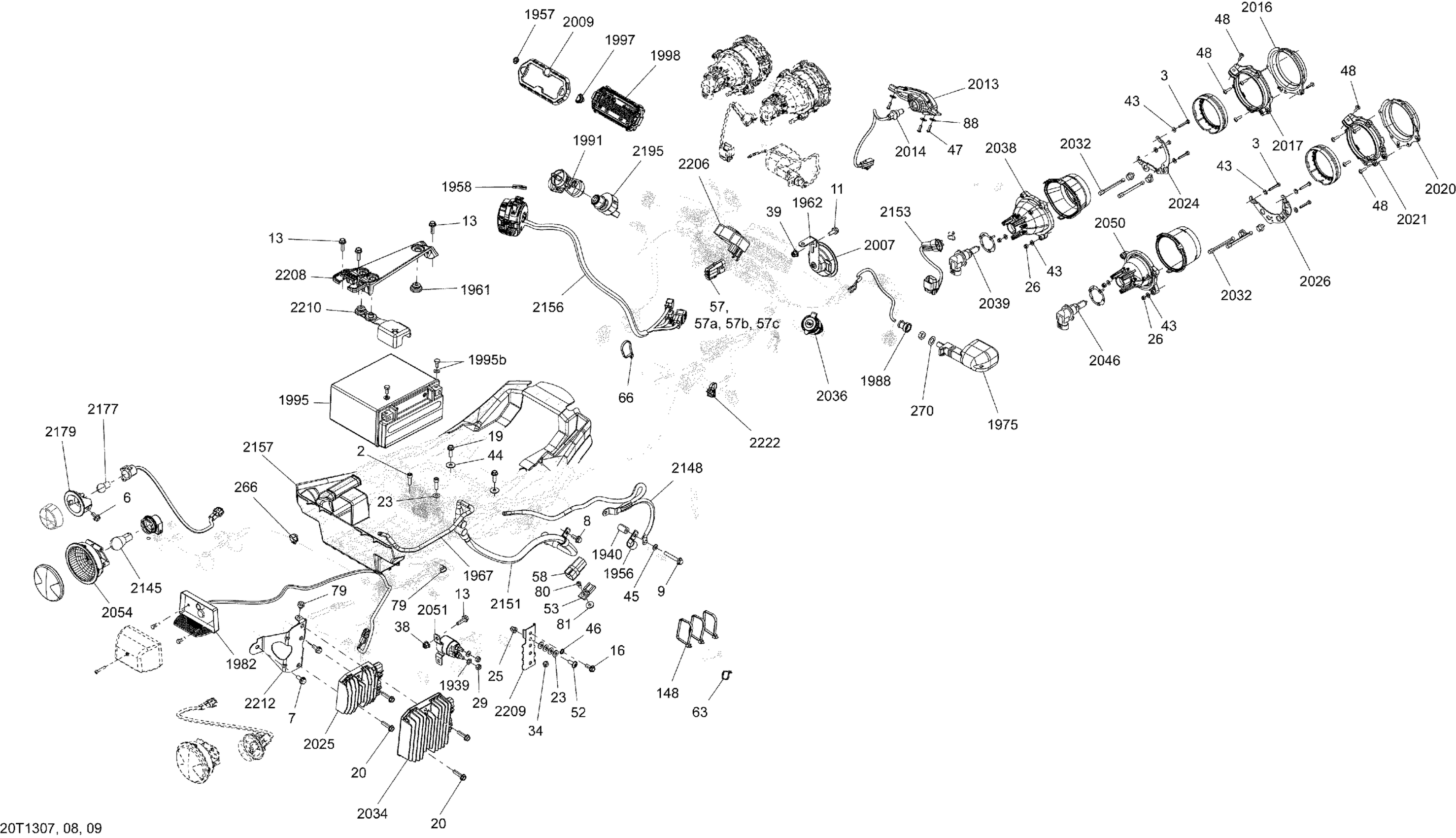

Can-Am Renegade 500EFI STD, 2013 10- Electrical System Diagram
#
2
Socket Head Screw M6 X 20, Scotch Grip
205562044
Unavailable
3
Hex. Screw M4 X 25
207142544
Unavailable
6
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
Unavailable
7
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
8
Not Available As Spare Parts
XXX
Unavailable
9
Hex. Flange Screw M6 X 40, Scotch Grip
207564044
Unavailable
11
Hex. Flange Screw M6 X 16
207661644
Unavailable
13
Hex. Flange Screw M6 X 20
207662084
Unavailable
16
Hex. Flange Screw M6 X 16
210261650
Unavailable
19
Hexagonal Head Screw
210262050
Unavailable
20
Hex. Flange Forming Screw M6 X 25
210262580
Unavailable
23
Flat Washer
224061121
Unavailable
25
Domed Nut M6
232361493
Unavailable
26
Elastic Stop Nut M4
232541414
Unavailable
29
Elastic Stop Nut M6
232561414
Unavailable
34
Elastic Stop Nut M6
232561414
Unavailable
38
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
39
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
43
Flat Washer M5
234051410
Unavailable
44
Stainless Steel Flat Washer
234062670
Unavailable
45
Lock Washer Helical M6
234161601
Unavailable
46
External Serrated Lock Washer 6 mm
234461608
Unavailable
47
PHILLIPS SCREW K40 X 10 - Call your local BRP dealership
241641040
Unavailable
48
Phillips Screw K40 X 16
250000723
Unavailable
52
Torx Screw M6 X 16
250000223
Unavailable
53
Clip
270000141
Unavailable
57
Connector Ass'y | STD / Includes 7 to 10
710000917
Unavailable
57a
Female Terminal Housing, 3 Circuits | XT Models
278000281
Unavailable
57b
Wire Seal
278000216
Unavailable
57c
Clip
710000992
Unavailable
58
Housing
710003006
Unavailable
63
Tie Wrap 94 mm | 4X4
293750001
Unavailable
66
Tie-Rap 180 mm
414115200
Unavailable
79
Rubber Bumper
293830005
Unavailable
80
Pop Rivet 3/16"
390402300
Unavailable
81
Washer | DS 650 X
391301600
Unavailable
88
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
148
Tie Wrap 368 mm
293750008
Unavailable
266
Clip
414227300
Unavailable
270
Washer
503175800
Unavailable
1939
Lock Washer Helical M6
234161601
Unavailable
1940
Spacer
517203200
Unavailable
1956
Open Clamp
518321570
Unavailable
1957
BRP Logo13 mm
704904615
Unavailable
1958
Not Available As Spare Parts
XXX
Unavailable
1961
Stopper Rubber
705014429
Unavailable
1962
SUPPORT - Call your local BRP dealership
709200284
Unavailable
1967
Positive Cable
710004376
Unavailable
1975
Flasher | Europe Models, Includes 60 To 61
710000547
Unavailable
1982
License Plate Light | Europe
710005563
Unavailable
1988
CAP GUARD - Call your local BRP dealership | Europe Models
710001826
Unavailable
1991
Black, Electronic Key
710000817
Unavailable
1995
Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73
410301203
Unavailable
1995b
Battery Bolt Kit
250000282
Unavailable
1997
Button
710001473
Unavailable
1998
Calibrated Speedometer | Includes 16 to 17
710003288
Unavailable
2007
Horn
710004791
Unavailable
2009
Trim Ring Ass'y
710001183
Unavailable
2013
Day Light
710001042
Unavailable
2014
LH Low Light Support
710001037
Unavailable
2016
RH Low Front Housing
710001081
Unavailable
2016
LH Low Front Housing
710001083
Unavailable
2017
RH Low Rear Housing
710001082
Unavailable
2017
LH Low Rear Housing
710001084
Unavailable
2020
RH High Front Housing
710001085
Unavailable
2020
LH High Front Housing
710001087
Unavailable
2021
RH High Rear Housing
710001086
Unavailable
2021
LH High Rear Housing
710001088
Unavailable
2024
RH Low Light Support
710001094
Unavailable
2025
Voltage Regulator | For replacement, refer to service bulletin 2005-5
710001103
Unavailable
2025
Voltage Regulator | XT, XTP, LTD
710001191
Unavailable
2026
RH High Light Support
710001115
Unavailable
2026
LH High Light Support
710001036
Unavailable
2032
Setting Screw
710001147
Unavailable
2034
Not Available As Spare Parts
XXX
Unavailable
2036
DC Outlet
710001248
Unavailable
2038
Low Beam Ass'y | Includes 1 to 2
710002524
Unavailable
2039
Halogen Bulb
415129249
Unavailable
2046
Halogen Bulb
415129249
Unavailable
2050
High Beam Ass'y | Includes 11 to 12
710002525
Unavailable
2051
Starter Relay
710007777
Unavailable
2054
Tail Light Ass'y | Includes 32 to 33
710001645
Unavailable
2145
Bulb
520000758
Unavailable
2148
Ground Cable
710004382
Unavailable
2151
POSITIVE CABLE - Call your local BRP dealership
710001750
Unavailable
2153
Harness Ass'y | Includes 1 to R1, Europe
710002804
Unavailable
2156
Multi-Function Handle
710004040
Unavailable
2156
Not Available As Spare Parts
XXX
Unavailable
2156
Handle Kit | STD
703500919
Unavailable
2157
Battery Support
710006561
Unavailable
2177
Not Available As Spare Part - Friction Washer
Unavailable
2179
Flasher | Europe
710002964
Unavailable
2195
Ignition Switch
710008400
Unavailable
2206
Flasher Unit
710003239
Unavailable
2208
Fixation Plate
710002404
Unavailable
2209
BRACKET - Call your local BRP dealership
710002567
Unavailable
2210
Battery Cable Cap
710006729
Unavailable
2212
Rectifier Support
710002587
Unavailable
2222
Tie-Rap Clip
710002896
Unavailable
