08- Rear Suspension

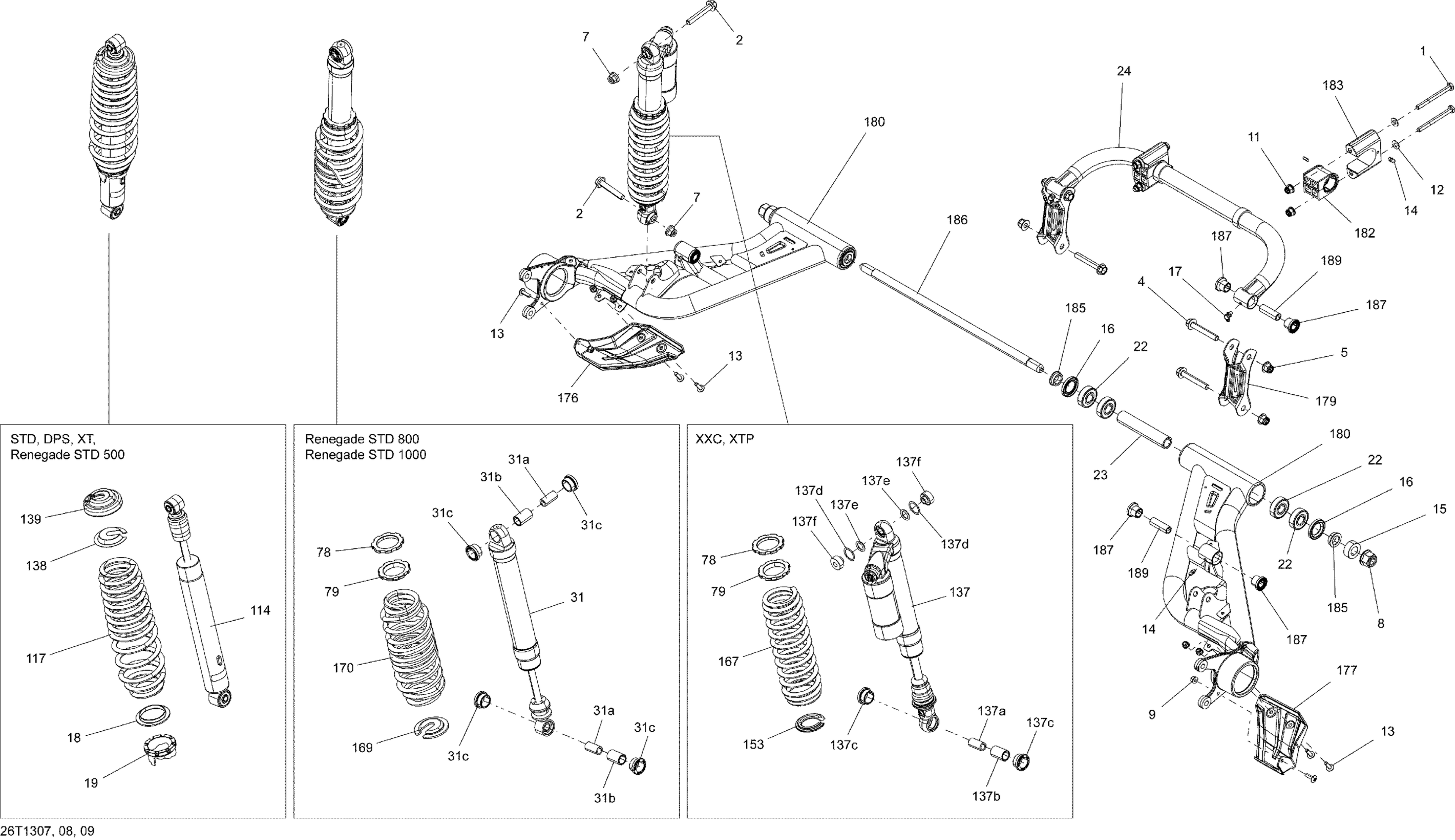

Can-Am Renegade 500EFI STD, 2013 08- Rear Suspension Diagram
#
1
Hex. Screw M8 X 85
250001035
Unavailable
2
Hex. Flange Screw M10 X 6
207606046
Unavailable
4
Hex. Flange Screw M10 X 65
207606536
Unavailable
5
Hex. Flange Elastic Nut M10
233201414
Unavailable
7
Hex. Flange Elastic Nut M10
233201436
Unavailable
8
Hex. Flange Elastic Nut M16
233211466
Unavailable
9
Hex. Flange Elastic Nut M6
233261494
Unavailable
11
Hex. Flange Elastic Nut M8
233281434
Unavailable
12
Flat Washer M8
234081430
Unavailable
13
Torx Screw M6 X 20
250000722
Unavailable
14
Grease Fitting
250000315
Unavailable
15
Flat Washer M17
250200112
Unavailable
16
Seal
293200144
Unavailable
17
Grease Fitting 90°
293550056
Unavailable
18
Spring Stopper
706200881
Unavailable
19
Adjustment Cam
505073625
Unavailable
22
Ball Bearing
293350145
Unavailable
23
Spacer
706002259
Unavailable
24
Swaybar
706000988
Unavailable
31
Not Available As Spare Parts
XXX
Unavailable
31a
Not Available As Spare Parts
XXX
Unavailable
31b
Not Available As Spare Parts
XXX
Unavailable
31c
Not Available As Spare Parts
XXX
Unavailable
78
Not Available As Spare Part - Friction Washer
Unavailable
79
Not Available As Spare Part - Friction Washer
Unavailable
114
Rear Shock
706000958
Unavailable
117
SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership | STD 500
706001497
Unavailable
137
Not Available As Spare Parts
XXX
Unavailable
137a
Not Available As Spare Parts
XXX
Unavailable
137b
Not Available As Spare Parts
XXX
Unavailable
137c
Not Available As Spare Parts
XXX
Unavailable
137d
Not Available As Spare Parts
XXX
Unavailable
137e
Not Available As Spare Parts
XXX
Unavailable
137f
Not Available As Spare Parts
XXX
Unavailable
138
Spring Guide
503187500
Unavailable
139
Cap
706200785
Unavailable
153
Not Available As Spare Part - Friction Washer
Unavailable
167
Not Available As Spare Parts
XXX
Unavailable
169
Not Available As Spare Part - Friction Washer
Unavailable
170
Not Available As Spare Parts
XXX
Unavailable
176
LH PROTECTOR - Call your local BRP dealership
706001009
Unavailable
177
RH PROTECTOR - Call your local BRP dealership
706001010
Unavailable
179
Sway Bar Linkage
706001020
Unavailable
180
Black LH Swing Arm
706001860
Unavailable
180
Black RH Swing Arm
706001861
Unavailable
182
Stabilizer Bar Bushing
706004640
Unavailable
183
Bushing Holder
706001099
Unavailable
185
Spacer
706001282
Unavailable
186
Axial Pivot M16
706001664
Unavailable
187
Suspension Arm Bushing Kit | Includes 4
703500875
Unavailable
189
Suspension Arm Bushing Kit | Includes 4
703500875
Unavailable
