- Renegade 500EFI STD, 2013
08- Drive System, Rear

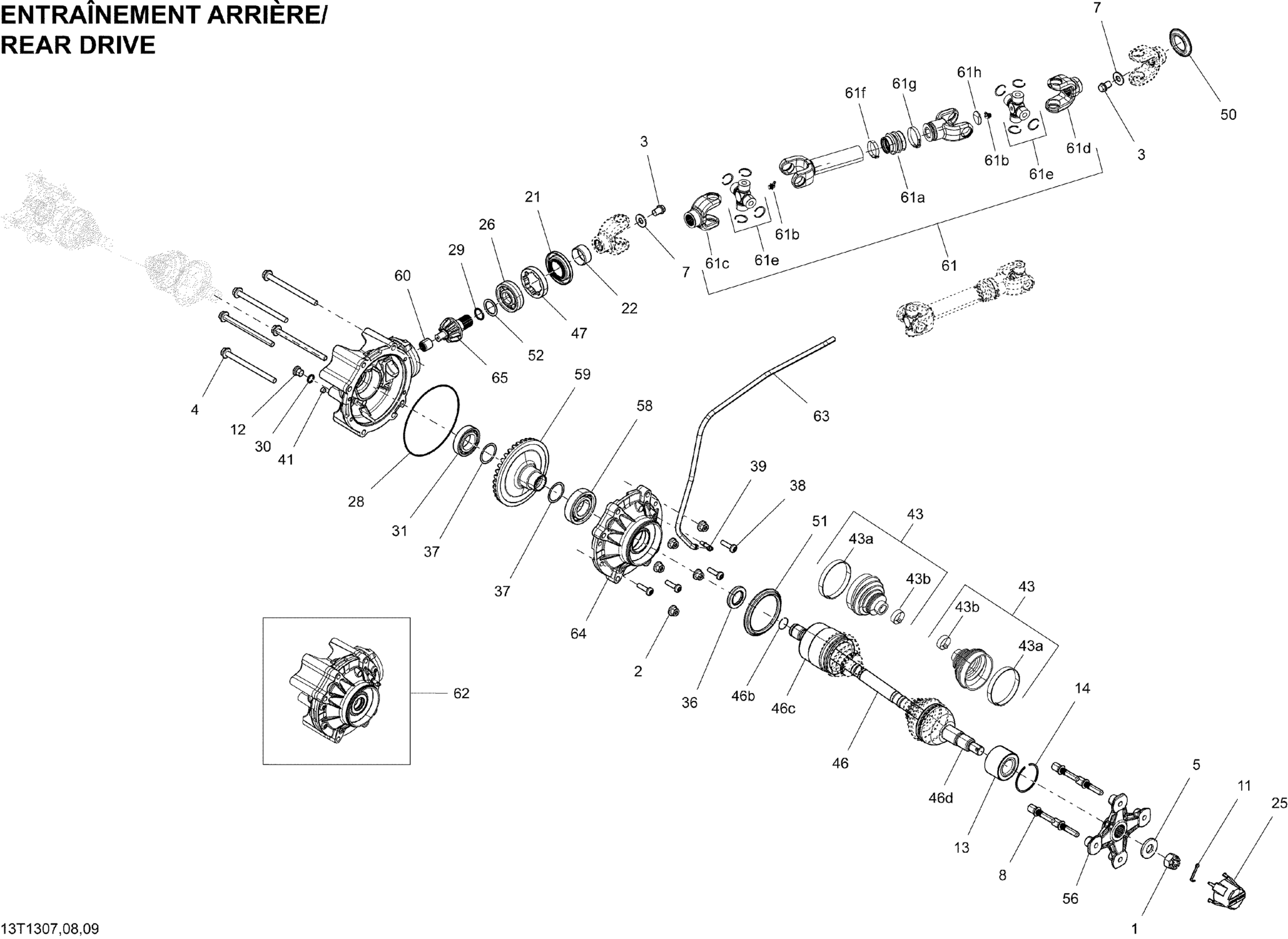

Can-Am Renegade 500EFI STD, 2013 08- Drive System, Rear Diagram
#
1
Hex. Flange Castellated Nut M18
232291413
Unavailable
2
Hex. Flange Elastic Nut M10
233201436
Unavailable
3
Hex Flange Screw M12 X 16
250001039
Unavailable
3
HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership
250000378
Unavailable
4
Hex. Flange Screw M10 X 135
250001041
Unavailable
5
Conical Spring Washer M18
250200171
Unavailable
7
Flat Washer M12
250200102
Unavailable
8
Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4
250300643
Unavailable
11
Cotter Pin
250400036
Unavailable
12
Fill Level Plug | 4X4
705500504
Unavailable
13
Ball Bearing
293350150
Unavailable
14
Circlip
293370019
Unavailable
21
Oil Seal | 4X4
705401481
Unavailable
22
Wear Ring | 4X4
705400036
Unavailable
25
Wheel Cap
705400928
Unavailable
26
Ball Bearing | 4X4
705500260
Unavailable
28
Seal | 4X4
705500265
Unavailable
29
O-Ring | 4X4
705500267
Unavailable
30
Copper Washer | 4X4
705500506
Unavailable
31
Ball Bearing
705502737
Unavailable
36
Oil Seal
705501996
Unavailable
37
Differential Shim 0.02 mm
705502060
Unavailable
38
Screw | 4X4
705401601
Unavailable
39
VENT VALVE - Call your local BRP dealership | 4X4
705500893
Unavailable
41
Drain Plug | 4X4
705500894
Unavailable
43
Boot Kit
705501864
Unavailable
43a
Oetiker Clamp, 82.1 mm
715900241
Unavailable
43b
Oetiker Clamp, 27.3 mm
715900242
Unavailable
46
LH Rear - Premium CV Axle | Includes 58a to 63a
705501485
Unavailable
46
RH Rear - Premium CV Axle | Includes 64a to 69a
705501486
Unavailable
46b
Circlip
705501781
Unavailable
46c
PLUNGING JOINT - Call your local BRP dealership
705501780
Unavailable
46d
CV Joint
705501776
Unavailable
47
Nut
705502059
Unavailable
50
Protector
705501123
Unavailable
51
Wear Ring
705501124
Unavailable
52
Pinion Gear Shim
705501162
Unavailable
52
Pinion Gear Shim .022"
705500075
Unavailable
52
Pinion Gear Shim 1.67 mm
705502061
Unavailable
56
Wheel Hub Ass'y
705501716
Unavailable
58
Ball Bearing
705502738
Unavailable
59
Ens Engrenage 10/36D *Gear-10/36 Too Kit
703500873
Unavailable
60
Needle Bearing
705501408
Unavailable
61
Shaft Ass'y Kit | Incldues 1 to 5
703500986
Unavailable
61a
Rubber Boot
715900118
Unavailable
61b
Grease Fitting
715900184
Unavailable
61c
Fixe Yoke
715900101
Unavailable
61d
Fixe Yoke
715900101
Unavailable
61e
Universal Joint
715900326
Unavailable
61f
Oetiker Gear Clamp 36.1MM
509000045
Unavailable
61g
Oetiker Gear Clamp 44.0MM | 4X4
293650138
Unavailable
61h
COVER - Call your local BRP dealership
715900187
Unavailable
62
Rear Differential Ass'y | Includes 12 to 31
705501419
Unavailable
63
Polyurethane Hose 10000Mm Long
219704410
Unavailable
64
REAR DIFFERENTIAL COVER - Call your local BRP dealership
705501507
Unavailable
65
Ens Engrenage 10/36D *Gear-10/36 Too Kit
703500873
Unavailable
