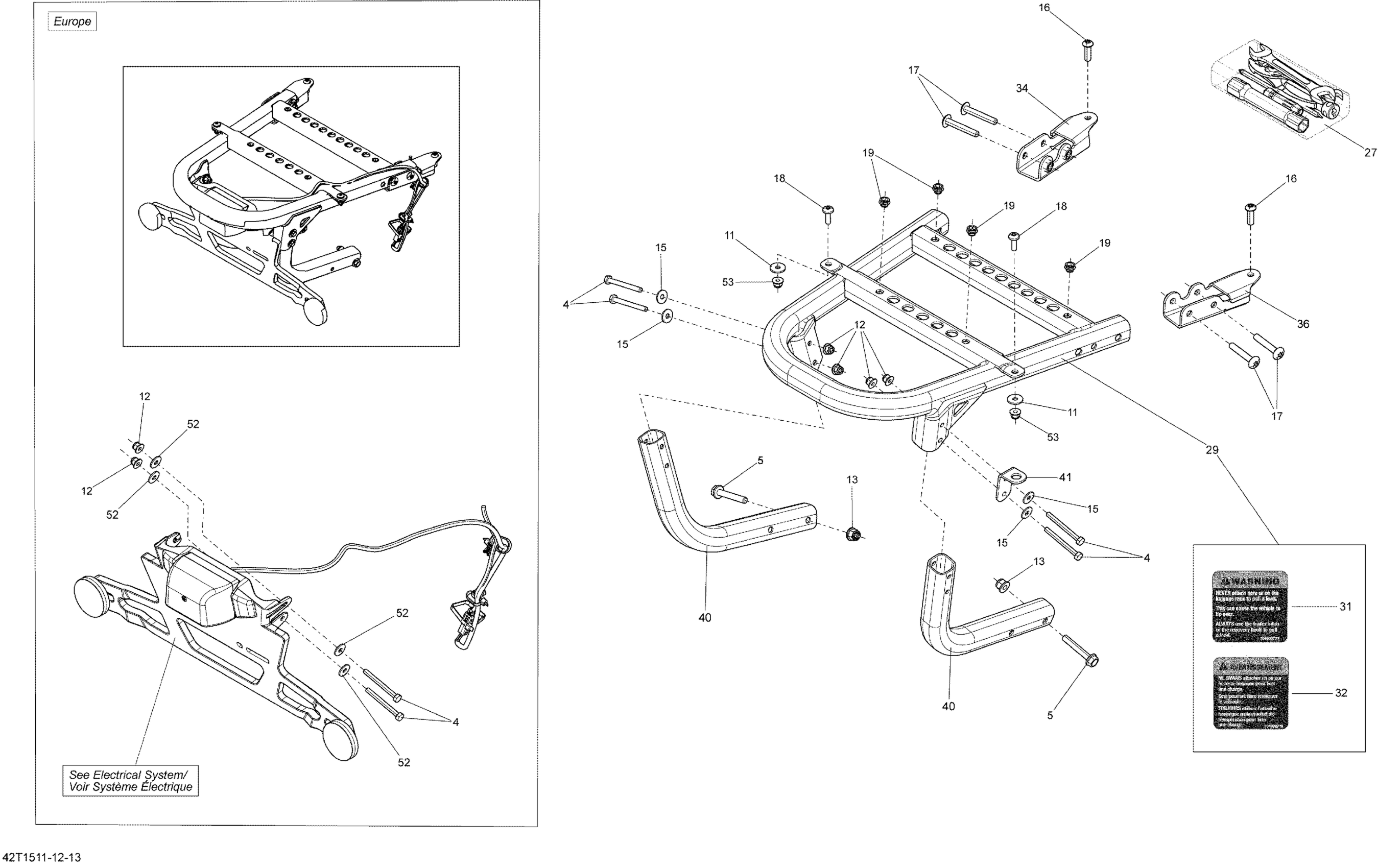

Can-Am Renegade 500 EFI, 2015 Rear Cargo Box _42T1511 Diagram

#

Description
Price

4

Hex. Screw M6 X 60

207066044

$0.67

5

Hex. Flange Screw M8 X 50

207685044

$1.69

11

Flat Washer

224061201

$1.37

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

Hex. Flange Elastic Nut M8

233281414

$1.47

15

Flat Washer 6 mm

234062410

$0.77

16

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

17

Torx Truss Screw M8 X 50

250000761

$7.51

18

Torx Screw M6 X 20

250000712

$2.11

19

Threaded Insert M6 X 1.0

250100242

Unavailable

27

Tool Kit

704700162

$44.99

29

Kit Rear Bumper

715001894

$248.99

31

Warning Decal

704905698

Unavailable

32

Warning Decal, Luggage Rack | French Version

704902778

Unavailable

34

LH Front Bracket

705004977

$34.99

36

RH Front Bracket

705004978

$34.99

40

Rear Tube

705004981

$28.99

41

Flag Support | Except Europe

705005837

$7.89

52

Flat Washer 6 mm

234062410

$0.77

53

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
