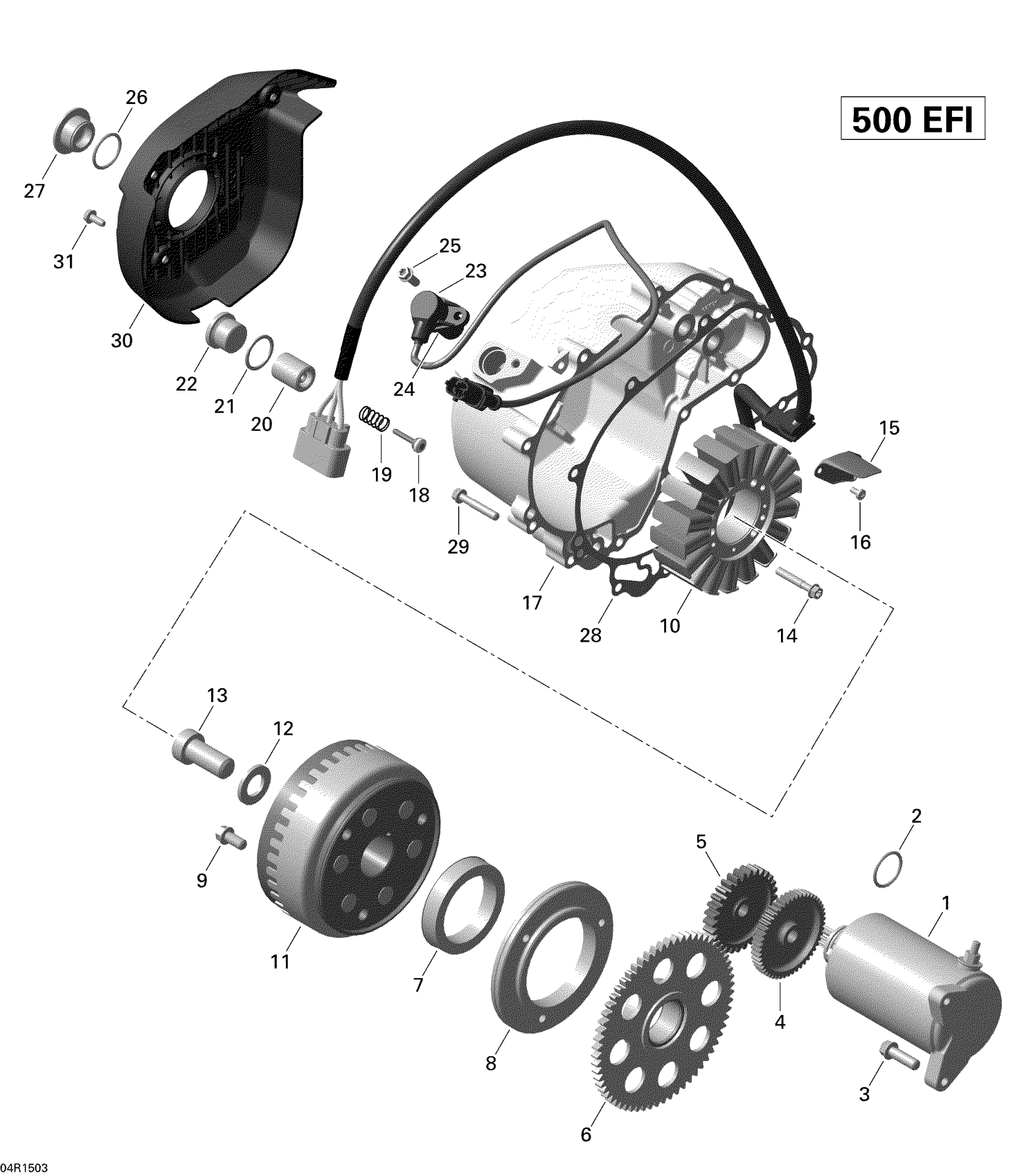

Can-Am Renegade 500 EFI, 2015 Magneto And Electric Starter Renegade_04R1503 Diagram

#

Description
Price

1

Electric starter Ass'y

420684566

$265.99

2

O-Ring

420250140

$8.57

3

Torx Flange Screw M8 X 25

420440372

$4.12

4

Starter Double Gear 11/49 T

420634741

$199.99

5

Starter Intermediate Gear, 30 Teeth

420634605

$81.49

6

Free Wheel Gear, 64 Teeth | Includes 5a to 6

420434235

$194.99

7

Sprag Clutch

420659111

$259.99

8

Sparg Clutch Housing

420659263

$154.99

9

Torx Flange Screw M8 X 16

420440852

$4.12

10

Stator Plate, 420W

420685920

$319.49

10

Stator Plate, 420W

420685920

$319.49

10

Stator Plate, 420W

420685920

$319.49

11

Flywheel, 420W | STD

420296906

$451.49

11

Flywheel, 420W | STD

420296906

$451.49

11

Flywheel, 420W | STD

420296906

$451.49

12

Shim

420627270

$4.12

13

Socket Head Screw M16 X 35

420241545

$14.28

14

Torx Flange Screw M6 X 35

420440274

$1.01

15

Interior Cable Support Ass'y

420251889

$14.30

16

Phillips Screw M4 X 8

420240196

$2.32

17

Ignition Cover

420212227

$190.49

18

Pressure Relief Valve

420656370

$19.19

19

Spring

420939481

$4.99

20

Housing

420256487

$7.41

21

Gasket Ring

420650465

$13.16

22

Plug Screw

420640271

$13.77

23

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

24

O-Ring

420431580

$14.83

25

Torx Flange Screw M6 X 16

420641048

$2.96

26

O-Ring

420430782

$5.39

27

Plug Screw M24X 1.5

420241633

$7.41

28

Gasket

420651203

$35.99

29

Torx Flange Screw M6 X 35

420440274

$1.01

30

Cover

420201390

$38.99

31

Taptite Screw M5 x 12

420941935

$1.59
