10- Main Harness Europe

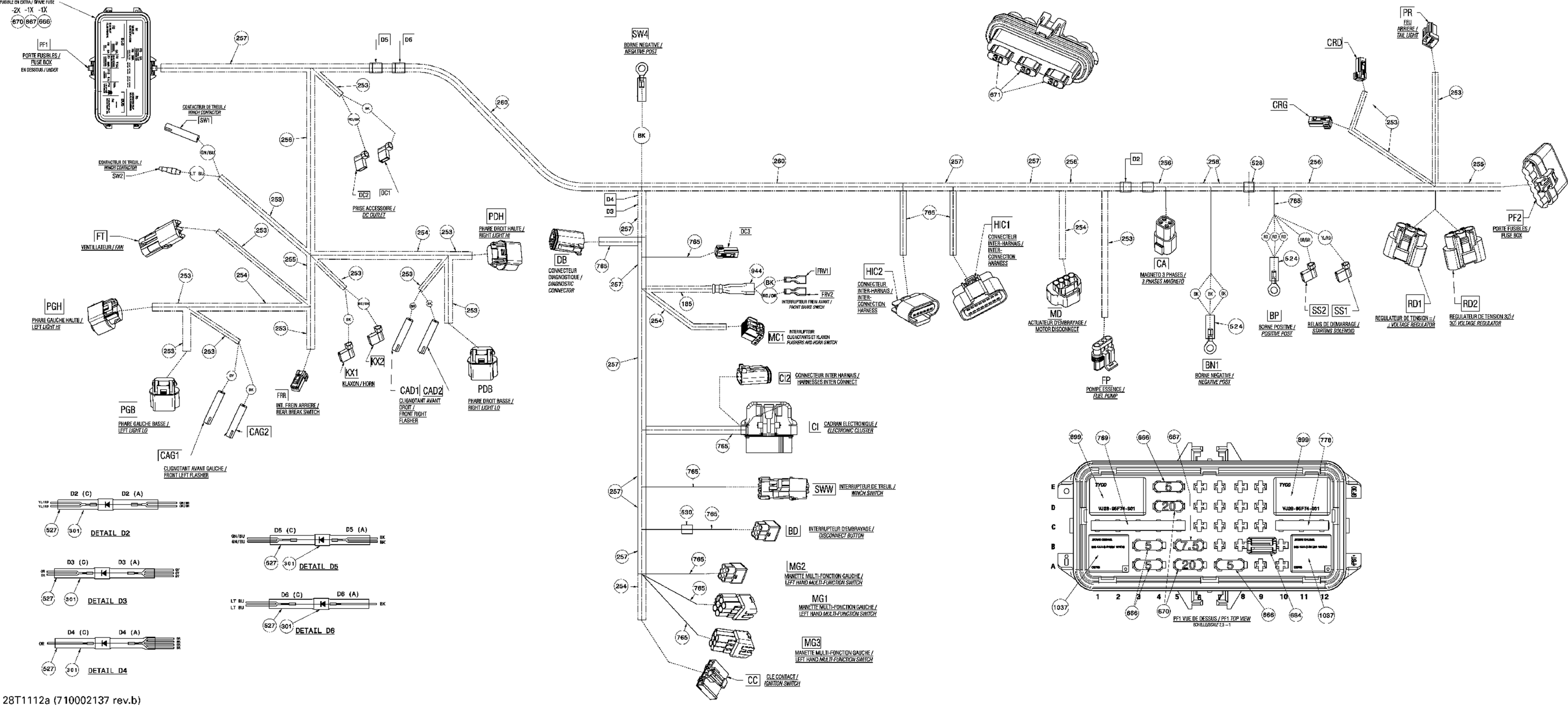

Can-Am Renegade 500 EFI, 2011 10- Main Harness Europe Diagram
#
1
Main Harness Ass'y | Includes 1 to 1041
710002137
Unavailable
33
Wire Seal
278000999
Unavailable
188
Tubing 12 mm
409902000
Unavailable
232
Female Terminal Housing, 3 Circuits | XT Models
278000281
Unavailable
253
Tubing 6 Mm 3000Mm Long
219704425
Unavailable
254
Was 409901700 Tubing (9 mm)
219704399
Unavailable
255
Was 409901800 Tubing (13 mm)
219704400
Unavailable
256
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
257
Was 409901600 Tubing 19mm
219704398
Unavailable
260
Was 515175319 Tubing 22 mm
219704423
Unavailable
301
Diode
409012700
Unavailable
484
Seal
415128501
Unavailable
641
Male Housing, 2 Circuits
710000667
Unavailable
666
Little Fuse, 5 Amperes
710000742
Unavailable
667
Little Fuse, 7.5 Amperes
710000743
Unavailable
670
Little Fuse, 20 Amperes
710000746
Unavailable
702
Female Terminal
710000836
Unavailable
769
Bus Bar
278002165
Unavailable
778
Bus Bar
278002165
Unavailable
899
Relay, 30 AMP | Obsolete. ATV order 515176774
278002168
Unavailable
944
CAP - Call your local BRP dealership
710001350
Unavailable
1037
Relay
715900824
Unavailable
BD
Female Terminal
409012100
Unavailable
BD
Female Housing, 6 Circuits
710000081
Unavailable
BD
Wire Seal
710000402
Unavailable
BD
Cap
710000840
Unavailable
BP
Terminal
710000913
Unavailable
BN1
Terminal
710000913
Unavailable
CA
Sealing Cap
293000052
Unavailable
CA
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
278001477
Unavailable
CA
Male Terminal
515175568
Unavailable
CA
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
278001478
Unavailable
CAD1
Insulated Sheath
278001008
Unavailable
CAD1
Female Terminal
710000421
Unavailable
CAD2
Insulated Sheath
278001007
Unavailable
CAD2
Female Terminal
710000421
Unavailable
CAG1
Insulated Sheath
278001007
Unavailable
CAG1
Female Terminal
710000421
Unavailable
CAG2
Insulated Sheath
278001007
Unavailable
CAG2
Female Terminal
710000421
Unavailable
CC
Female Terminal
710000274
Unavailable
CC
Lock
710000848
Unavailable
CC
Male Housing, 6 Circuits
710000849
Unavailable
CC
Terminal | Canada/Usa
710001635
Unavailable
CI
Plug
515175812
Unavailable
CI
Female Housing, 24 Circuits
515175801
Unavailable
CI
Retainer Block
515175802
Unavailable
CI
Wire Seal
515175803
Unavailable
CI
Female Housing
710000399
Unavailable
CI
Female Terminal
710001131
Unavailable
CI2
Female Terminal
278001665
Unavailable
CRD
Female Terminal
515175231
Unavailable
CRD
Female Housing, 2 Circuits
515175658
Unavailable
CRD
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
CRG
Female Terminal
515175231
Unavailable
CRG
Female Housing, 2 Circuits
515175658
Unavailable
CRG
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
DB
Sealing Cap
293000052
Unavailable
DB
Male Wedge, 6 Circuits
515175678
Unavailable
DB
Female Terminal
278001665
Unavailable
DB
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
Unavailable
DC1
Female Terminal
710000038
Unavailable
DC2
Female Terminal
710000038
Unavailable
DC3
Female Terminal
515175231
Unavailable
DC3
Female Housing, 2 Circuits
515175658
Unavailable
DC3
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
FP
Female Terminal
278001014
Unavailable
FP
Female Housing, 4 Circuits
409209700
Unavailable
FP
Wire Seal
278001013
Unavailable
FP
Female Terminal
710001340
Unavailable
FP
Wire Seal
515176621
Unavailable
FRR
Female Terminal
515175231
Unavailable
FRR
Female Housing, 2 Circuits
515175658
Unavailable
FRR
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
FRV1
Female Terminal
710000082
Unavailable
FRV2
Female Terminal
710000082
Unavailable
FT
Male Terminal
409004300
Unavailable
FT
Female Housing, 2 Circuits
278000217
Unavailable
FT
Wire Seal
278000218
Unavailable
FT
Clip
710000992
Unavailable
HIC1
Seal
710001230
Unavailable
HIC1
Seal
710001233
Unavailable
HIC1
Terminal
710001229
Unavailable
HIC1
Terminal
710001228
Unavailable
HIC1
Housing
710001226
Unavailable
HIC1
Cap
710001225
Unavailable
HIC1
LOCK - Call your local BRP dealership
710001221
Unavailable
HIC2
Housing
710001232
Unavailable
HIC2
Seal
710001230
Unavailable
HIC2
Seal
710001233
Unavailable
HIC2
Terminal
710001229
Unavailable
HIC2
Terminal
710001228
Unavailable
HIC2
Cap
710001225
Unavailable
HIC2
LOCK - Call your local BRP dealership
710001221
Unavailable
KX1
Female Terminal
409010300
Unavailable
KX2
Female Terminal
409010300
Unavailable
MC1
HOUSING - Call your local BRP dealership
710001435
Unavailable
MC1
TERMINAL - Call your local BRP dealership
710001436
Unavailable
MD
Male Housing, 4 Circuits
710000329
Unavailable
MD
Female Terminal
710000335
Unavailable
MD
Wire Seal
710000402
Unavailable
MD
Cap
710000840
Unavailable
MG1
Male Terminal
409011300
Unavailable
MG1
Seal
409012300
Unavailable
MG1
Wire Seal
710000402
Unavailable
MG1
Male Terminal Housing, 6 Circuits
710000835
Unavailable
MG2
Female Terminal
409012100
Unavailable
MG2
Seal
409012300
Unavailable
MG2
Female Housing, 6 Circuits
710000081
Unavailable
MG2
Wire Seal
710000402
Unavailable
MG3
Male Terminal
409011300
Unavailable
MG3
Seal
409012300
Unavailable
MG3
Wire Seal
710000402
Unavailable
MG3
Male Housing Terminal, 6 Circuits
710001446
Unavailable
PDB
TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership
710001142
Unavailable
PDB
Wire Seal
710001427
Unavailable
PDB
Terminal
710001873
Unavailable
PDH
TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership
710001142
Unavailable
PDH
Wire Seal
710001427
Unavailable
PDH
Terminal
710001873
Unavailable
PF1
Fuse Box Base Ass´y
415129856
Unavailable
PF1
Fuse Puller
710000781
Unavailable
PF1
Cap
710000840
Unavailable
PF1
Fuse Cover
710001026
Unavailable
PF1
Foam
278002172
Unavailable
PF1
DECAL FUSE RELAY - Call your local BRP dealership
710001783
Unavailable
PF2
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
PF2
WIRE SEAL - Call your local BRP dealership
278001505
Unavailable
PF2
Housing, 6 Circuits
710000888
Unavailable
PF2
Lock
710000889
Unavailable
PF2
Little Fuse, 30 Amperes
710000747
Unavailable
PF2
Female Terminal
710000890
Unavailable
PF2
Cover
710000897
Unavailable
PF2
Clip
710000992
Unavailable
PGB
TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership
710001142
Unavailable
PGB
Wire Seal
710001427
Unavailable
PGB
Terminal
710001873
Unavailable
PGH
TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership
710001142
Unavailable
PGH
Wire Seal
710001427
Unavailable
PGH
Terminal
710001873
Unavailable
PR
Female Terminal
515175231
Unavailable
PR
Female Housing, 3 Circuits
515175495
Unavailable
PR
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
RD1
Female Terminal
710000877
Unavailable
RD1
Female Housing, 3 Circuits
710000879
Unavailable
RD1
Seal
710000881
Unavailable
RD1
Cap
710000882
Unavailable
RD2
Female Terminal
710000877
Unavailable
RD2
Housing, 3 Circuits
710000880
Unavailable
RD2
Seal
710000881
Unavailable
SS1
Female Terminal
409010300
Unavailable
SS2
Female Terminal
409010300
Unavailable
SW1
Insulated Sheath
278001007
Unavailable
SW1
Female Terminal
710000421
Unavailable
SW2
Insulated Sheath
278001008
Unavailable
SW2
Female Terminal
278002261
Unavailable
SW4
Open Barrel
278000992
Unavailable
SW4
SHRINK TUBING - Call your local BRP dealership
710000482
Unavailable
SWW
Female Terminal
278000223
Unavailable
SWW
Male Housing, 3 Circuits
278000273
Unavailable
SWW
Wire Seal
278000216
Unavailable
SWW
Wire Seal
710000504
Unavailable
SWW
Clip
710000992
Unavailable
