08- Drive System, Rear

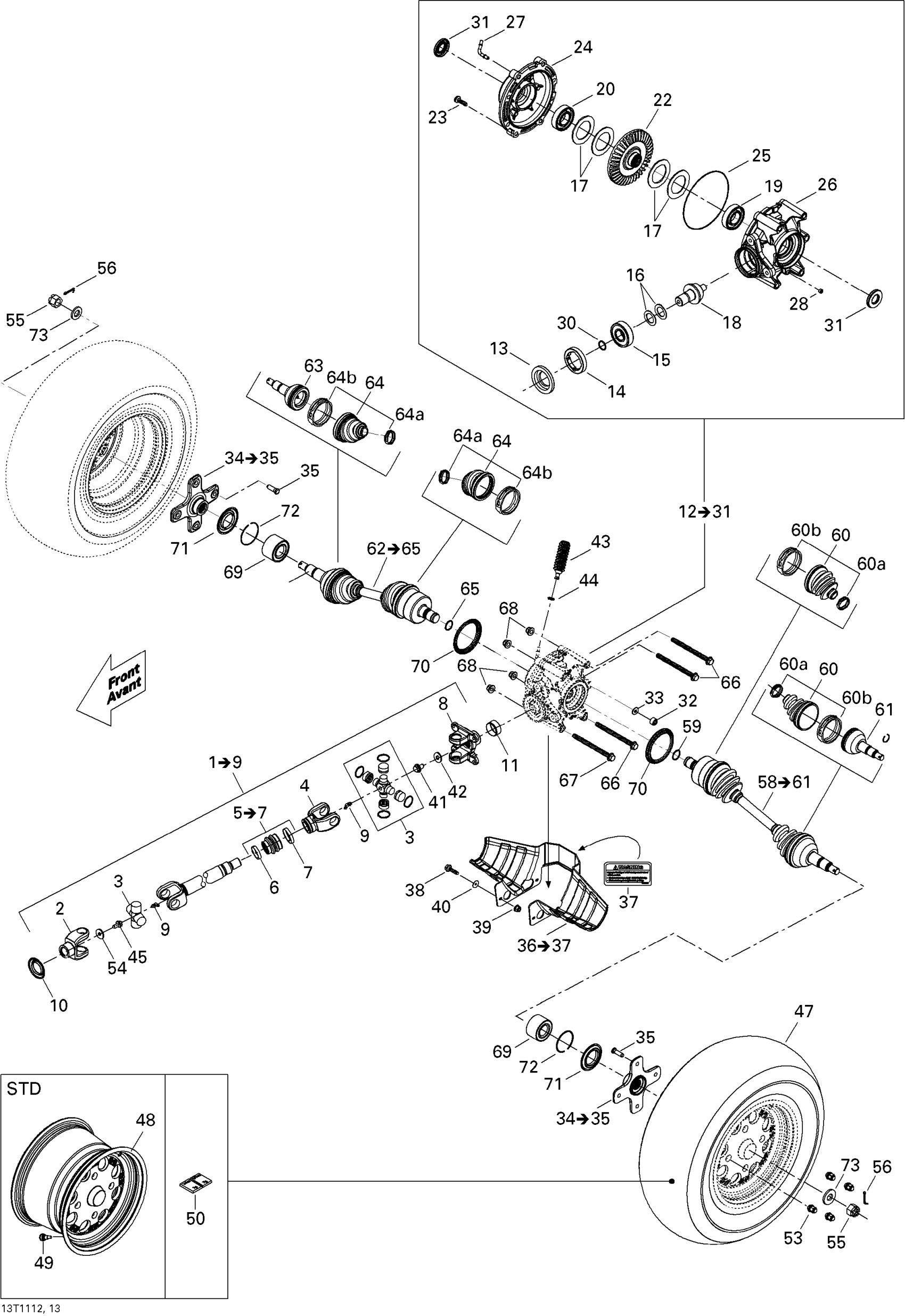

Can-Am Renegade 500 EFI, 2011 08- Drive System, Rear Diagram
#
1
Rear Propeller Shaft Kit | Includes 1 to 9
703500801
Unavailable
2
Fixe Yoke
715900101
Unavailable
3
Universal Joint
715900326
Unavailable
4
SLIDING JOINT - Call your local BRP dealership
705501072
Unavailable
5
Rubber Boot Kit | 4X4 / Includes 3 to 5
703500255
Unavailable
6
Oetiker Gear Clamp 44.0MM | 4X4
293650138
Unavailable
7
Oetiker Gear Clamp 44.0MM | 4X4
293650138
Unavailable
8
DISC JOINT - Call your local BRP dealership
705500526
Unavailable
9
GREASE FITTING - Call your local BRP dealership
705500841
Unavailable
10
Protector
705501123
Unavailable
11
Wear Ring | 4X4
705400036
Unavailable
12
Differential Kit | Includes 10 to 29
703501033
Unavailable
13
Oil Seal | 4X4
705401481
Unavailable
14
Nut
705502059
Unavailable
15
Ball Bearing | 4X4
705500260
Unavailable
16
Pinion Gear Shim .022"
705500075
Unavailable
16
Pinion Gear Shim 1.67 mm
705502061
Unavailable
16
Pinion Gear Shim
705501162
Unavailable
17
Differential Shim 0.02 mm
705502060
Unavailable
18
Ens Engrenage 10/36D *Gear-10/36 Too Kit
703500873
Unavailable
19
Ball Bearing
705502737
Unavailable
20
Ball Bearing
705502738
Unavailable
22
Ens Engrenage 10/36D *Gear-10/36 Too Kit
703500873
Unavailable
23
Screw | 4X4
705401601
Unavailable
24
REAR DIFFERENTIAL COVER - Call your local BRP dealership
705501507
Unavailable
25
Seal | 4X4
705500265
Unavailable
26
PINION REAR COVER - Call your local BRP dealership
705501395
Unavailable
27
VENT VALVE - Call your local BRP dealership | 4X4
705500893
Unavailable
28
Drain Plug | 4X4
705500894
Unavailable
30
O-Ring | 4X4
705500267
Unavailable
31
Oil Seal
705501996
Unavailable
32
Fill Level Plug | 4X4
705500504
Unavailable
33
Copper Washer | 4X4
705500506
Unavailable
34
LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66
705501713
Unavailable
35
Wheel Stud M10 X 1.25 | 2X4
250300055
Unavailable
36
Protector Kit | Includes 38 to 39
703500722
Unavailable
37
WARNING DECAL, TRAILER - Call your local BRP dealership | Europe
704901905
Unavailable
37a
WARNING DECAL-ENGLISH-TRAILER - Call your local BRP dealership
704900766
Unavailable
38
Hex. Flange Screw M6 X 25
207662544
Unavailable
39
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
40
Flat Washer
250200082
Unavailable
41
Hex Flange Screw M12 X 16
250001039
Unavailable
42
Flat Washer M12
250200102
Unavailable
43
Rubber Bellow | 4X4
705400552
Unavailable
44
Oetiker Clamp
293650042
Unavailable
45
Hex Flange Screw M12 X 16
250001039
Unavailable
47
Rear Tire | Europe & International
705500820
Unavailable
47
Tire | North America
705500926
Unavailable
48
RIM_12 INCH X 7,5 - Call your local BRP dealership
705500837
Unavailable
49
Rim Valve With Cap
705400193
Unavailable
49a
Valve Cap
293000110
Unavailable
50
1/2 Oz Weight
219704465
Unavailable
53
Chrome Wheel Nut M10 X 1.25 | XT
250100185
Unavailable
54
Flat Washer M12
250200102
Unavailable
55
Hex. Flange Castellated Nut M18
232291413
Unavailable
56
Cotter Pin
250400036
Unavailable
58
LH Rear - Premium CV Axle | Includes 58a to 63a
705501485
Unavailable
59
CIRCLIP - Call your local BRP dealership
705500845
Unavailable
60
Boot Kit
705500870
Unavailable
60a
OETIKER CLAMP - Call your local BRP dealership
293650204
Unavailable
60b
Oetiker Clamp (27,5mm)
293650203
Unavailable
61
CV JOINT - Call your local BRP dealership
705500980
Unavailable
62
RH Rear - Premium CV Axle | Includes 64a to 69a
705501486
Unavailable
63
CV JOINT - Call your local BRP dealership
705500980
Unavailable
64
Boot Kit
705500870
Unavailable
64a
OETIKER CLAMP - Call your local BRP dealership
293650204
Unavailable
64b
Oetiker Clamp (27,5mm)
293650203
Unavailable
65
CIRCLIP - Call your local BRP dealership
705500845
Unavailable
66
Hex. Flange Screw, M10 X 130
230603046
Unavailable
67
Hex. Flange Screw M10 X 135
230603546
Unavailable
68
Hex. Flange Elastic Nut M10
233201436
Unavailable
69
Ball Bearing
293350150
Unavailable
70
Wear Ring
705501124
Unavailable
71
Wear Sleeve | 4X4
705501121
Unavailable
72
Circlip
293370019
Unavailable
73
Conical Spring Washer M18
250200171
Unavailable
