06- Brakes Europe

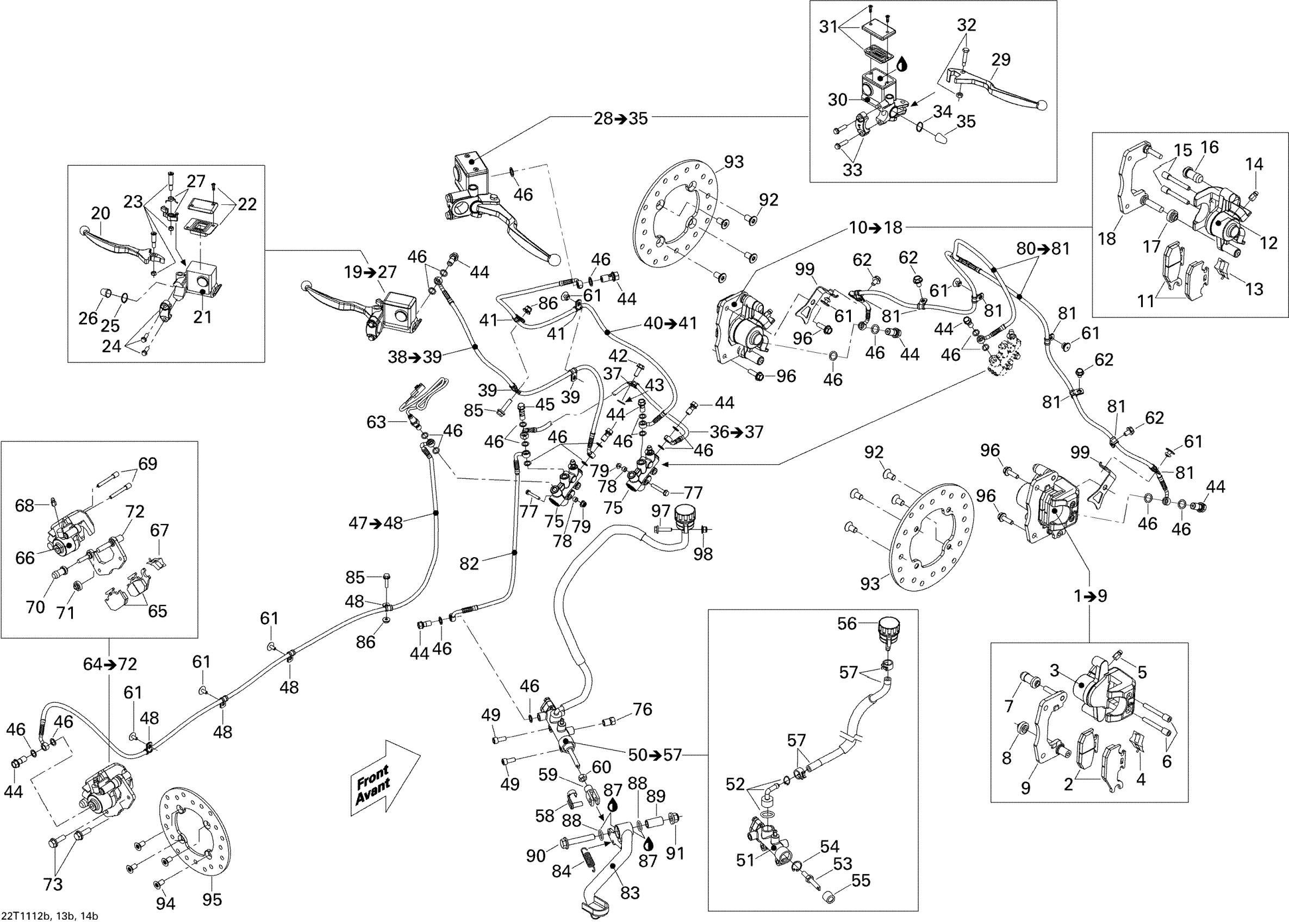

Can-Am Renegade 500 EFI, 2011 06- Brakes Europe Diagram
#
1
RH CALIPER - Call your local BRP dealership | Includes 1 to 9
705600593
Unavailable
2
Brake Pad Kit
705600004
Unavailable
3
Piston Set
705600078
Unavailable
4
Spring
705600079
Unavailable
5
Bleeding Screw
705600080
Unavailable
6
Pin Set (2)
705600081
Unavailable
7
Compression Boot
705600082
Unavailable
8
Compression Boot
705600083
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
LH CALIPER - Call your local BRP dealership | Includes 10 to 18
705600594
Unavailable
11
Brake Pad Kit
705600014
Unavailable
12
Piston Set
705600078
Unavailable
13
Spring
705600079
Unavailable
14
Bleeding Screw
705600080
Unavailable
15
Pin Set (2)
705600081
Unavailable
16
Compression Boot
705600082
Unavailable
17
Compression Boot
705600083
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
LH FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 1 to 9
705600845
Unavailable
20
Lever Arm
705600243
Unavailable
21
PISTON KIT - Call your local BRP dealership
705600152
Unavailable
22
Cap Set
705600084
Unavailable
23
Brake Lever Bolt Kit
705600246
Unavailable
24
BRACKET KIT - Call your local BRP dealership
705600087
Unavailable
25
CIRCLIP - Call your local BRP dealership
705600088
Unavailable
26
COMPRESSION BOOT - Call your local BRP dealership
705600089
Unavailable
27
PARKING KIT, BRAKE LEVER LOCK - Call your local BRP dealership
705600477
Unavailable
28
RH FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 27 to 35
705600956
Unavailable
29
LEVER ARM - Call your local BRP dealership
705600629
Unavailable
30
SWITCH KIT - Call your local BRP dealership
705600086
Unavailable
31
Cap Set
705600084
Unavailable
32
BOLT KIT - Call your local BRP dealership
705600085
Unavailable
33
BRACKET KIT - Call your local BRP dealership
705600087
Unavailable
34
CIRCLIP - Call your local BRP dealership
705600088
Unavailable
35
COMPRESSION BOOT - Call your local BRP dealership
705600089
Unavailable
36
Brake Hose, Front | Includes 36 to 37
705600699
Unavailable
37
Clamp
293650256
Unavailable
38
BRAKE HOSE, FRONT LH - Call your local BRP dealership | Includes 38 to 39
705601054
Unavailable
39
Clamp
293650256
Unavailable
40
BRAKE HOSE, FRONT RH - Call your local BRP dealership | Includes 40 to 41
705600698
Unavailable
41
Clamp
293650256
Unavailable
42
Hex. Flange Screw M6 X 16
210261650
Unavailable
43
Flat Washer
224061121
Unavailable
44
Banjo Bolt (M10 x 1.25 thread)
705600609
Unavailable
45
Banjo Bolt
705600958
Unavailable
46
Copper Washer
705601628
Unavailable
47
BRAKE HOSE, REAR - Call your local BRP dealership | Includes 47 to 48
705600960
Unavailable
48
Clamp
293650256
Unavailable
49
Socket Head Screw M8 X 20, Scotch Grip
250000136
Unavailable
50
Master Cylinder | Includes 36 to 44, STD Model
705600751
Unavailable
51
Piston Set
705600255
Unavailable
52
PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership
705600064
Unavailable
53
Not Available As Spare Part - Friction Washer
Unavailable
54
Circlip
705600068
Unavailable
55
Compression Boot
705600090
Unavailable
56
Oil Tank, Brake Fluid Reservoir
705600182
Unavailable
57
OIL HOUSING HOSE - Call your local BRP dealership
705600754
Unavailable
58
Pin Kit
219702305
Unavailable
59
Yoke
705600100
Unavailable
60
Hex. Nut M8
232081414
Unavailable
61
Pop Rivet 3/16”
390910000
Unavailable
62
Hex. Flange Screw M6 X 10
210261040
Unavailable
63
Brake Switch
705600798
Unavailable
64
REAR CALIPER - Call your local BRP dealership | Includes 55 to 62
705600791
Unavailable
65
LH Brake Pad Kit
705600398
Unavailable
66
Not Available As Spare Part - Friction Washer
Unavailable
67
Spring
705600079
Unavailable
68
Bleeding Screw
705600080
Unavailable
69
Pin Set (2)
705600081
Unavailable
70
Compression Boot
705600082
Unavailable
71
Compression Boot
705600083
Unavailable
72
Not Available As Spare Part - Friction Washer
Unavailable
73
Hex. Flange Screw M8 X 25, Scotch Grip
207582544
Unavailable
75
SPLITTER - Call your local BRP dealership
705600800
Unavailable
76
HEX HEAD PIPE PLUG M10 DIN910 - Call your local BRP dealership
250100122
Unavailable
77
HEX. SCREW M6 X 40 - Call your local BRP dealership
210264080
Unavailable
78
Bushing | DS 650 X
293900104
Unavailable
79
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
80
BRAKE HOSE - Call your local BRP dealership | Includes 80 to 81
705600700
Unavailable
81
Clamp
293650256
Unavailable
82
BRAKE HOSE, REAR - Call your local BRP dealership
705600701
Unavailable
83
BRAKE PEDAL, BLACK - Call your local BRP dealership
705601154
Unavailable
84
Brake Pedal Spring
705600792
Unavailable
85
Hex. Flange Screw M6 X 20
207662044
Unavailable
86
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
87
Synthetic Grease, 400 G
293550010
Unavailable
88
O-Ring
293300144
Unavailable
89
Inner Spacer
705600815
Unavailable
90
Hex. Flange Screw M10 X 55
207605544
Unavailable
91
Hex. Flange Elastic Nut M10
233201414
Unavailable
92
Torx Screw M8 X 16, Scotch Grip
235381646
Unavailable
93
Disk Brake
705600604
Unavailable
94
Torx Screw M8 X 16, Scotch Grip
235381646
Unavailable
95
Disk Brake
705600604
Unavailable
96
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
97
Hex. Flange Screw M6 X 25
207662544
Unavailable
98
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
99
BRACKET - Call your local BRP dealership
705600795
Unavailable
