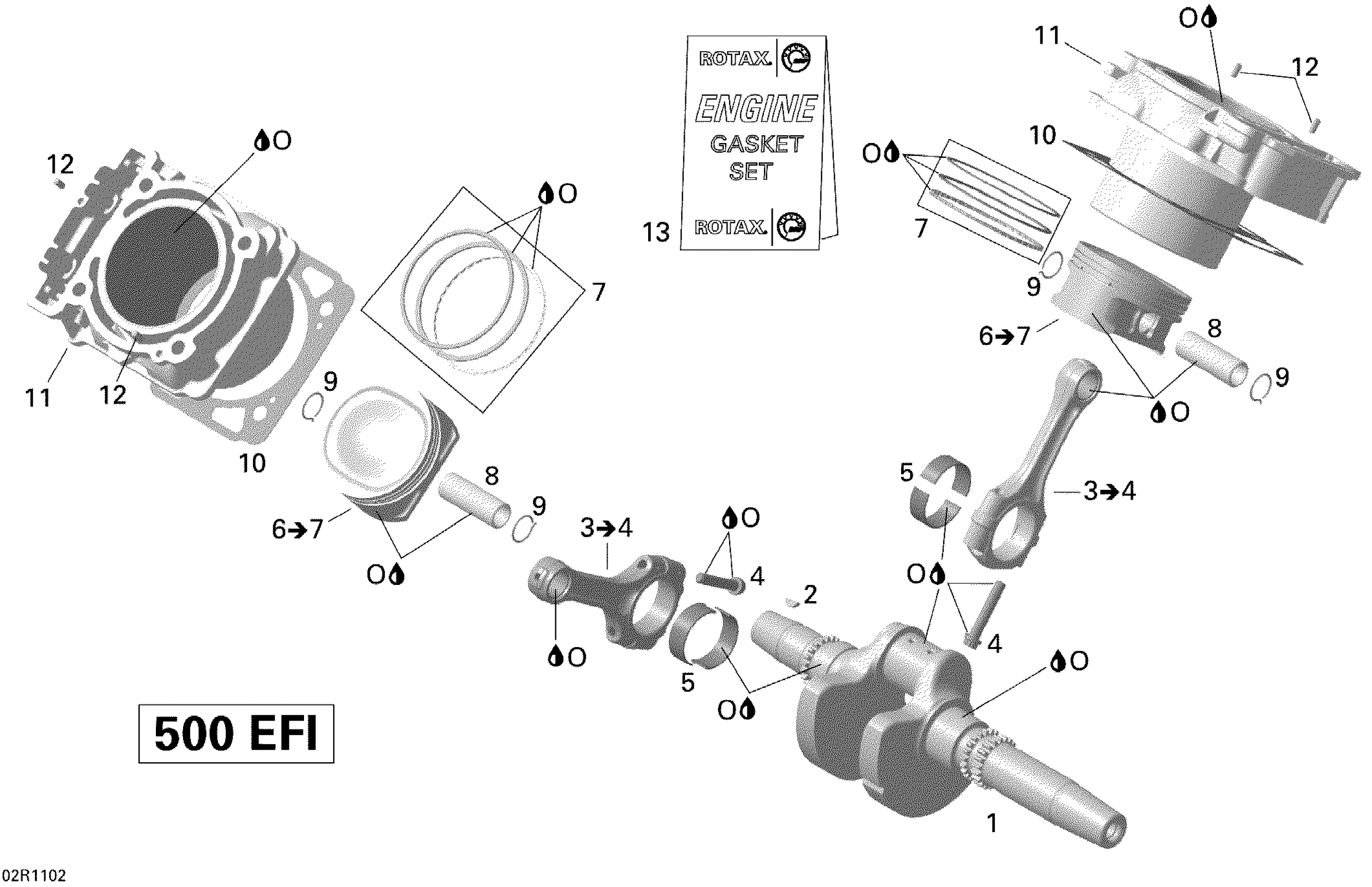

Can-Am Renegade 500 EFI, 2011 Crankshaft, Piston And Cylinder RENEGADE Diagram

#

Description

Price

1

Crankshaft

420219697

$638.99

2

Woodruff Key 4 X 5

420246570

$3.38

3

Connecting Rod Ass’y | Includes 3 to 4

420217455

$255.49

4

Connecting rod Screw M7 X 1

420641794

$15.89

5

Plain Bearing 35 X 38 X 15

420233112

$17.05

6

Piston Ass'y, 81.958 mm | Includes 6 to 7

420684412

$127.49

7

Piston Ring Set | 330HO

420684384

$82.99

8

Piston Pin

420216310

$27.49

9

Piston Circlip

420845540

$4.89

10

Gasket

420630210

$12.71

11

Cylinder With Sleeve

420413211

$414.99

12

Drive Pin 5 X 10

420929650

$1.68

13

Gasket Set, Engine

420684148

$391.99

O

Not Available As Spare Part - Friction Washer

Unavailable
