07- Front Suspension 500 EFI

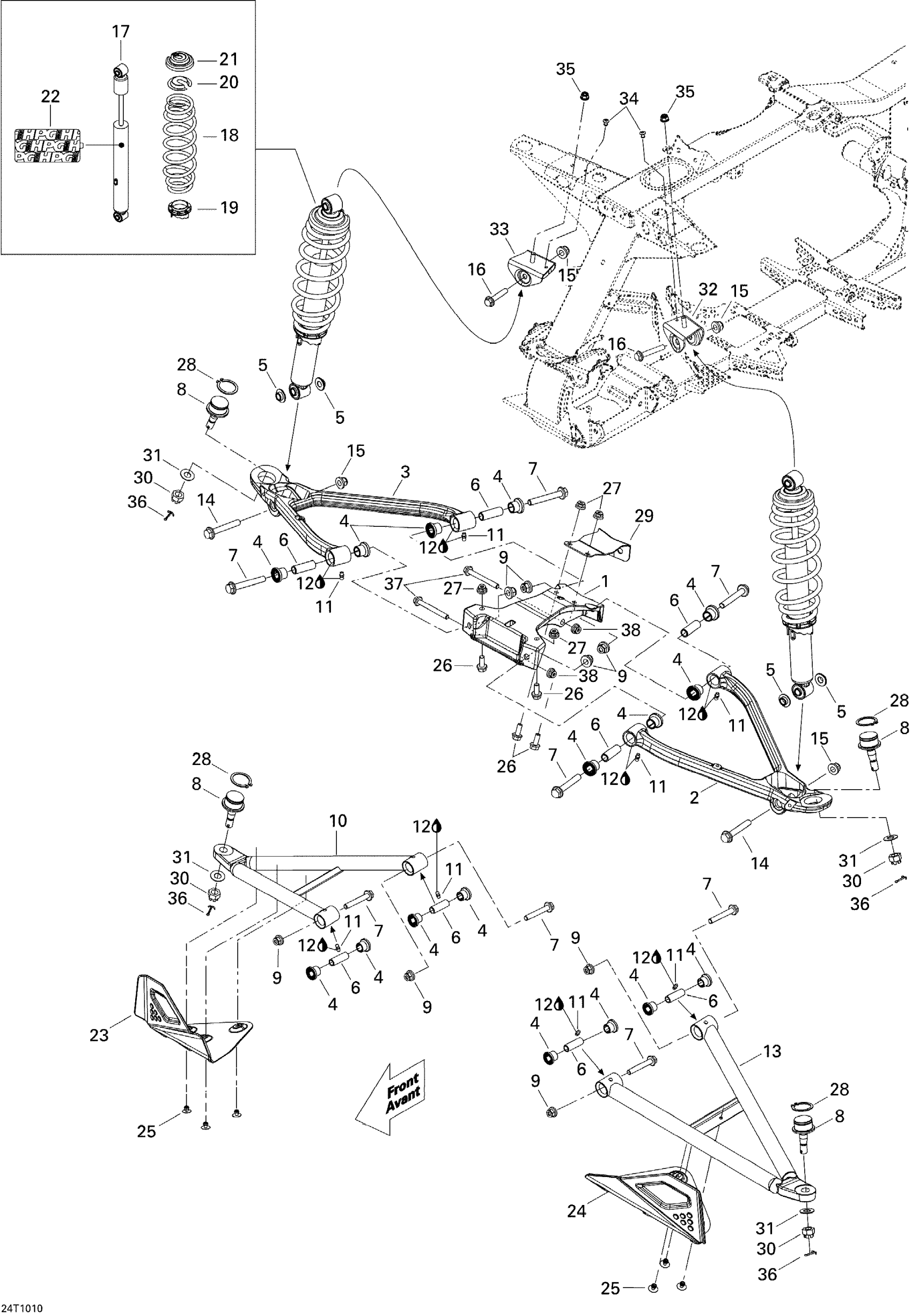

Can-Am Renegade 500 EFI, 2010 07- Front Suspension 500 EFI Diagram
#
1
Upper Arm Bracket
706201360
Unavailable
2
LH Upper Arm
706200763
Unavailable
3
RH Upper Arm
706200764
Unavailable
4
Bushing
706200181
Unavailable
5
SPACER BUSHING - Call your local BRP dealership
706200677
Unavailable
6
Sleeve
706201587
Unavailable
7
Hex. Flange Screw M10 X 70
207607046
Unavailable
8
Ball Joint
706200653
Unavailable
9
Hex. Flange Elastic Nut M10
233201436
Unavailable
10
ARM_SUSPENSION RH ECOAT - Call your local BRP dealership
706201047
Unavailable
11
Grease Fitting
408200700
Unavailable
12
Synthetic Grease, 400 G
293550010
Unavailable
13
ARM_SUSPENSION LH ECOAT - Call your local BRP dealership
706201045
Unavailable
14
Hex. Flange Screw M10 X 65
207606536
Unavailable
15
Hex. Flange Elastic Nut M10
233201436
Unavailable
16
Hex. Flange Screw M10 X 55
207605544
Unavailable
17
Front Shock | 500 EFI
706201146
Unavailable
18
SPRING_COMPRESSION B-176 PAINTED - Call your local BRP dealership | Red
706200775
Unavailable
18
SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership | Yellow
706200829
Unavailable
19
Adjuster Ring
706002356
Unavailable
20
Spring Stopper
706200881
Unavailable
21
Cap
706200785
Unavailable
22
Not Available As Spare Parts
XXX
Unavailable
23
RH Protector
706201670
Unavailable
24
LH Protector
706201669
Unavailable
25
Pop Rivet 3/16" | DS 650 X
293150104
Unavailable
26
Hex. Flange Screw M8 X 20
207682044
Unavailable
27
Hex. Flange Elastic Nut M8
233281414
Unavailable
28
Circlip 32 mm
293370009
Unavailable
29
BRACKET - Call your local BRP dealership
706201014
Unavailable
30
Nut M12
250100099
Unavailable
31
Hardened Washer
706200281
Unavailable
32
LH UPPER ARM BRACKET - Call your local BRP dealership
706201039
Unavailable
33
RH UPPER ARM BRACKET - Call your local BRP dealership
706201040
Unavailable
34
Pop Rivet 3/16"
390402300
Unavailable
35
Hex. Elastic Flange Nut M8
233281416
Unavailable
36
Cotter Pin
211400017
Unavailable
37
Hex. Flange Screw M8 X 70
207687044
Unavailable
38
Hex. Flange Elastic Nut M8
233281414
Unavailable
