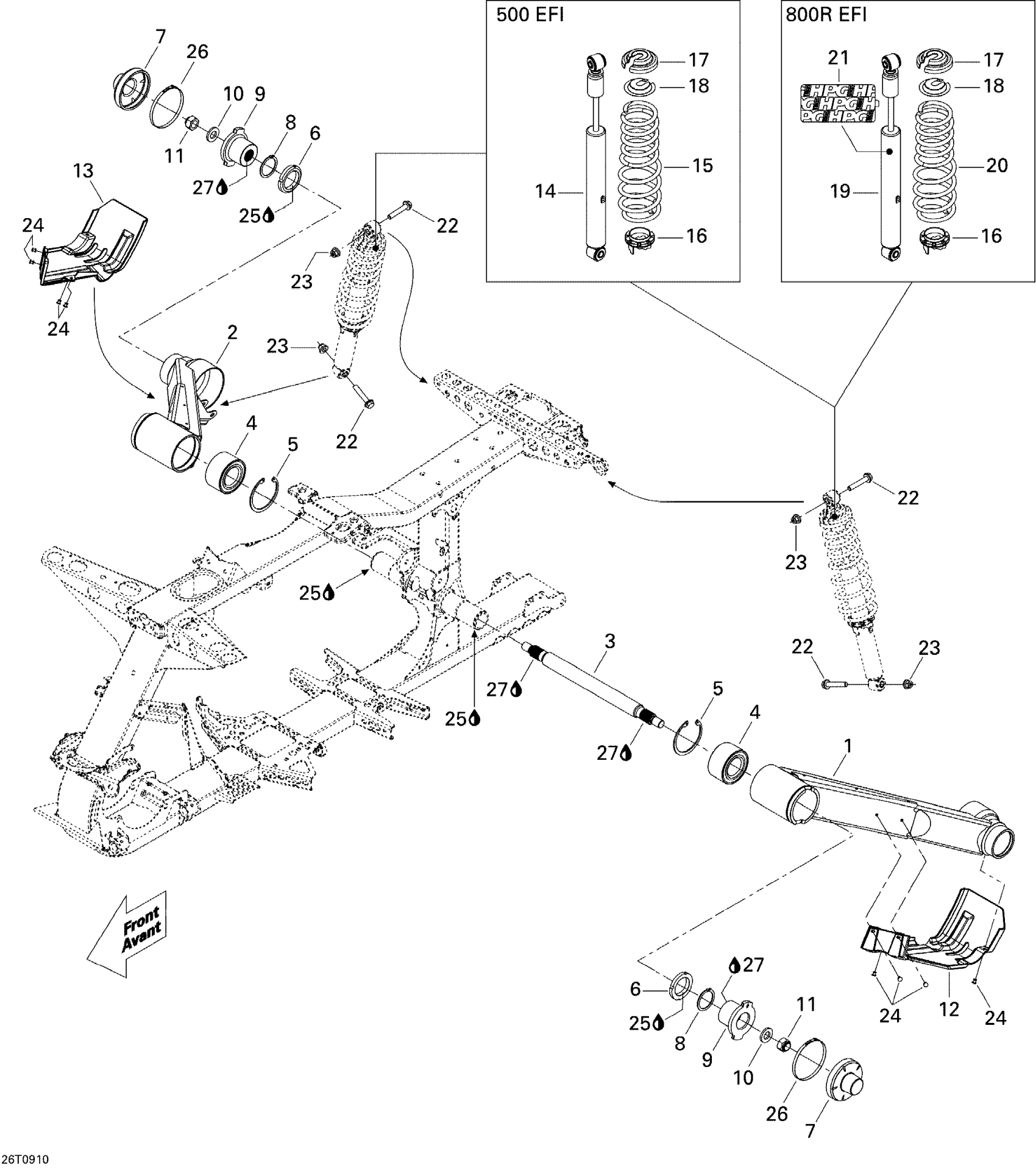

Can-Am Renegade 500, 2009 08- Rear Suspension 500 Diagram
#
Description
Price
1
LH SWING ARM - Call your local BRP dealership
706001191
Unavailable
2
RH SWING ARM - Call your local BRP dealership
706001192
Unavailable
3
Sway Bar
706001078
Unavailable
4
Ball Bearing
293350037
Unavailable
5
Circlip
293370041
Unavailable
6
Nut
706000221
Unavailable
7
Cover
706000749
Unavailable
8
Circlip 45 mm
293370027
Unavailable
9
Lever
706000554
Unavailable
10
Washer
250200045
Unavailable
11
Elastic Stop Nut M18
232591414
Unavailable
12
LH PROTECTOR - Call your local BRP dealership
706000333
Unavailable
13
RH PROTECTOR - Call your local BRP dealership
706000334
Unavailable
14
SHOCK - Call your local BRP dealership
706000537
Unavailable
15
Red Spring | 500 EFI, Red
706000606
Unavailable
15
SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership | 500 EFI, Yellow
706000653
Unavailable
16
Adjuster Ring
706002356
Unavailable
17
Spring Stopper
706200881
Unavailable
18
Cap
706200785
Unavailable
19
Not Available As Spare Parts
XXX
Unavailable
20
Not Available As Spare Parts
XXX
Unavailable
21
Not Available As Spare Parts
XXX
Unavailable
22
Hex. Flange Screw M10 X 55
207605544
Unavailable
23
Hex. Flange Elastic Nut M10
233201414
Unavailable
24
Pop Rivet 3/16" | DS 650 X
293150104
Unavailable
25
Loctite 271, 10 ml
293800005
Unavailable
26
Oetiker Clamp
293650162
Unavailable
27
Loctite 271, 10 ml
293800005
Unavailable
