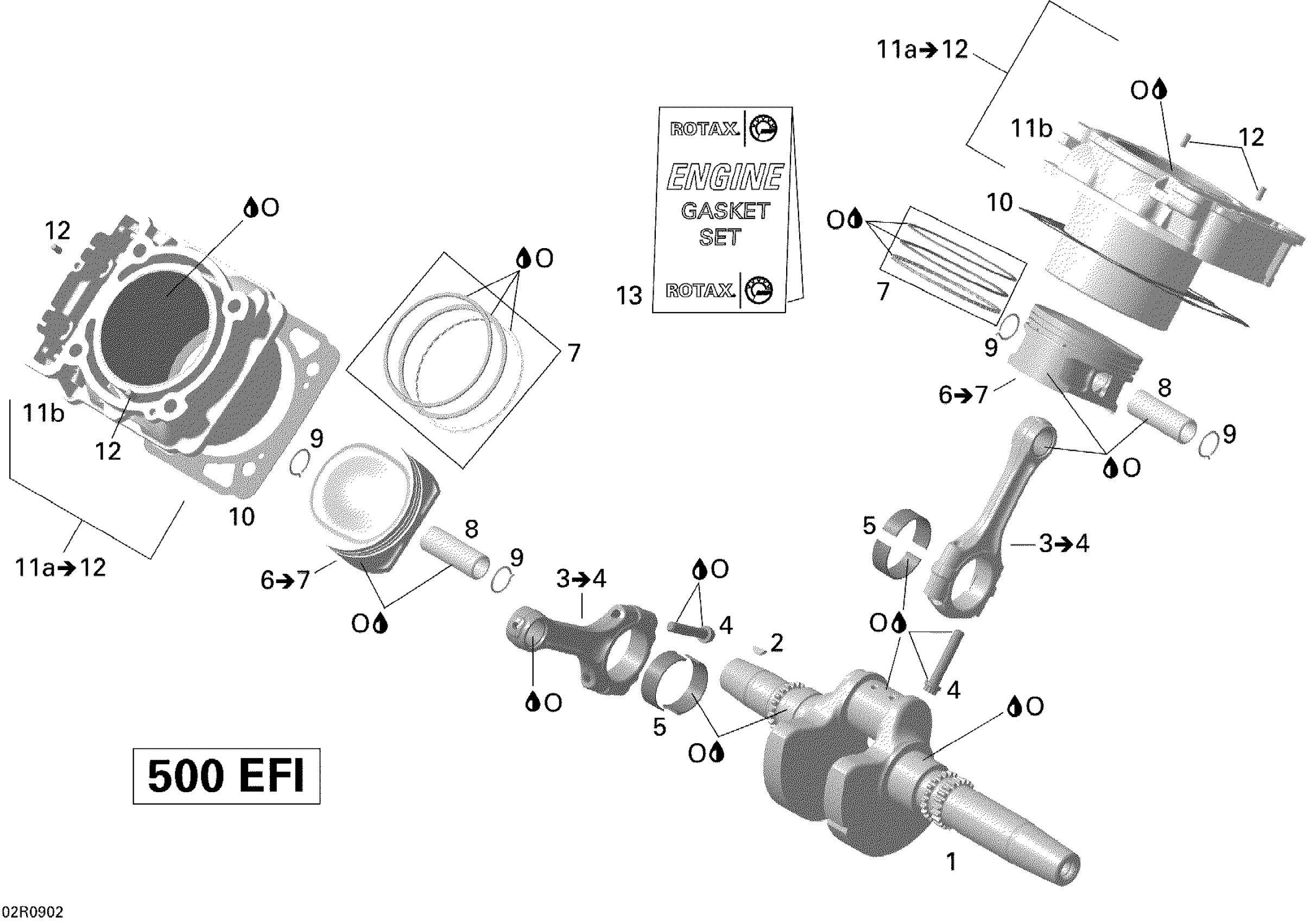

Can-Am Renegade 500, 2009 Crankshaft, Piston And Cylinder Diagram

#

Description

Price

1

Crankshaft

420219697

$669.97

2

Woodruff Key 4 X 5

420246570

$3.29

3

Connecting Rod Ass’y | Includes 3 to 4

420217455

Unavailable

4

Connecting rod Screw M7 X 1

420641794

$12.97

5

Plain Bearing 35 X 38 X 15

420233112

$16.12

6

Piston Ass'y, 81.958 mm | Includes 6 to 7

420684412

$129.97

7

Piston Ring Set | 330HO

420684384

$85.49

8

Piston Pin

420216310

$29.97

9

Piston Circlip

420845540

$4.33

10

Gasket

420630210

$12.34

11a

Cylinder Ass'y | Includes 11a to 12

420613888

Unavailable

11b

Not Available As Spare Part - Friction Washer

Unavailable

12

Drive Pin 5 X 10

420929650

$1.34

13

Gasket Set, Engine

420684148

Unavailable

O

Not Available As Spare Part - Friction Washer

Unavailable
