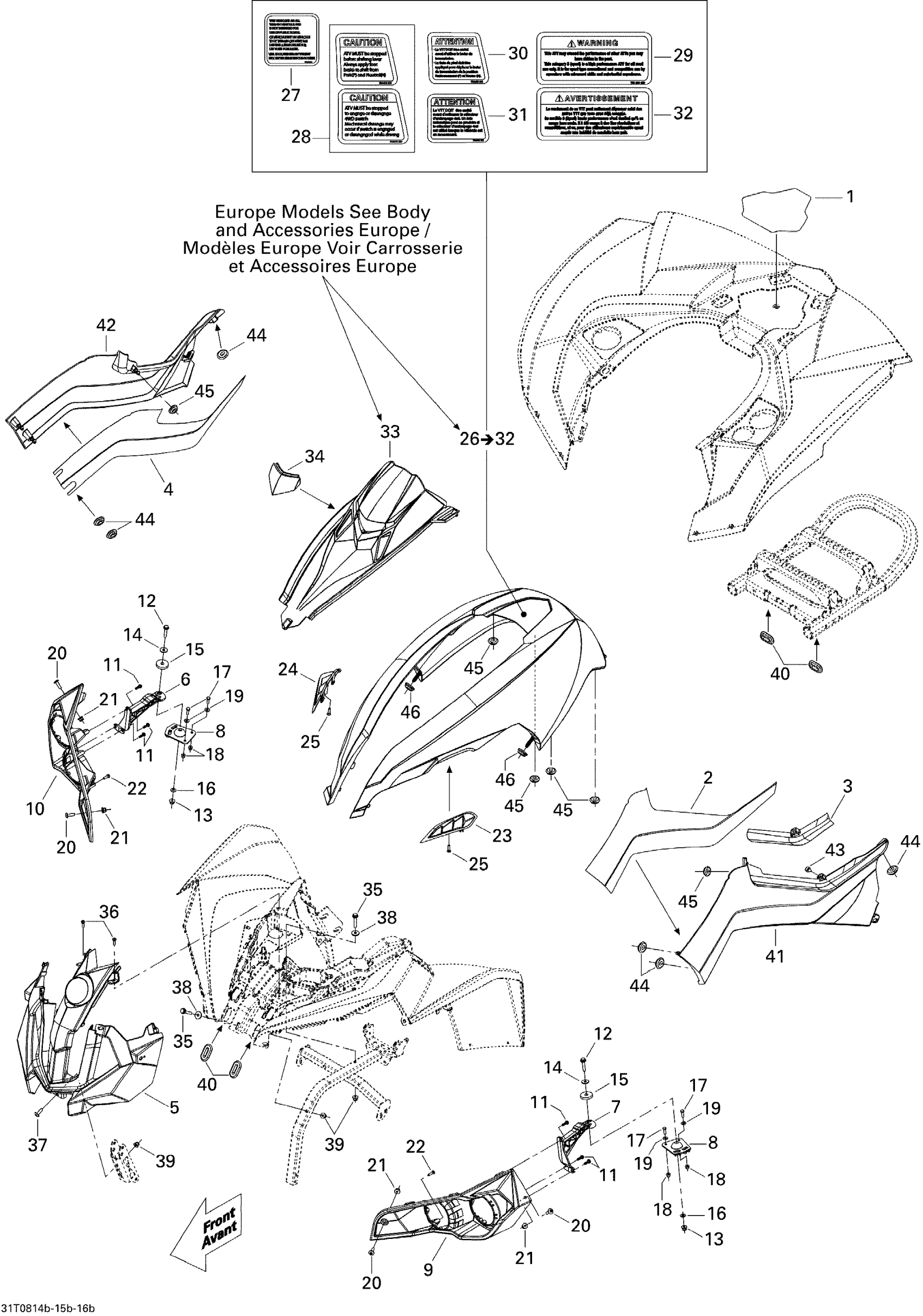

Can-Am Renegade 500, 2008 09- Body And Accessories 2 Diagram
#
1
Rear Carpet
705002343
Unavailable
2
Reflective Sheet
705005620
Unavailable
3
REFLECTIVE SHEET - Call your local BRP dealership
705005617
Unavailable
4
REFLECTIVE SHEET - Call your local BRP dealership
705005623
Unavailable
5
Front Facia
705010673
Unavailable
6
RH Light Support
705002424
Unavailable
7
LH LIGHT SUPPORT - Call your local BRP dealership
705002425
Unavailable
8
Ball Joint
705002405
Unavailable
9
LH Front Facia
705004508
Unavailable
10
RH Front Facia
705004509
Unavailable
11
Hex. Flange Screw K50 X 2.24 X 16
241151640
Unavailable
12
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
13
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
14
Flat Washer
250200082
Unavailable
15
Rubber Washer
293830037
Unavailable
16
Flat Washer
224061121
Unavailable
17
Hex. Screw M5 X 16 | 4X4
207151644
Unavailable
18
Hex. Flange Elastic Nut M5
233251414
Unavailable
19
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
20
Torx Screw M6 x 25
250000284
Unavailable
21
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
22
Torx Screw K50 X 16
250000720
Unavailable
23
LH Grille
705008137
Unavailable
24
RH Grille
705008138
Unavailable
25
Torx Screw K50 X 16
250000720
Unavailable
26
CENTRAL PANEL - Call your local BRP dealership | Includes 26 to 32
715000318
Unavailable
27
Transport Canada Label
704901438
Unavailable
28
Caution Decal, Lever And 4wd Switch | English Version
704901308
Unavailable
29
WARNING DECAL, PERFORMANCE - Call your local BRP dealership
704900089
Unavailable
30
Caution Decal, Shifting Lever | French Version
704901330
Unavailable
31
CAUTION DECAL, 4WD SWITCH - Call your local BRP dealership | French Version
704901332
Unavailable
32
Warning Decal,, Performance
704900105
Unavailable
33
Dashboard
705003556
Unavailable
34
Cap
705002353
Unavailable
35
Hex. Flange Screw M6 X 35
207663544
Unavailable
36
Torx Screw K50 X 16
250000720
Unavailable
37
Torx Screw M6 x 25
250000284
Unavailable
38
Flat Washer
224061201
Unavailable
39
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
40
Oblong Grommet
705003668
Unavailable
41
Black, LH Lateral Panel
705002958
Unavailable
42
Black, RH Side Panel
705002959
Unavailable
43
Rubber Bumper
293830005
Unavailable
44
Oval Washer
705005156
Unavailable
45
Grommet
705003264
Unavailable
46
Oval Washer
705005156
Unavailable
