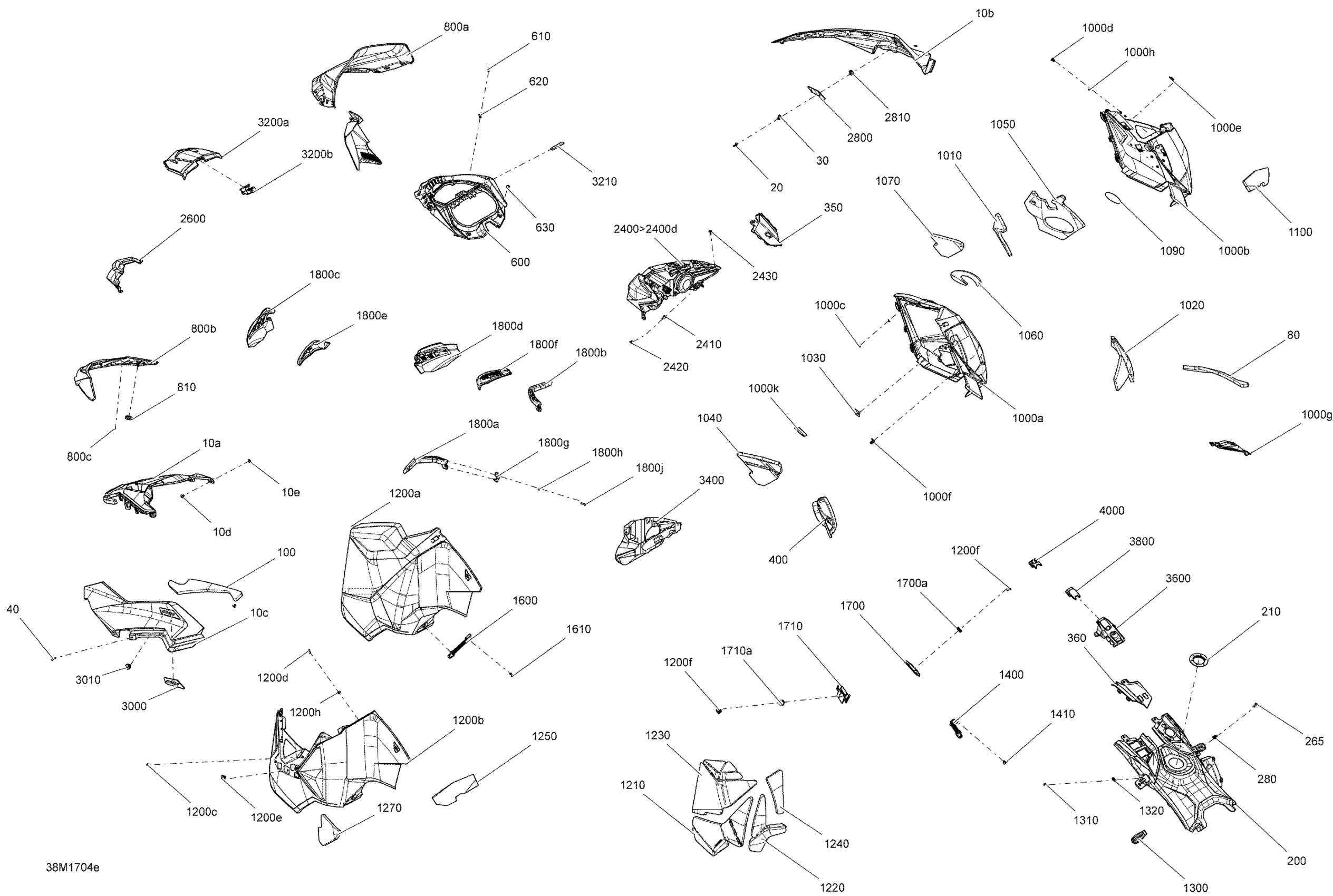

Ski-Doo RENEGADE - 4-STROKE, 2017 09- Hood - Package X Diagram

Deep Black, Center Hood

517304796

$214.99

Orange Crush - Center Hood

517306124

Unavailable

Deep Black, RH Hood

517305239

$199.99

Orange - RH Hood | Package X, Model Orange

517305229

$209.99

Deep Black, LH Hood

517305240

$199.99

Orange Crush - LH Hood | Package X, Model Orange

517305230

$209.99

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Washer

517124300

$0.19

Torx Screw M5 X 20

250000528

$2.11

Panel Nut M5 X 0.8

250000958

$4.23

Torx Screw M5 X 26

250000587

$4.44

RH Rear Hood Foam

517305090

$16.49

LH Rear Hood Foam

517305091

$16.49

Deep Black, Rear Console

517305641

$224.99

Orange Crush - Rear Console | Package X, Model Orange

517306131

$214.99

Console Nut

517304518

$15.29

Torx Truss Screw M6 X 20

250000705

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Deep Black, RH Front Console

517305549

$21.99

Deep Black LH Front Console

517305513

$31.99

Deep Black RH Console

517305061

$28.99

Deep Black, Indicator Support

517305511

$60.99

Torx Screw M5 X 20

250000528

$2.11

Panel Nut M5 X 0.8

250000958

$4.23

Torx Screw M5 X 26

250000587

$4.44

Windshield 235mm | Package X

517304921

$154.49

Enjo Pare-Brise*Windshield Tri | Package X This part replaces 517304922.

860200937

$25.49

SUPPORT - Call your local BRP dealership | Package X, Model Orange

517306179

Unavailable

Push Nut

732610072

$2.19

Grommet

517303756

$4.09

Orange Crush - RH Panel

517306151

$219.99

Black, RH Panel

517305714

$309.99

RH TRIM PANEL - Call your local BRP dealership | Model Orange with Manual Start

517306138

Unavailable

Black, RH Panel Trim

517305058

$249.99

Push Nut

250100158

$2.11

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Rivet Plate

517305109

$4.99

Pin

517305734

$3.49

Pin

517305734

$3.49

Grille

517305715

$28.99

Washer

517124300

$0.19

Bumper Stopper

517305731

$19.99

RH Foam Central

517305793

$19.99

RH Foam Rear

517305801

$19.99

Heat Shield | Europe

517305451

$2.29

RH Foam Upper

517305790

$25.99

RH Foam Lower

517305792

$28.99

Foam

517305795

$19.99

Foam

517305791

$19.99

Rubber Sheet

517305796

$19.49

Foam

517305794

$19.99

Black, LH Panel

517305717

$219.99

PANEL_BODY LH B-337 - Call your local BRP dealership | Model Orange

517306170

Unavailable

Black, LH Flashing Panel

517304805

$189.99

Orange Crush LH Panel Trim

517306160

$184.99

Push Nut

250100158

$2.11

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Rivet Plate

517305109

$4.99

Pin

517305734

$3.49

Pin

517305734

$3.49

Washer

517124300

$0.19

Foam

517305802

$16.49

Foam

517305797

$19.99

Foam

517305798

$19.99

Foam

517305803

$16.49

Foam

517305800

$19.99

Foam

517305799

$13.49

Panel Latch

517305279

$18.99

Hexalob Screw M4 X 10

250000565

$2.11

Weld Nut M4

250100156

$4.34

RH Panel Latch

517304919

$16.49

Pop Rivet 3/16”

293150108

$1.19

LH Panel Latch

517303808

$11.49

Pop Rivet 3/16”

293150108

$1.19

RH Panel Clip Ass'y, Black | Includes 1700 to 1700a

517305724

$16.49

Ring

517305723

$3.49

LH Panel Clip Ass'y, Black | Includes 1710 to 1710a

517305722

$16.49

Ring

517305723

$3.49

Deep Black, LH Arm

517305290

$24.99

Deep Black, RH Arm

517305293

$24.99

LH Deflector, Smoked 60%

517305291

$24.99

RH Deflector, Smoked 60%

517305294

$23.99

Deep Black, LH Cap, SKI-DOO

517305601

$35.99

Orange Crush, LH Cap

517306176

$38.99

Deep Black, RH Cap SKI-DOO

517305602

$35.99

Orange Crush, RH Cap

517306175

$38.99

Clamp

517305296

$4.76

Torx Screw Truss Head K50X20 T20

250000760

$2.11

Torx Screw M5 X 20

250000724

$1.69

Headlamp

517306180

$249.99

Cap

219400070

$18.49

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

Holder Bracket

219800282

$5.89

Spring

219800281

$3.49

Torx Screw M5 X 20

250000528

$2.11

Jack Nut M5

250100035

$6.99

Screw M4 X 16

250000725

$3.49

Headlight Trim Cap

517305010

$37.99

RH AIR DEFLECTOR - Call your local BRP dealership | Package X, Model Orange

517306177

Unavailable

RH Air Deflec.Console, Black 63% Transm. | Package X

517304923

$35.99

Grommet

517302841

$7.89

LH Air Deflec.Console, Black 63% Transm. | Package X

517304924

$35.99

Grommet

517302841

$7.89

Deep Black, Upper Storage Access Cover

517304912

$18.49

Cover Latch

517304917

$12.99

Seal Joint

517305157

$2.39

Deep Black, Trunk

517305095

$21.99

Deep Black, Console Support

517304970

$14.49

Deep Black, Support Console Cap

517305180

$4.99

Deep Black, Support Console Cap

517305148

$4.99
