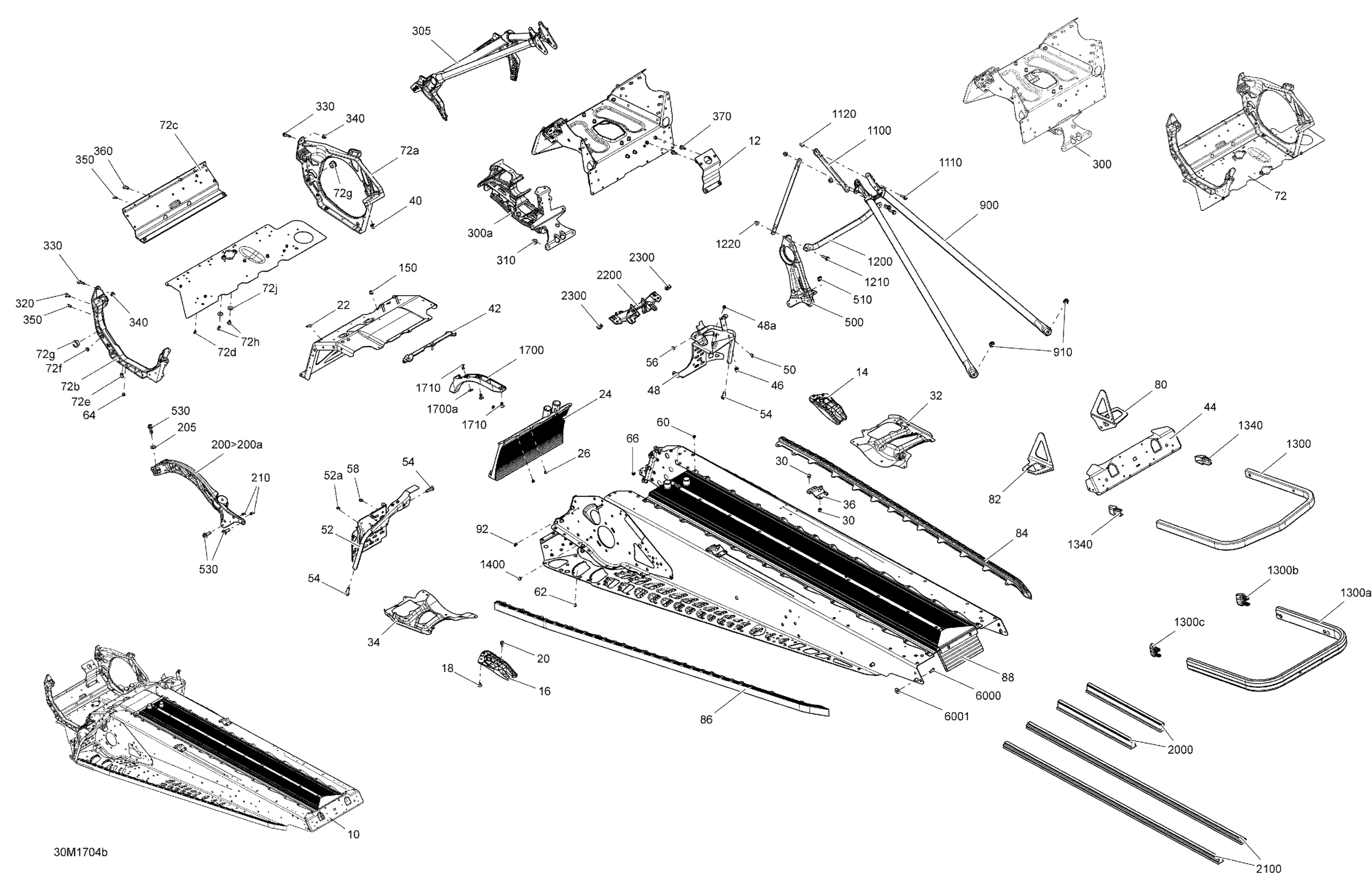

Ski-Doo RENEGADE - 4-STROKE, 2017 Frame - 1200 4-TEC Diagram

ORANGE FRAME RENEGADE - Call your local BRP dealership | Package Adrenaline Frame Orange Crush Models

415130111

Unavailable

BLACK FRAME RENEGADE - Call your local BRP dealership | Renegade Frame Deep Black Models

415130113

Unavailable

BLACK FRAME RENEGADE ENDURO - Call your local BRP dealership | Package Enduro Frame Deep Black Models

415130114

Unavailable

MAG Engine Support

518325371

$73.10

RH Deflector, Black Polypropylene

518325782

$11.42

LH Deflector, Black Polypropylene

518325783

$11.42

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

Adhesive Patch

518325560

$4.21

Front Radiator Ass'y | Includes 10a to 10b

518327907

$502.21

Rivet Avibulb 3/16

293150203

$0.28

Hemlock Rivet, 6.5 mm

293150119

$3.88

Hemlock Rivet, 6.4 mm

293150174

$6.24

RH Reinforcement, Running Board

518326937

$24.60

LH Reinforcement, Running Board

518326938

$24.60

RH Rear Base

518325973

$17.88

LH Rear Base | Includes 10v to 10x

518325974

$17.88

Insert

293450275

$11.36

Seal

518326656

$8.18

Rear Cap

518327105

$20.12

Insert

293450275

$11.36

RH Stirup | Includes 10p to 10q

518328942

$155.94

Avex Rivet

390909200

$0.28

Insert M5 X 0.8

293450268

$1.90

LH Stirup | Includes 10s to 10t

518328528

$155.94

Avex Rivet

390909200

$0.28

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81

Full Moon Dart 5 mm

293730042

$2.06

Insert M5 X 0.8

293450268

$1.90

Rivet Avibulb 3/16

293150203

$0.28

Avex Rivet

390909100

$0.28

Stavex Rivet

293150144

$0.75

Henrob Rivet

293150146

$1.87

Hemlock Rivet, 6.5 mm

293150119

$3.88

Hemlock Rivet, 6.4 mm

293150174

$6.24

Module E

518328947

$880.57

RH Side Member

518326328

$252.21

LH Side Member

518326330

$252.21

Front Member

518326198

$58.18

Stavex Rivet

293150144

$0.75

Hemlock Rivet 6.5 mm

293150120

$7.01

Hemlock Rivet, 6.5 mm

293150119

$3.88

Leg Cushion

505073317

$5.75

Torx Truss Screw M6 X 10

250000349

$7.09

Flat Washer 6 mm

234062410

$0.73

Rh Suspension Bracket

518326954

$35.79

LH Suspension Bracket

518326955

$36.54

RH Roller

518327093

$76.99

LH Roller

518327094

$76.99

LH Roller

518328429

$170.12

Rear Radiator Ass'y, 137" | SPORT

518326641

$679.07

Stavex Rivet

293150144

$0.75

Rivet Avibulb 3/16

293150203

$0.28

Stavex Rivet

293150144

$0.75

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Brace Ass'y | Includes 200 to 200a

518327392

$179.82

Conical Spring Washer M8

234281474

$1.43

Pop Rivet 3/16”

390407200

$0.64

Cross Member S Module | Includes 300a to 300b

518328320

$445.49

Front Suspension Support

518327487

$259.67

Front Member

518327565

$306.69

Hex. Flange Elastic Nut M8

233281414

$1.31

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.15

Hex. Flange Screw M6 X 25

207662544

$0.61

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Monobolt Rivet, 4.8 mm

293150191

$0.93

Monobolt Rivet 6.4

293150182

$2.82

Hex. Flange Screw M6 X 16

207661644

$0.70

Black Dart 5 mm

293730053

$4.28

Driven Pulley Support This part replaces 518327133.

518327460

$99.22

Hex. Flange Elastic Nut M8

233281414

$1.31

Hex. Flange Screw M8 X 25, Nylon

250000351

$2.00

Rear Member

518326559

$237.28

Hex. Flange Elastic Nut M8

233281414

$1.31

Upper Lateral Column Support

518325114

$20.12

Hex. Flange Screw M6 X 20

207662044

$1.91

Elastic Flange Nut M6 X 1.0

233261416

$2.00

Center Column Support

518326657

$17.88

Hex. Flange Screw M6 X 25

207662544

$0.61

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Black Rear Bumper 137"

518325481

$150.72

Black Rear Bumper | Europe Models

518326414

$114.15

Black RH Cap

520000965

$8.70

Black LH Cap

520000964

$8.70

BLACK CAP - Call your local BRP dealership | Except Package Iron Dog

520000840

$7.45

Black, Dart 8 mm

293730047

$2.07

Black, Dart 10 mm

293730060

$4.28

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$17.13

Washer

517124300

$0.18

Pop Rivet 3/16”

293150108

$1.19

Tunnel Prot. - Call Your Local BRP Dealership This part replaces 860200267.

860200802

Unavailable

Tunnel Prot. - Call Your Local BRP Dealership This part replaces 860200267.

860200802

Unavailable

Sub A Support

518327145

$76.84

Panel Nut M5 X 0.8

250000958

$4.00

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

Flat Washer

224061201

$1.27
