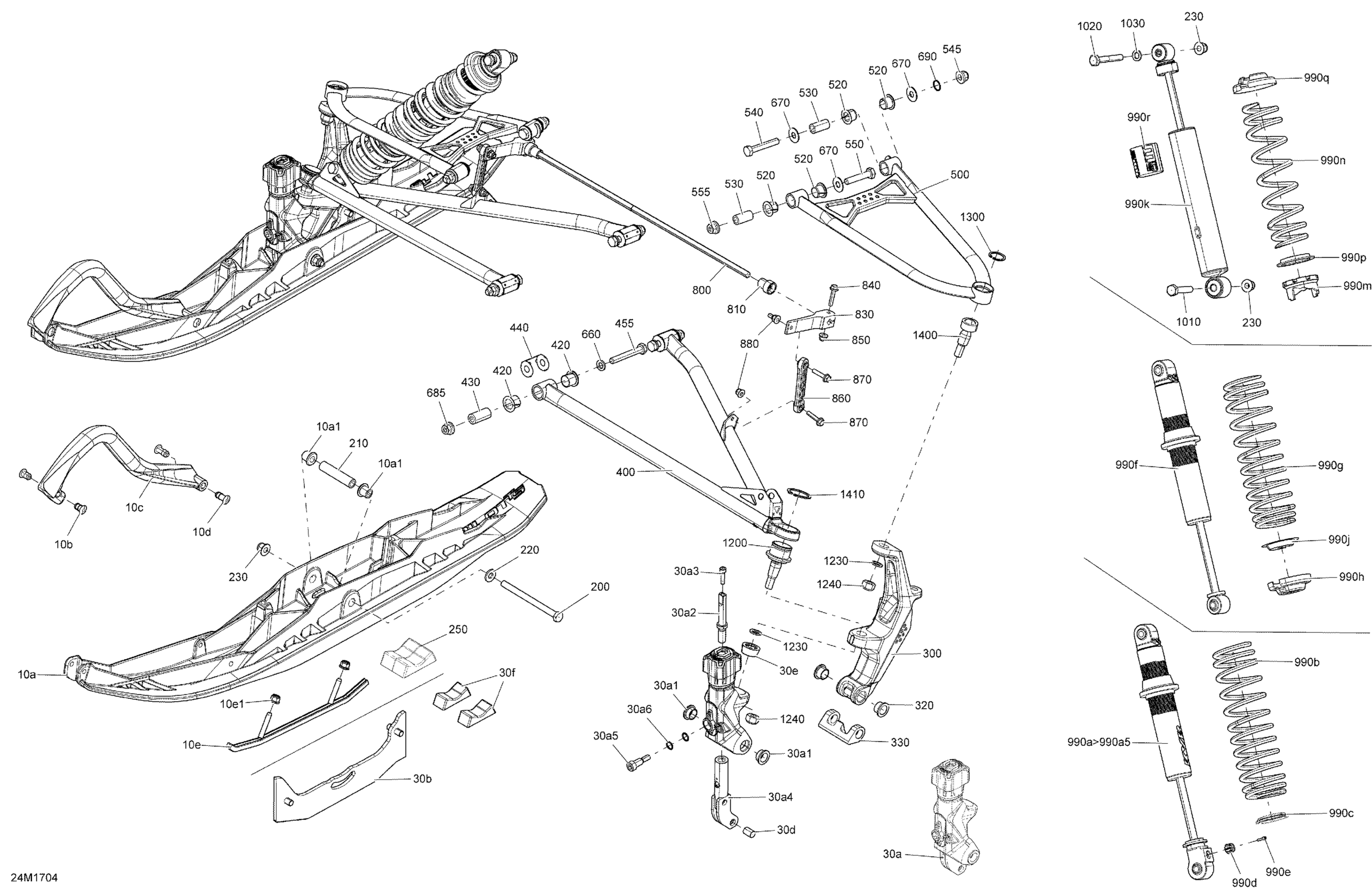

Ski-Doo RENEGADE - 4-STROKE, 2017 Front Suspension And Ski - All Models Diagram

#

Description
Price

10a

Deep Black, RH Pilot 5.7 Ski

505072855

$155.94

10a

Deep Black, LH Pilot 5.7 Ski

505072854

$170.12

10a

Deep Black, RH Ski Pilot TS | Included 20a to 20a.1

505074830

$165.64

10a

Deep Black, LH Ski Pilot TS | Included 10a to 10a.1

505074829

$161.16

10a

Black, Ski

505073227

$170.12

10a1

Ski Bushing

505071781

$14.90

10b

Retainer 17mm long

505071812

$4.30

10c

Black, Handle

505070963

$34.30

10c

Black, Handle

505072976

$34.30

10d

Retainer 23mm Long

505072133

$4.88

10e

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$126.09

10e1

Hex. Flange Elastic Nut M8

233281414

$1.31

30a

Black LH Support | Includes 30.001 to 30.001a

505073789

$341.76

30a

Black RH Support | Includes 30.001 to 30.001a

505073792

$341.76

30a1

Bushing

505073773

$23.10

30a2

Shaft

505073771

$39.52

30a3

Socket Head Screw M6 X 25

250000925

$1.96

30a4

Tip

505073761

$70.12

30a5

Screw

505073767

$3.15

30a6

O-Ring

293300013

$6.54

30b

Carbide Runner Kit, Ajustable TS Ski

860201178

$242.51

30d

Pin

505073782

$8.66

30e

Black, Rubber Grommet

505073772

$8.70

30f

Ski Stopper

505073788

$12.24

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

210

Spacer

506133300

$19.37

220

Washer

503192496

$0.73

230

Hex. Flange Elastic M10 x 1.5

233201464

$7.09

250

Ski Stopper

505072594

$17.13

300

Black LH Ski Leg

505073807

$229.82

300

SKI-LEG MACHINED - Call your local BRP dealership

505073867

Unavailable

300

Black RH Ski Leg

505073808

$229.82

300

SKI LEG - Call your local BRP dealership

505073868

$207.43

320

Leg Bushing

505072690

$5.75

330

Leg Stopper

505073779

$12.27

400

Black, RH Lower Arm

505072664

$184.30

400

RH Lower Arm 42", Black Epoxy

505073426

$184.30

400

Black, LH Lower Arm

505072665

$184.30

400

LH Lower Arm 42", Black Epoxy

505073420

$184.30

420

Bushing

505072208

$3.04

430

Sleeve

505072209

$13.96

440

Wear Plate

505072634

$4.31

455

Screw Hex. M10 X 70

250001024

$2.00

500

LH Upper Arm 42", Black Epoxy

505073412

$138.03

500

Black LH Upper Arm, 42"

505073462

$138.03

500

RH Upper Arm 42", Black Epoxy

505073416

$138.03

500

Black RH Upper Arm, 42"

505073463

$138.03

520

Bushing

505072250

$3.04

530

Sleeve

505072143

$8.36

540

Screw Hex. M10 X 60

250001023

$2.00

545

Hex. Flange Elastic Nut M10

250100165

$0.81

550

Screw Hex. M10 X 50

250001022

$1.63

555

Hex. Flange Elastic Nut M10

250100165

$0.81

660

Washer

503189564

$0.70

670

Washer

505072392

$4.51

685

Hex. Flange Elastic Nut M10

250100165

$0.81

690

O-Ring

505072448

$2.18

800

Stabilisator

505072602

$70.12

810

Bushing

505072064

$2.15

830

Stabilisator Lever

505072394

$15.64

840

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.15

850

Hex. Flange Elastic Nut M6

233261466

$1.91

860

Sway Bar Double Joint Link

505072204

$18.63

870

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.15

880

Hex. Flange Elastic Nut M6

233261466

$1.91

990a>990a5

Front Shock | Includes 1 to 12

505073555

$591.01

990a>990a5

Front Shock | Includes 1 to 12

505073555

$591.01

990a>990a5

Front Shock

505073702

$591.01

990a1

O-Ring

414888312

$15.64

990a2

Piston Ring

503189308

$75.34

990a3

Air Valve

505070398

$17.13

990a4

Screw | Not Shown

505070399

$3.88

990a5

O-Ring

505070400

$4.25

990b

Deep Black, Spring

505072761

$49.22

990c

Spring Stopper

503194270

$16.39

990d

Adjustment Knob

505072753

$2.01

990e

Allen Screw M3 X 0.5 X 10

250000644

$2.00

990f

Front Shock | Europe

505073699

$403.70

990f

Front Shock | Europe

505073699

$403.70

990f

Front Shock | Europe

505073699

$403.70

990f

Front Shock | Europe

505073699

$403.70

990g

Deep Black, Spring | Europe

505073332

$64.90

990g

Deep Black, Spring

505072528

$64.90

990g

Deep Black, Spring | Europe

505073332

$64.90

990g

Deep Black, Spring | Europe

505073332

$64.90

990h

Spring Stopper

706200881

$11.82

990h

Spring Stopper

706200881

$11.82

990h

Spring Stopper

706200881

$11.82

990h

Spring Stopper

706200881

$11.82

990j

Cap

706200785

$4.28

990j

Cap

706200785

$4.28

990j

Cap

706200785

$4.28

990j

Cap

706200785

$4.28

990k

Front Shock

505073180

$152.96

990m

Adjustment Cam

505073625

$11.82

990n

Deep Black, Spring

505073265

$64.90

990p

Spring Guide

503187500

$8.46

990q

Spring Stopper

706200881

$11.82

990r

Shock Decal "Mc"

516005535

$9.93

1010

Hex Screw M10 X 1.5 X 55

207005554

$7.09

1020

Hex. Screw M10 X 1.5 X 65

207006544

$2.63

1030

Washer

503189564

$0.70

1200

Ball Joint

505073636

$48.48

1230

Washer

503192491

$4.25

1240

Hex Elastic Nut M12 X 1.25

232521464

$2.00

1300

Circlip

293370070

$6.81

1400

Upper Ball Joint

505072913

$67.88

1410

Circlip

293370035

$2.48

6000

Washer

503192496

$0.73

6001

Hex. Flange Elastic M10 x 1.5

233201464

$7.09

6002

Ski Stopper

505072594

$17.13

6003

Hex. Flange Elastic M10 x 1.5

233201464

$7.09
